The Six Degrees of

Radius™

Vinyl Flooring

Radius™ Vinyl Flooring options include premium LVT planks and tiles in designer-inspired colors and patterns to provide appealing design elements in any setting. The solid construction and durable finish provide long lasting performance for the lifetime of the flooring. Radius™ precision cut planks and tiles allow for tighter seams, easy installation and flexible design options. Our resilient wear layer, topped with a UV-cured ceramic-reinforced polyurethane finish, provides maximum durability while ensuring long lasting beauty without the use of an on-site finish.

  • A designer-inspired palette of colors and patterns, all at a single price point
  • Enhanced performance and durability made possible by the addition of our Ceramic Reinforced Urethane (CRU)
  • A lower maintenance flooring option which does not require a finish
  • An eco-friendly product made from locally sourced raw materials
  • Simple glue down installation allows for greater pattern/ design flexibility
  • Readily available…made and inventoried in the USA!
radius hallway shot

degreeMarkTechnical

Features

  • Easy to Maintain
  • Qualifies for LEED® Credits
  • Floor Score® Certified
  • Contains EnviroSD, a Safe and Effective Anti-Bacterial Agent
  • Ceramic-Reinforced UV-Cured Finish
  • Extremely Durable
  • Excellent Indentation Resistance
  • Excellent Chemical Resistance
  • Excellent Slip Resistance
  • 100% Recyclable
  • Participates in the mindful MATERIALS library

Warranty

  • 10-Year Commercial Warranty
  • 20-Year Residential Warranty
Download Warranty

RADIUS™ PLANK SPECIFICATIONS

  • Nominal Dimensions: 7 1/8″ × 47 1/4″ × 3 mm plank
  • Finish: Embossed 12 mil
  • Quantity Per Carton: 15 planks (7 1/8″ × 47 1/4″)
  • Sq. Ft. Per Carton: 34.84 sq. ft./carton

RADIUS™ TILE SPECIFICATIONS

  • Nominal Dimensions: 12″ × 24″ × 3 mm tile
  • Finish: Embossed 12 mil
  • Quantity Per Carton: 18 tiles (12″ × 24″)
  • Sq. Ft. Per Carton: 36 sq. ft./carton
Download Technical Data/Installation Instruction Sheet Download Residential Maintenance Sheet Download Commercial Maintenance Sheet Download CSI Formatted Specifications Download GreenGuard Gold Certification

TEST INFORMATION

  • ASTM F 1700 – Solid Vinyl Tile: Class III, Type A & B
  • ASTM E 648 – Critical Radiant Flux: Class I, > .45 W/cm2
  • ASTM E 662 – Smoke Density: Pass
  • ASTM D 2047 – Slip Resistance: > 0.60
  • ASTM F 970 – Static Load Limit: 250 PSI, < .005″Indentation
  • ASTM F 925 – Chemical Resistance: Excellent (chart available)
  • ASTM F 1515 – Light Stability: Pass
GreenGuard Gold Icon EnviroSD Icon

degreeMarkInstallation & Maintenance Products

Click to View Products
Six Degrees Icon
Plank Internal Structure Diagram Plank Internal Structure Diagram
Radius Floor
Radius Floor
Radius Floor
Download Full Product Brochure

degreeMarkRadius™Tiles

12″ × 24″

Larger View Room Scene RT269_C02 Perry Vintage Room Scene RT269_C02 Perry Vintage and RP314_C07 Lakeview
RT269_C02

RT269_C02Perry Vintage

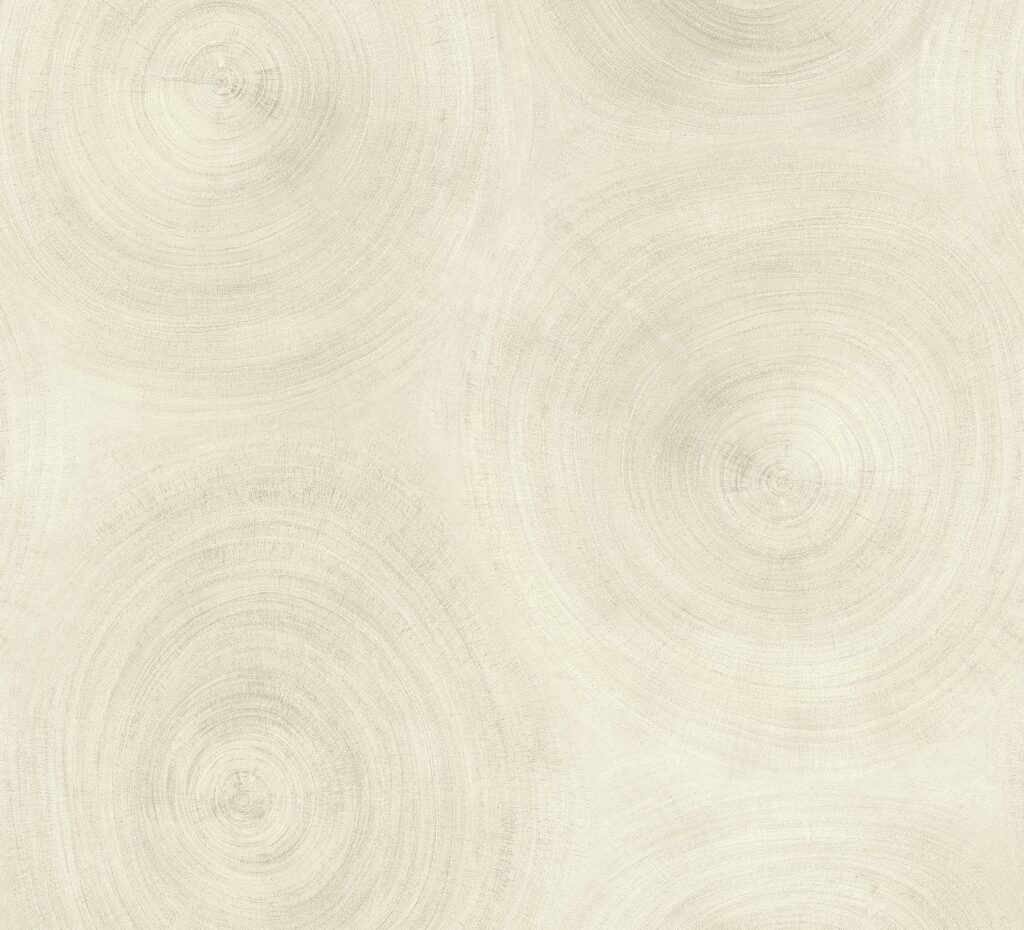

Larger View Room Scene RT317_C05 Hays Beige Room Scene RT317_C05 Hays Beige 2 Room Scene RT317_C05 Hays Beige and RT317_C06 Hughes Gray
RT317_C05

RT317_C05Hays BeigeCrossover to Compass Richmond CT317_05

Larger View Room Scene RT315_C02 Eagle Point Room Scene RT315_C02 Eagle Point
RT315_C02

RT315_C02Eagle PointCrossover to Compass Detroit CT315_C02

Larger View Room Scene RT362_C11 Stearns Slate and RP330_C02 Woodland
RT362_C11

RT362_C11Stearns Slate

Larger View Room Scene Room Scene RT317_C05 Hays Beige and RT317_C06 Hughes Gray

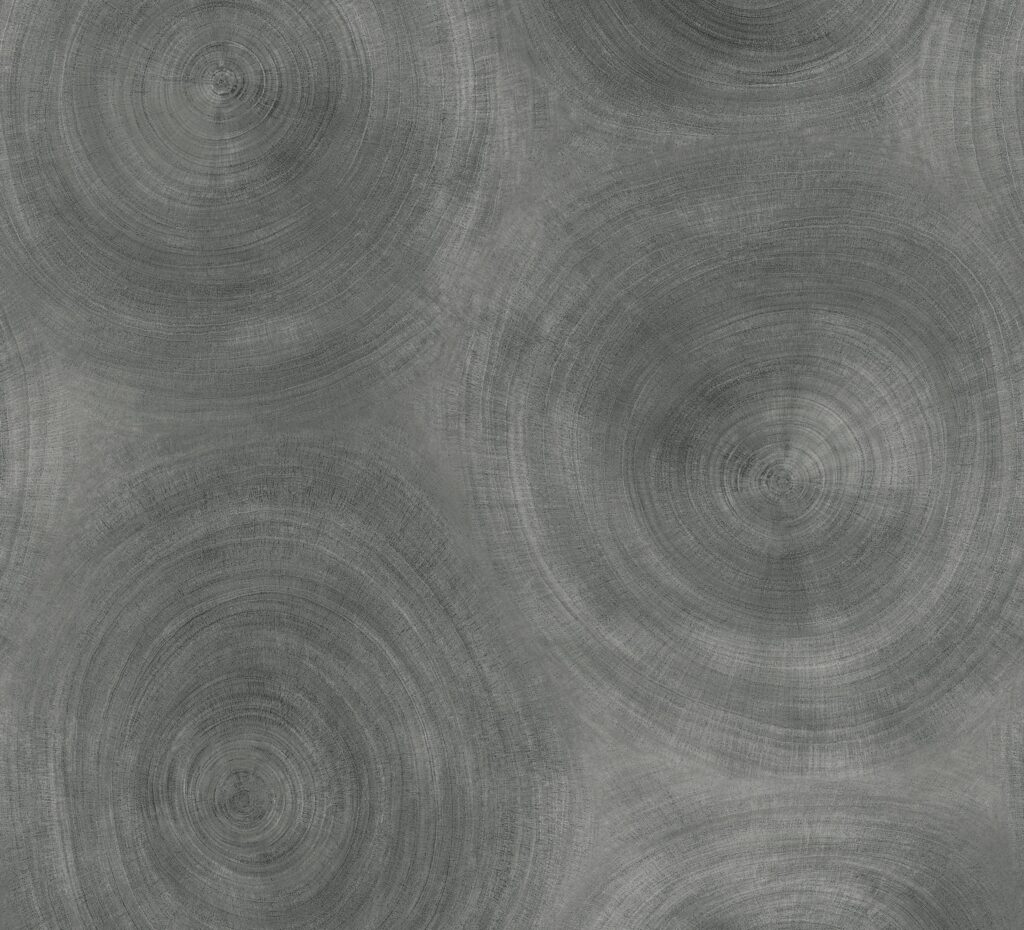

RT317_C06

RT317_C06Hughes GrayCrossover to Compass Baltimore CT317_06

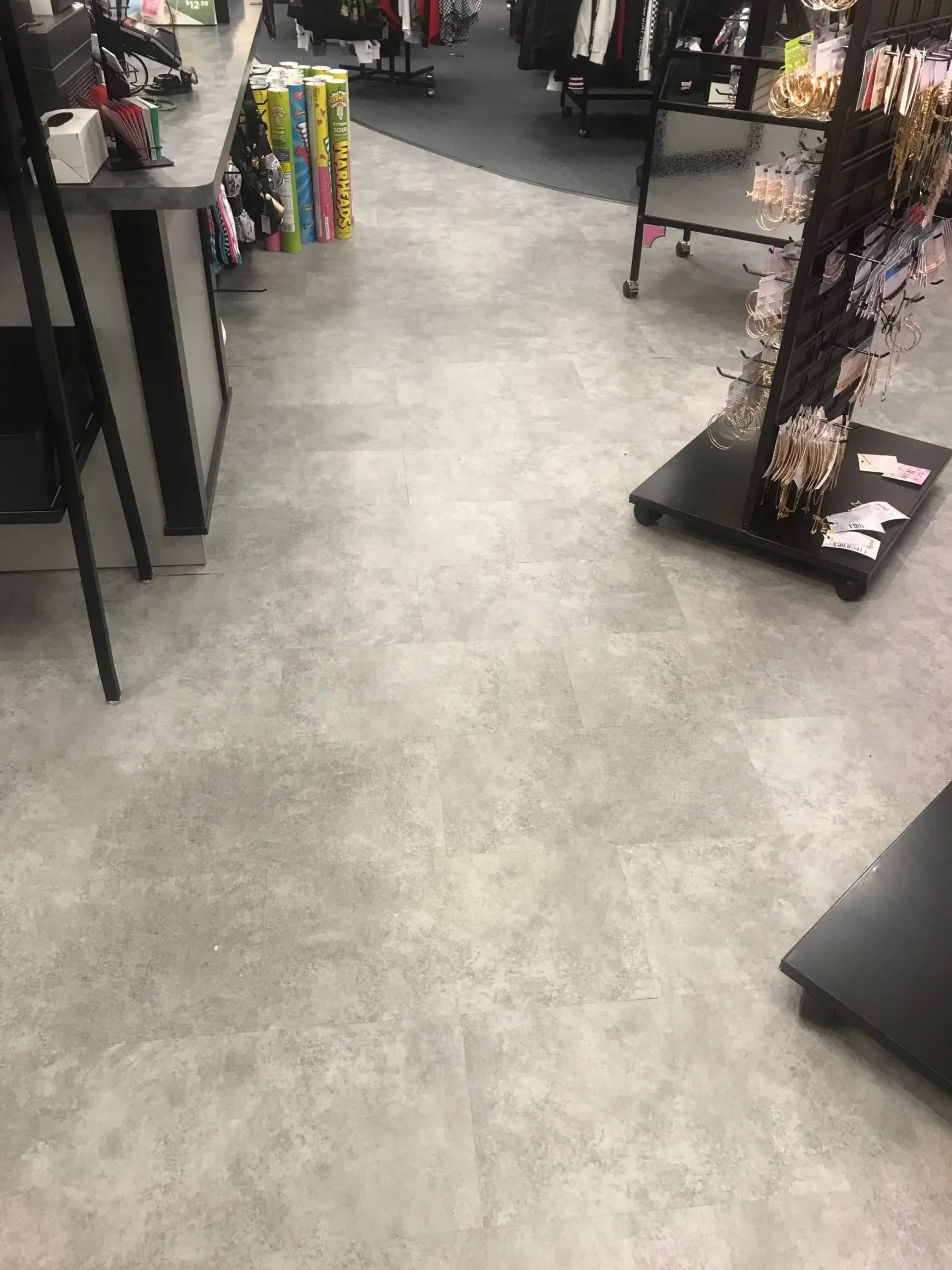

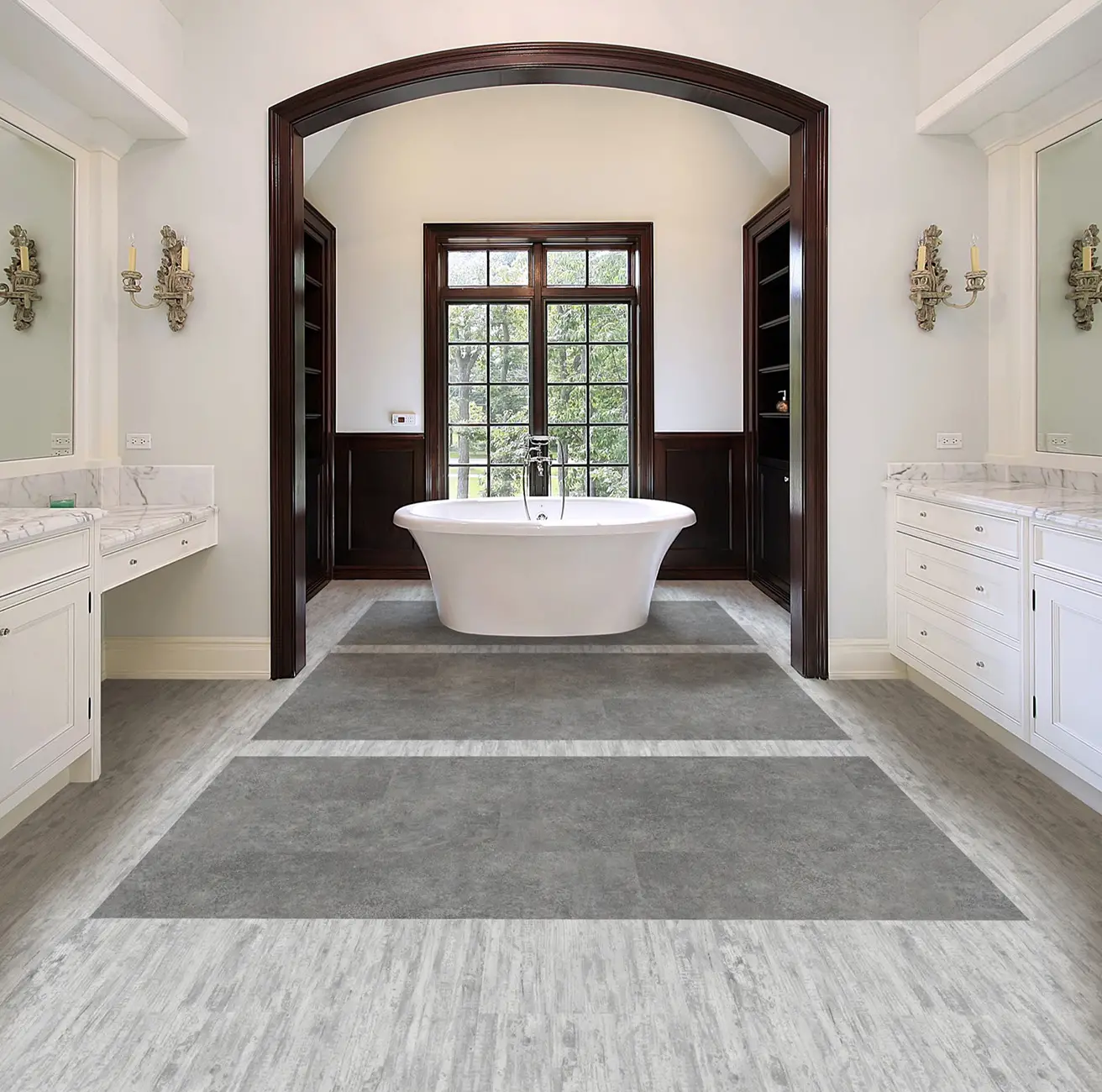

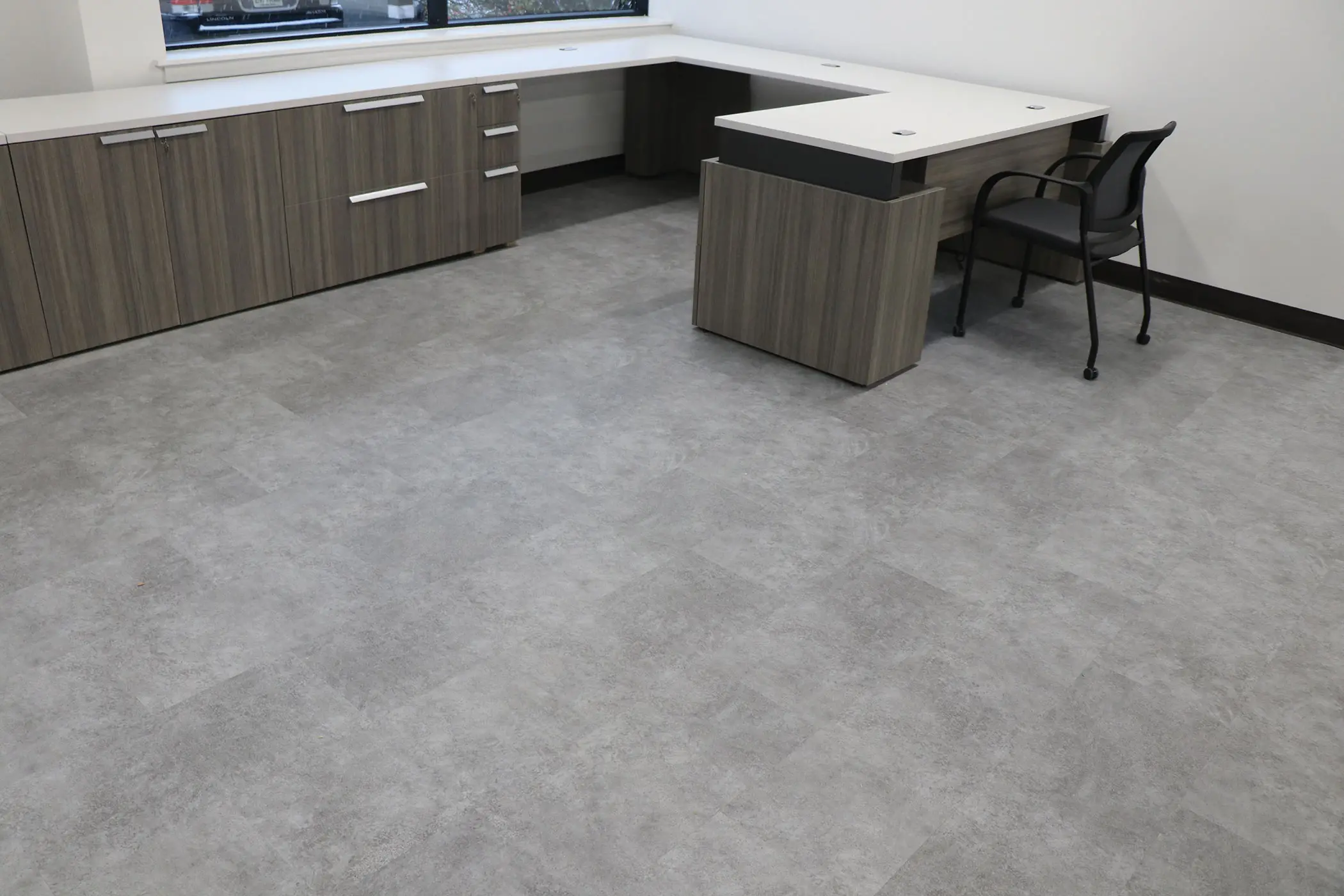

Larger View Room Scene Room Scene Room Scene RT315_C04 Summit Stone and RT269_C03 Star Vintage
RT315_C04

RT315_C04Summit StoneCrossover to Compass DC CT315_C04

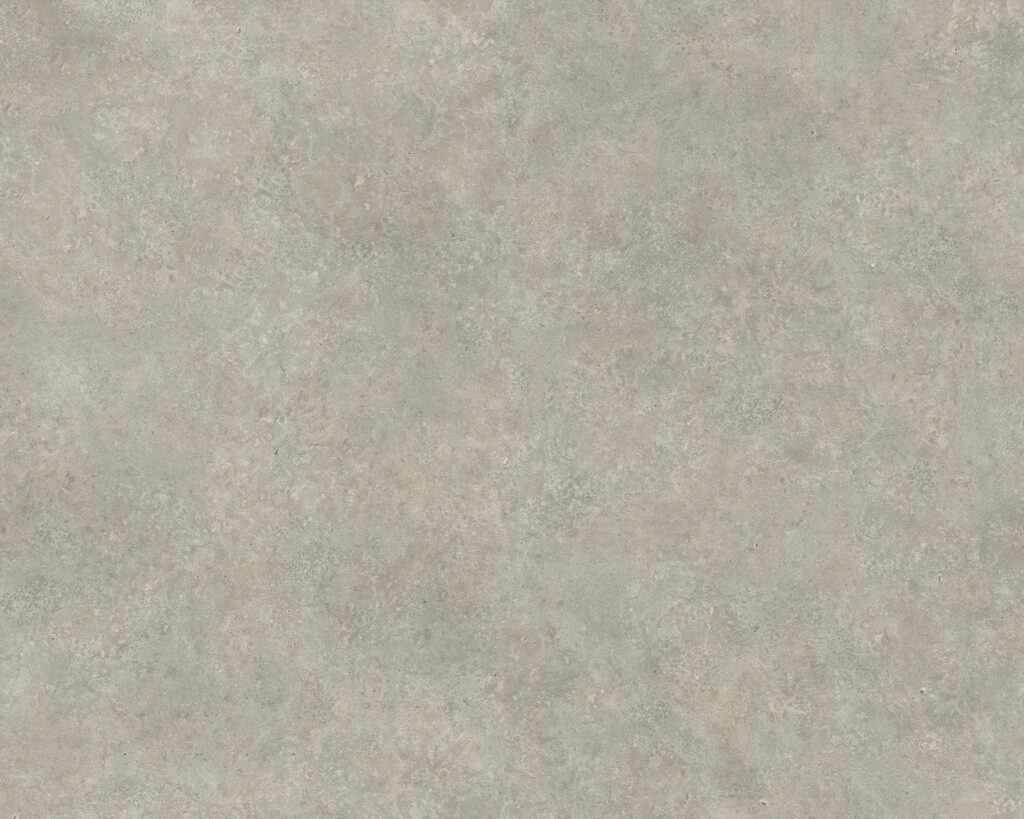

Larger View Room Scene RT349_C01 Potter
RT349_C01

RT349_C01Potter

Larger View Room Scene RT315_C04 Summit Stone and RT269_C03 Star Vintage

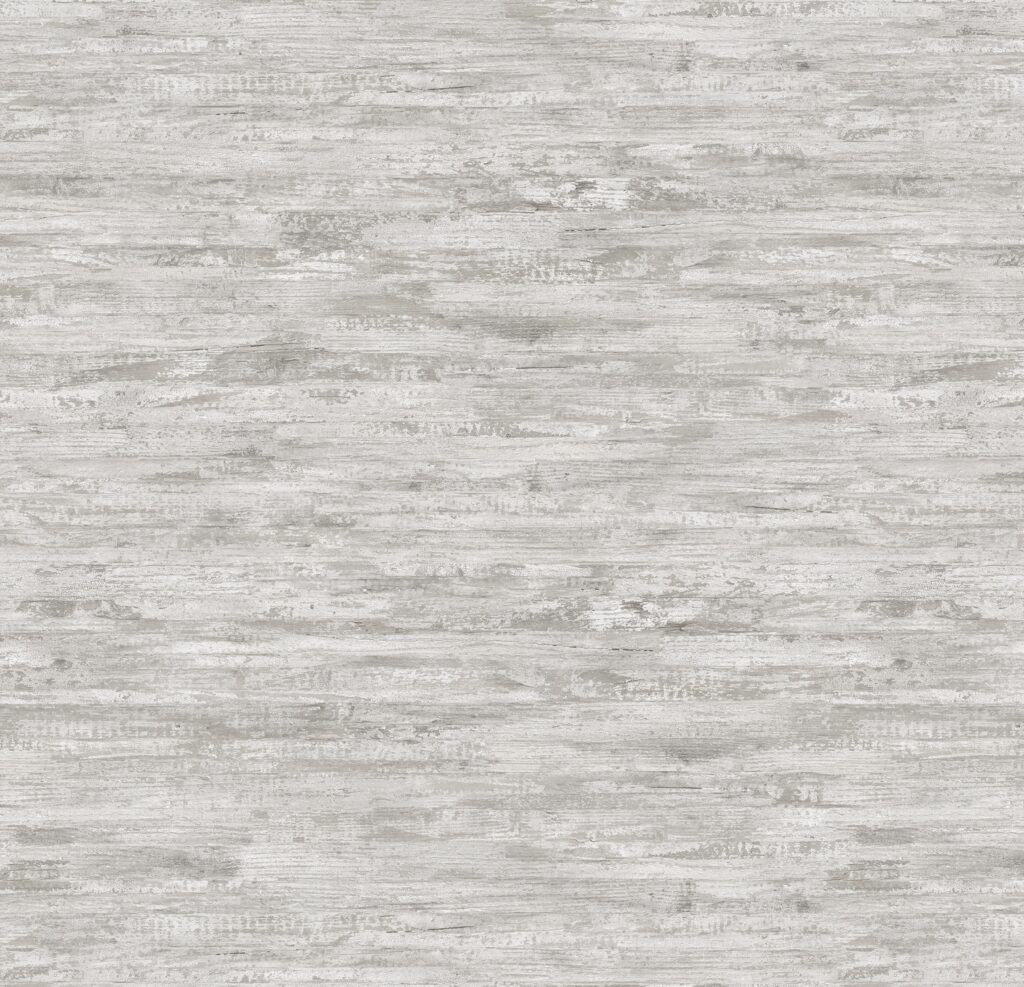

RT269_C03

RT269_C03Star Vintage

Larger View Room Scene RT341_C16 Stratford
RT341_C16

RT341_C16Stratford

Larger View Room Scene RT365_C08 Findlay Tweed Room Scene RT365_C08 Findlay Tweed
RT365_C08

RT365_C08Findlay Tweed

Larger View Room Scene
RT269_C10

RT269_C10Dillon Metal

Larger View Room Scene
RT341_C02

RT341_C02Sumner

degreeMarkRadius™Planks

7 1/8″ × 47 1/4″

Back To Top
Larger View Room Scene RP159_C15 Lester Pine Room Scene RP159_C15 Lester Pine
RP159_C15

RP159_C15Lester Pine

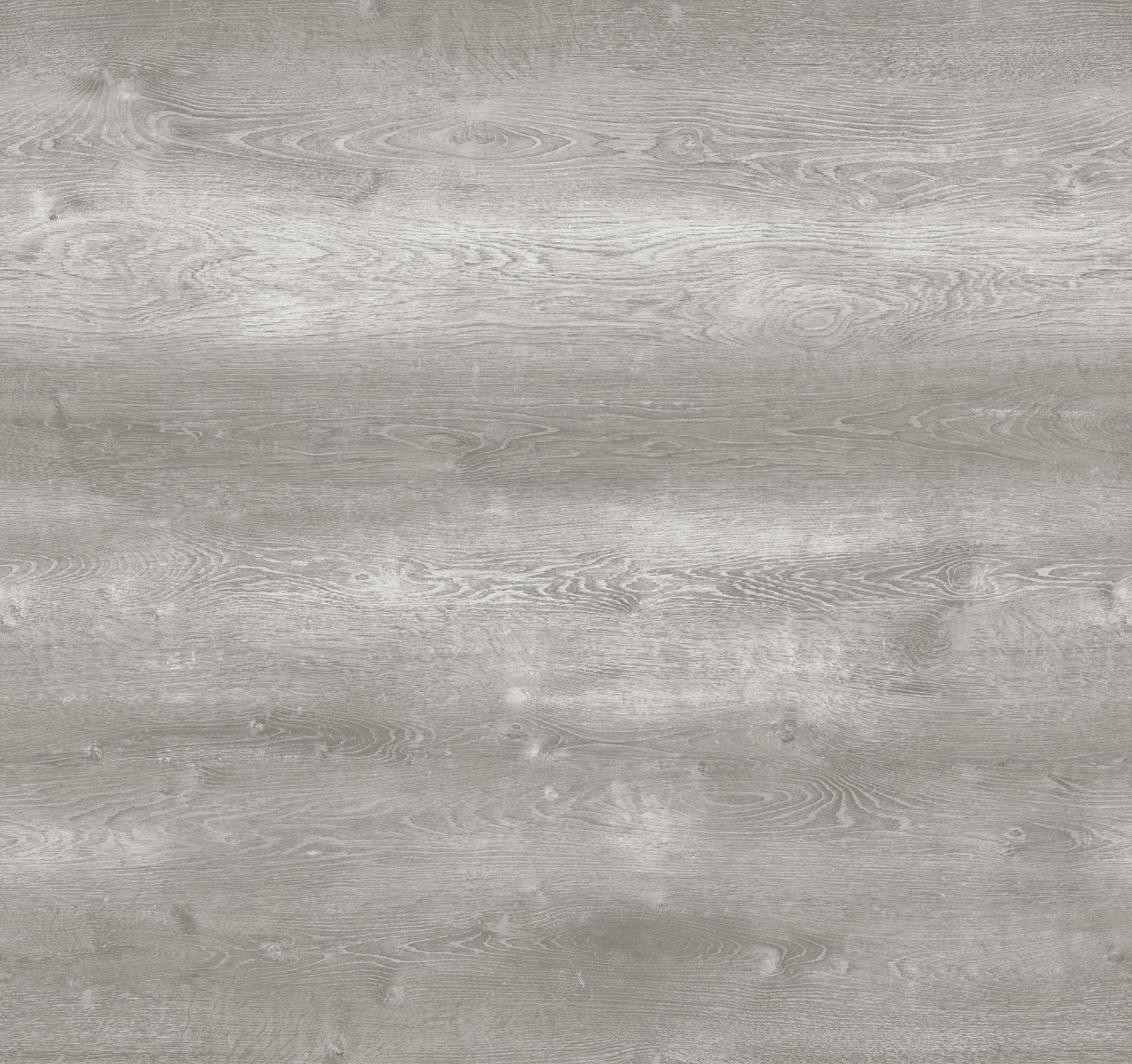

Larger View Room Scene
RP324_C05

RP324_C05Oxford Gray

Larger View Room Scene RP316_C04 Nye Sawn Cut Room Scene RP316_C04 Nye Sawn Cut and RP233_C57Wagner White Room Scene RP316_C04 Nye Sawn Cut
RP316_C04

RP316_C04Nye Sawn CutCrossover to Compass Stowe CP316_04

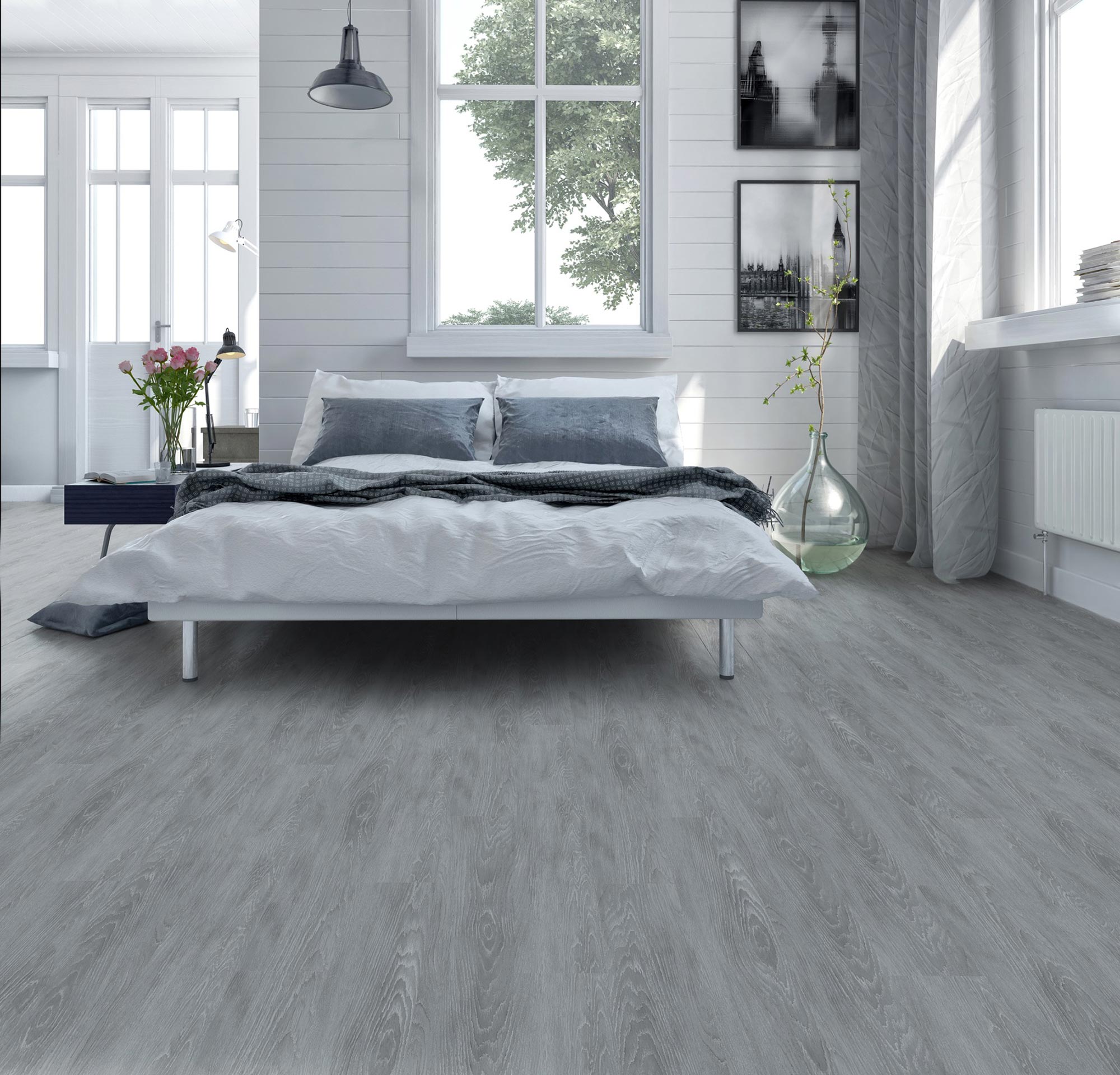

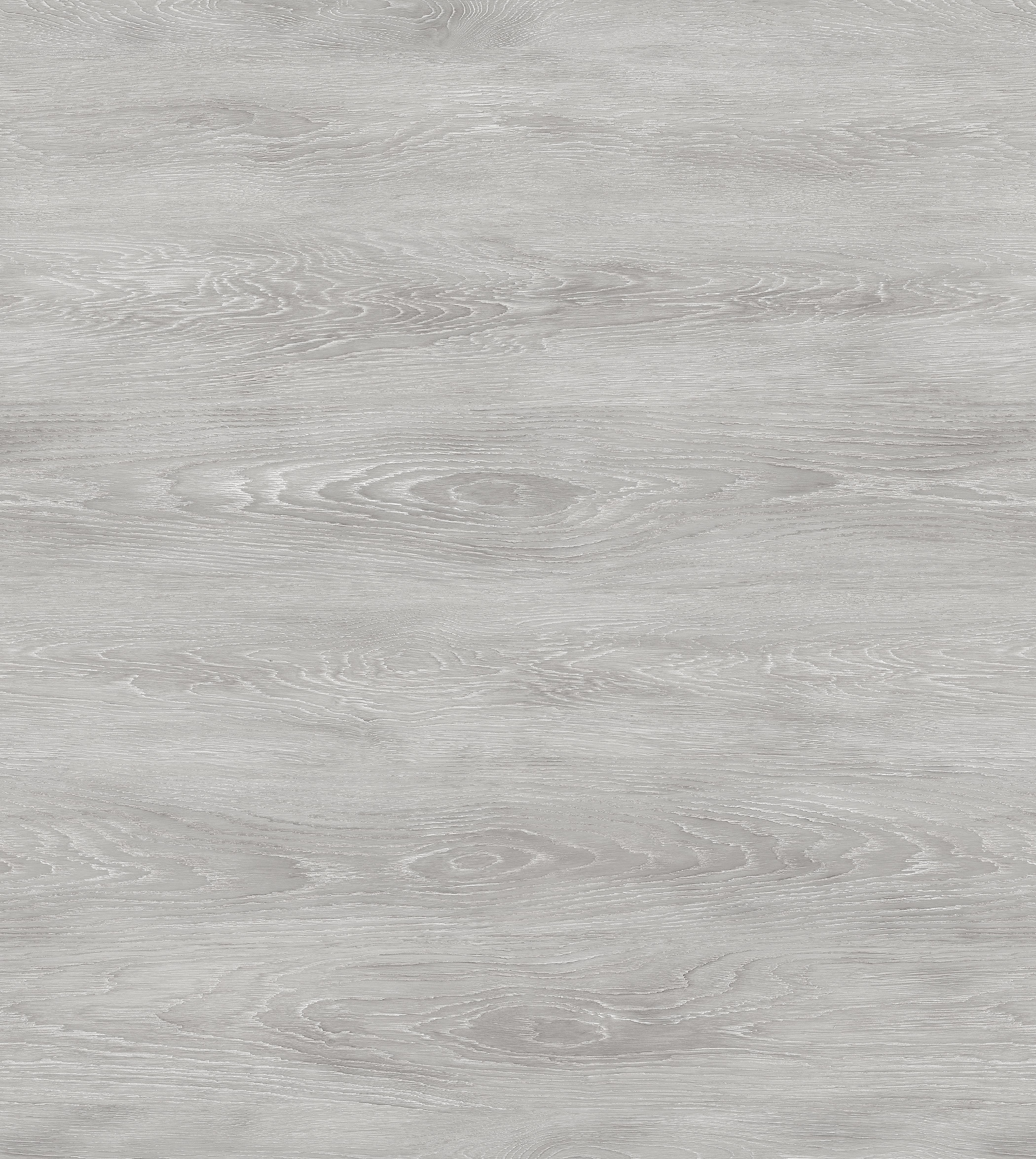

Larger View Room Scene Room Scene Room Scene RP233_C17 Silver Steele
RP233_C17

RP233_C17Silver Steele

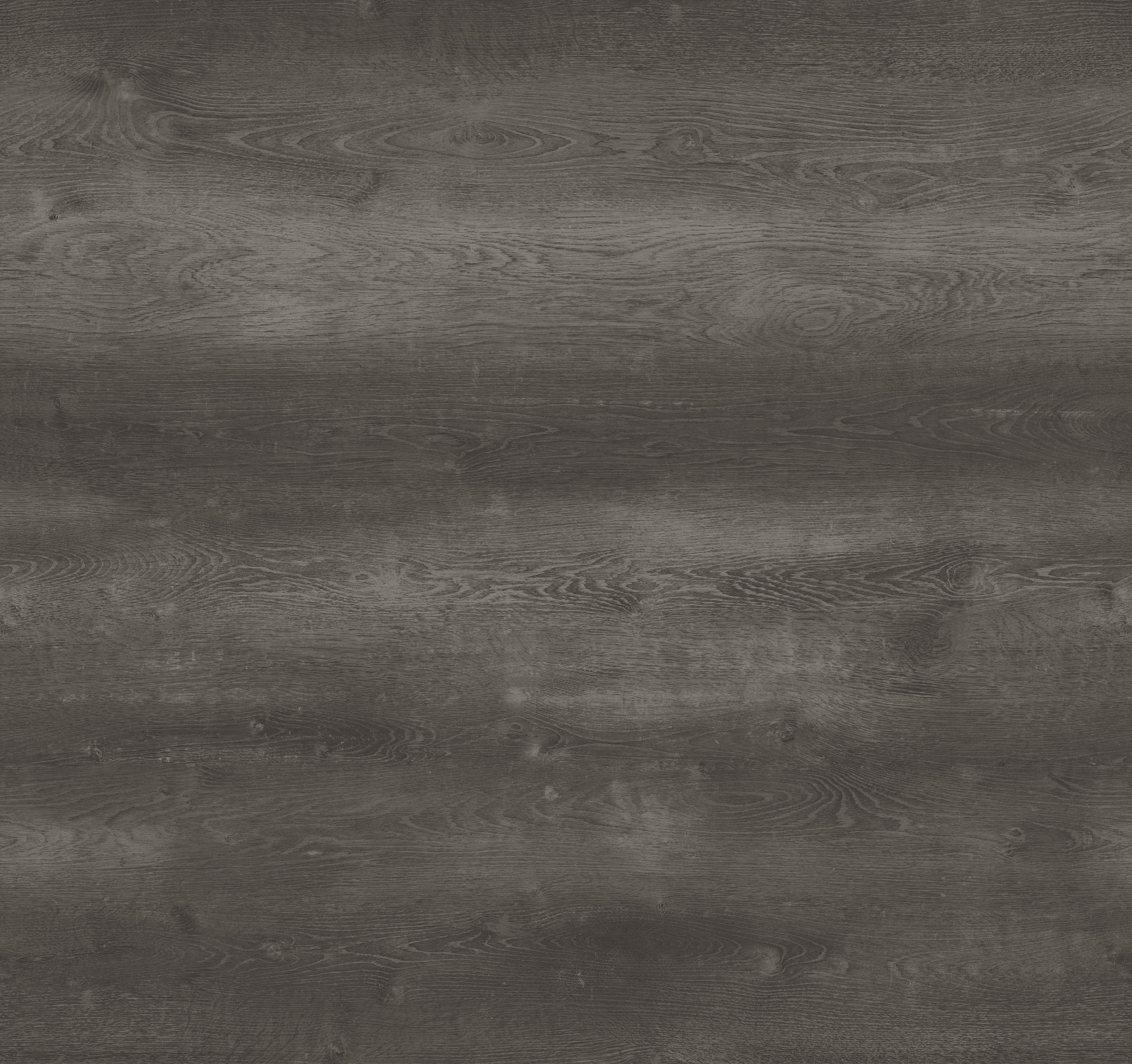

Larger View Room Scene RP324_C06 Watson Iron
RP324_C06

RP324_C06Watson Iron

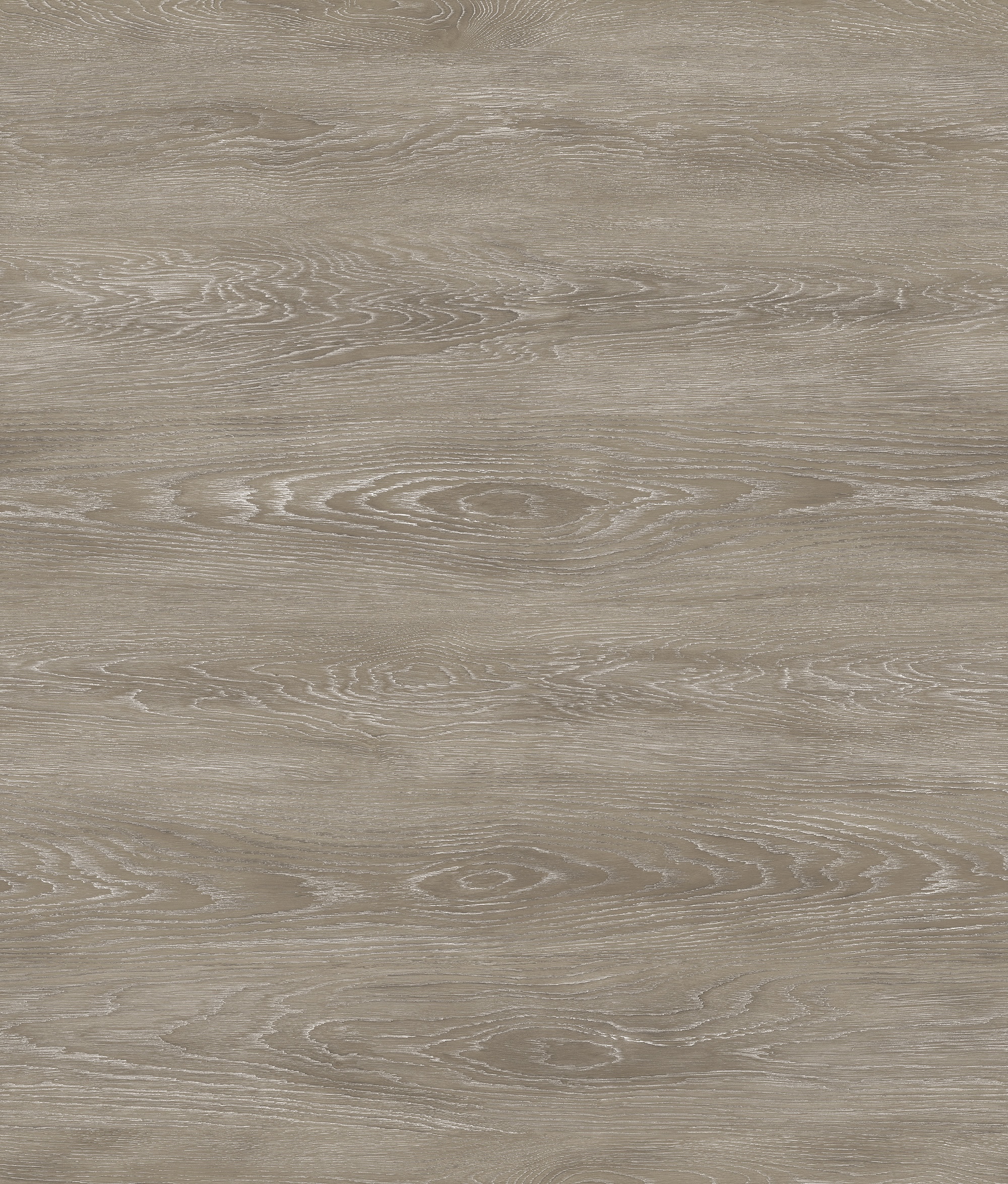

Larger View Room Scene RP233_C21 Burnham Oak Room Scene RP233_C21 Burnham Oak Room Scene
RP233_C21

RP233_C21Burnham Oak

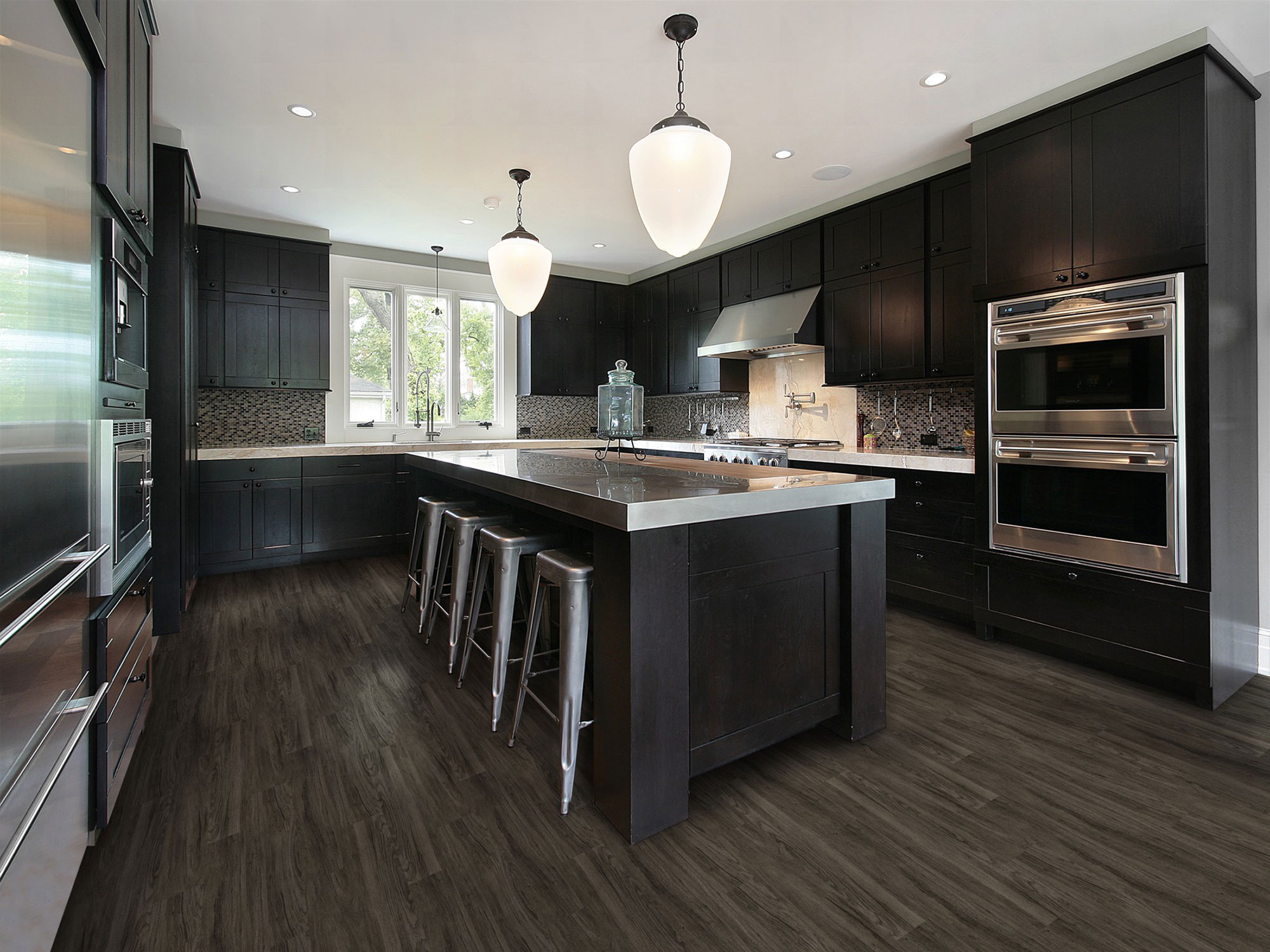

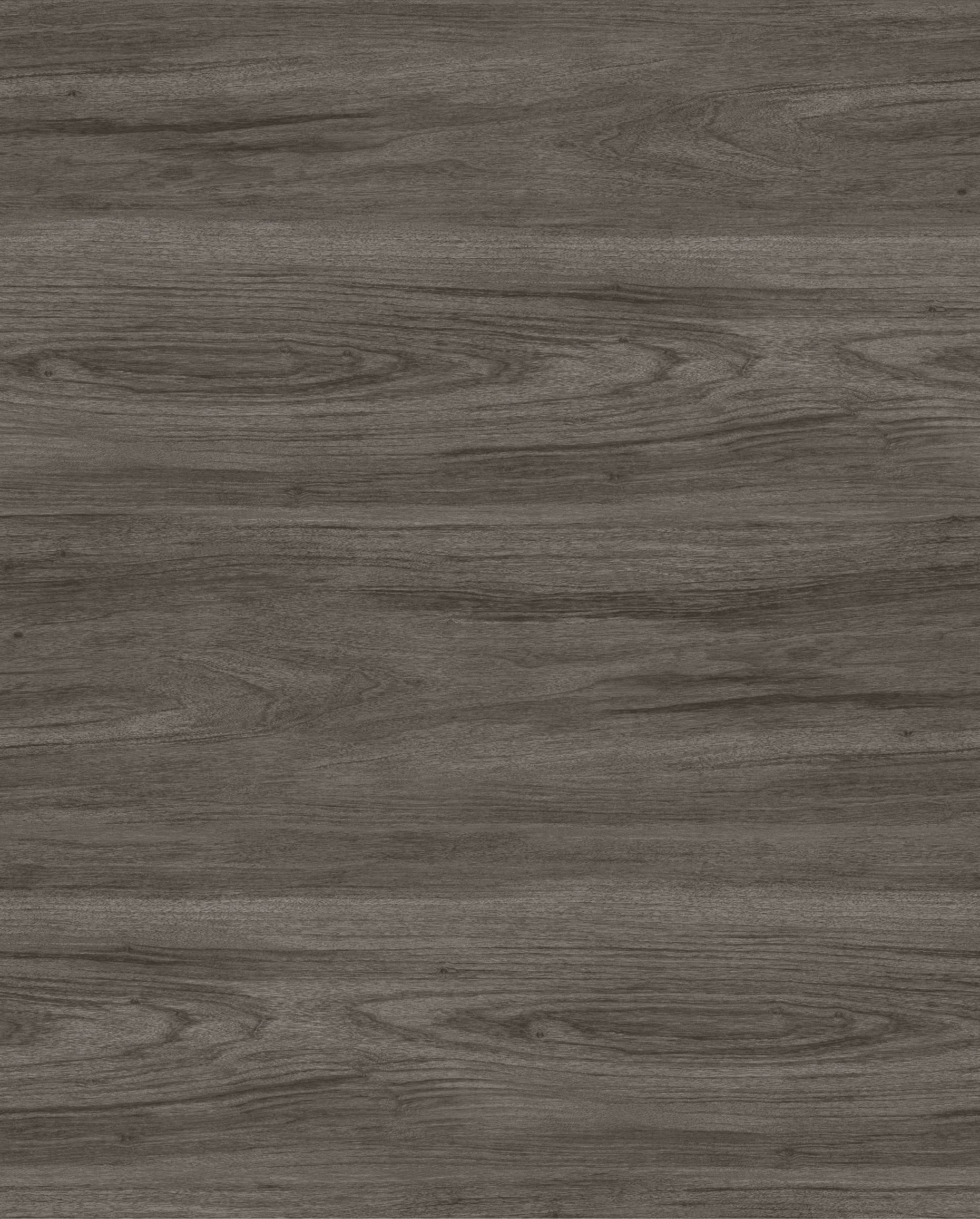

Larger View Room Scene RP208_C11 Miller Classic
RP208_C11

RP208_C11Miller Classic

Larger View Room Scene RP232_C04 Union Plank
RP232_C04

RP232_C04Union Plank

Larger View Room Scene RP232_C12 Fremont Plank Room Scene RP232_C12 Fremont Plank
RP232_C12

RP232_C12Fremont Plank

Larger View Room Scene
RP235_C05

RP235_C05Clark Maple

Larger View Room Scene RP233_C57 Wagner White Room Scene RP316_C04 Nye Sawn Cut and RP233_C57Wagner White
RP233_C57

RP233_C57Wagner White

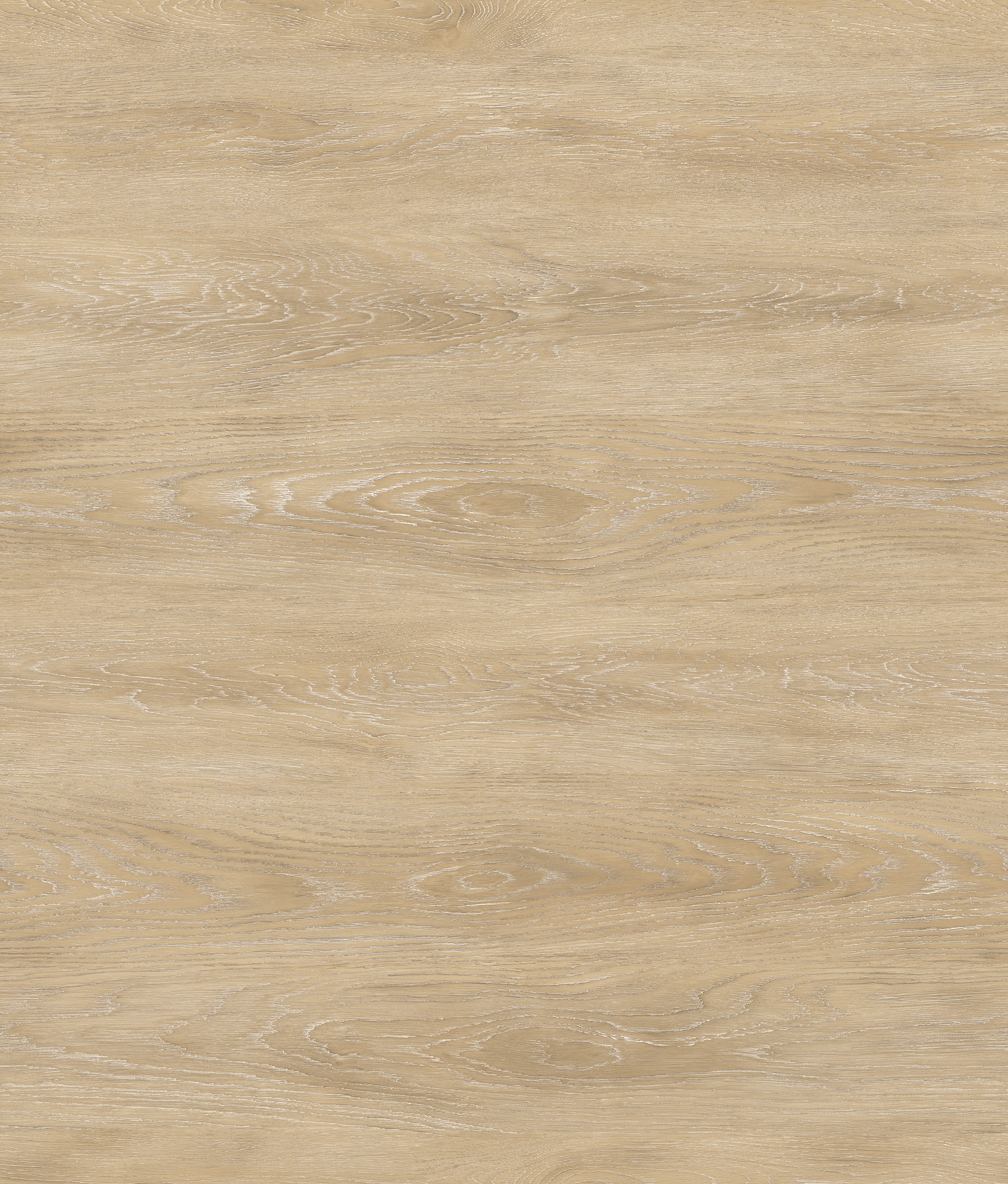

Larger View Room Scene RP233_C20 Elwood Room Scene
RP233_C20

RP233_C20Elwood

Larger View Room Scene RP314_C07 Lakeview Room Scene RT269_C02 Perry Vintage and RP314_C07 Lakeview
RP314_C07

RP314_C07Lakeview

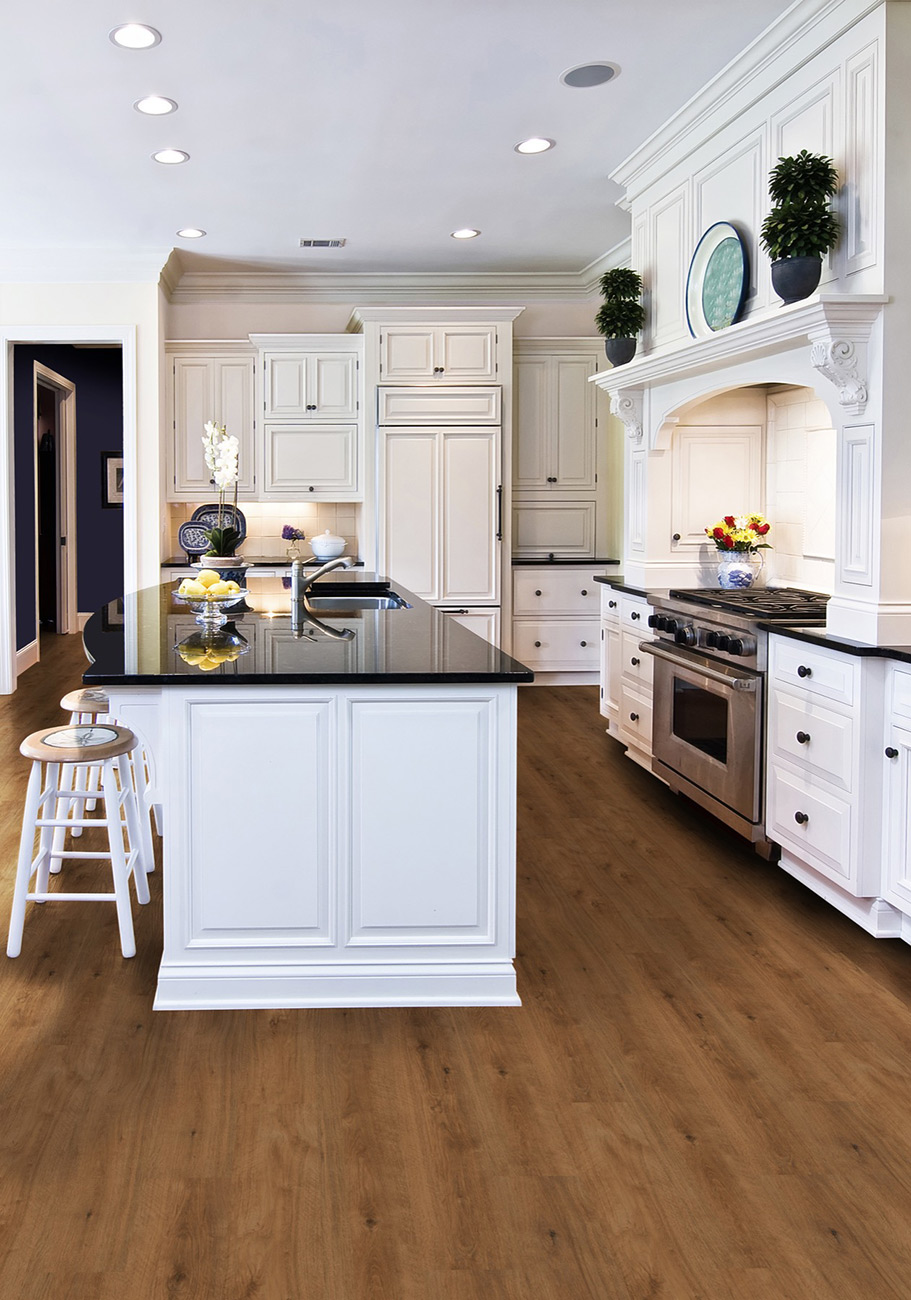

Larger View Room Scene RP350_C01 Vintage VanBuren

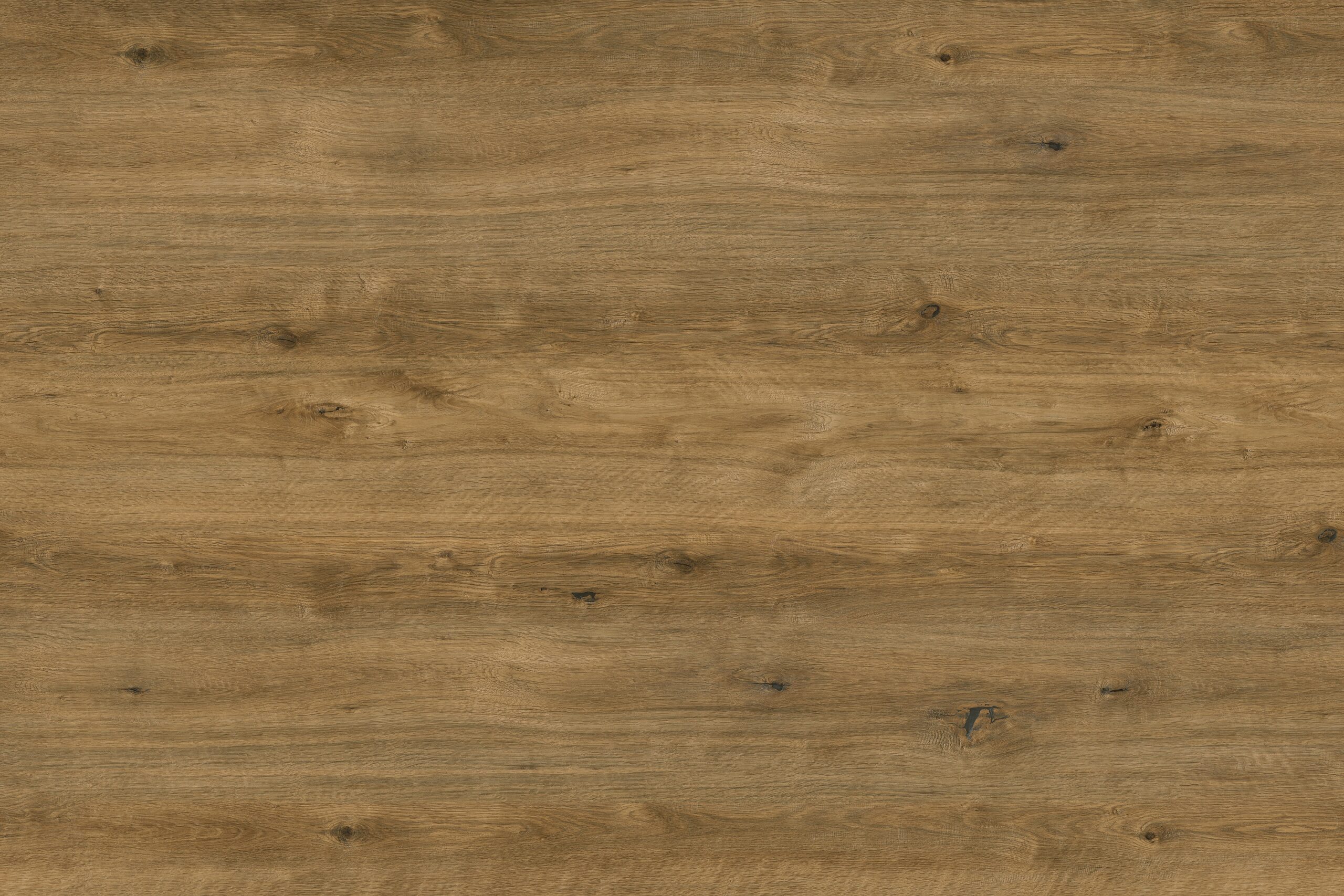

RP350_C01

RP350_C01Vintage VanBuren

Larger View Room Scene Room Scene Room Scene

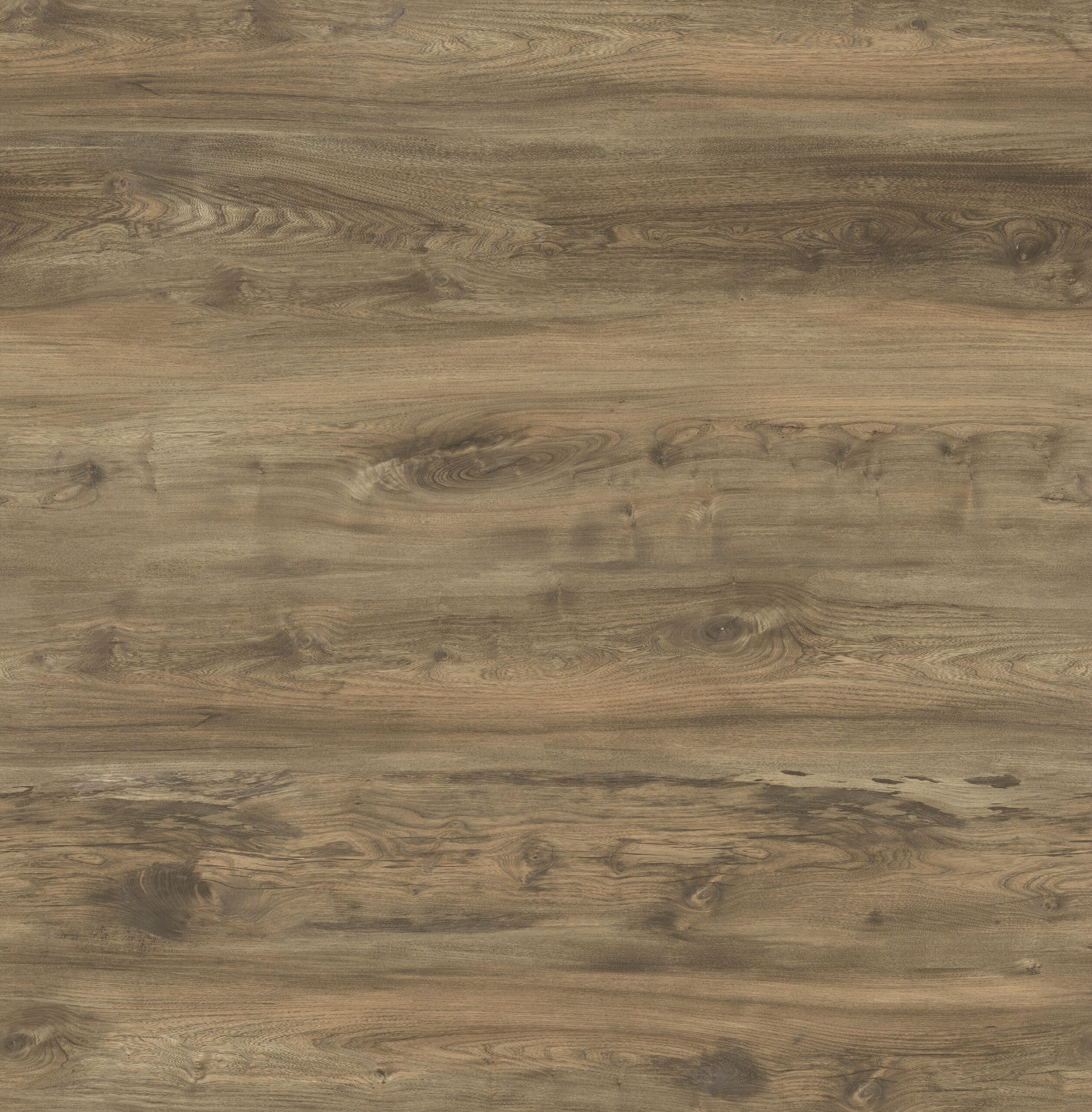

RP236_C13

RP236_C13Taylor TaupeCrossover to Compass Portland CP236_C13

Larger View Room Scene

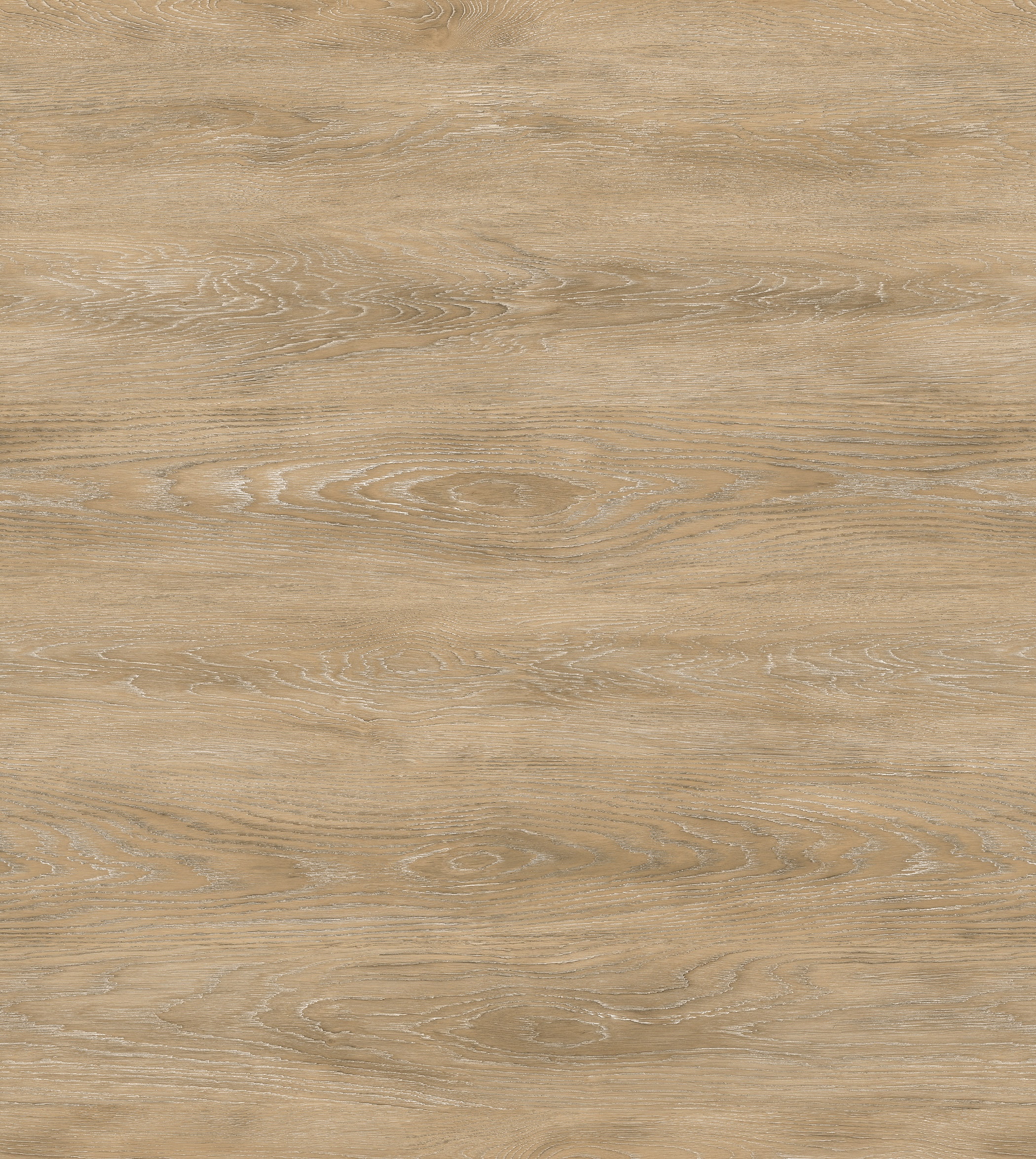

RP233_C08

RP233_C08McDougal Oak

Larger View Room Scene Room Scene RP251_C09 Thomas Classic and
RP251_C09

RP251_C09Thomas Classic

Larger View Room Scene Room Scene Room Scene RP381_C02 Meadow Lane Room Scene

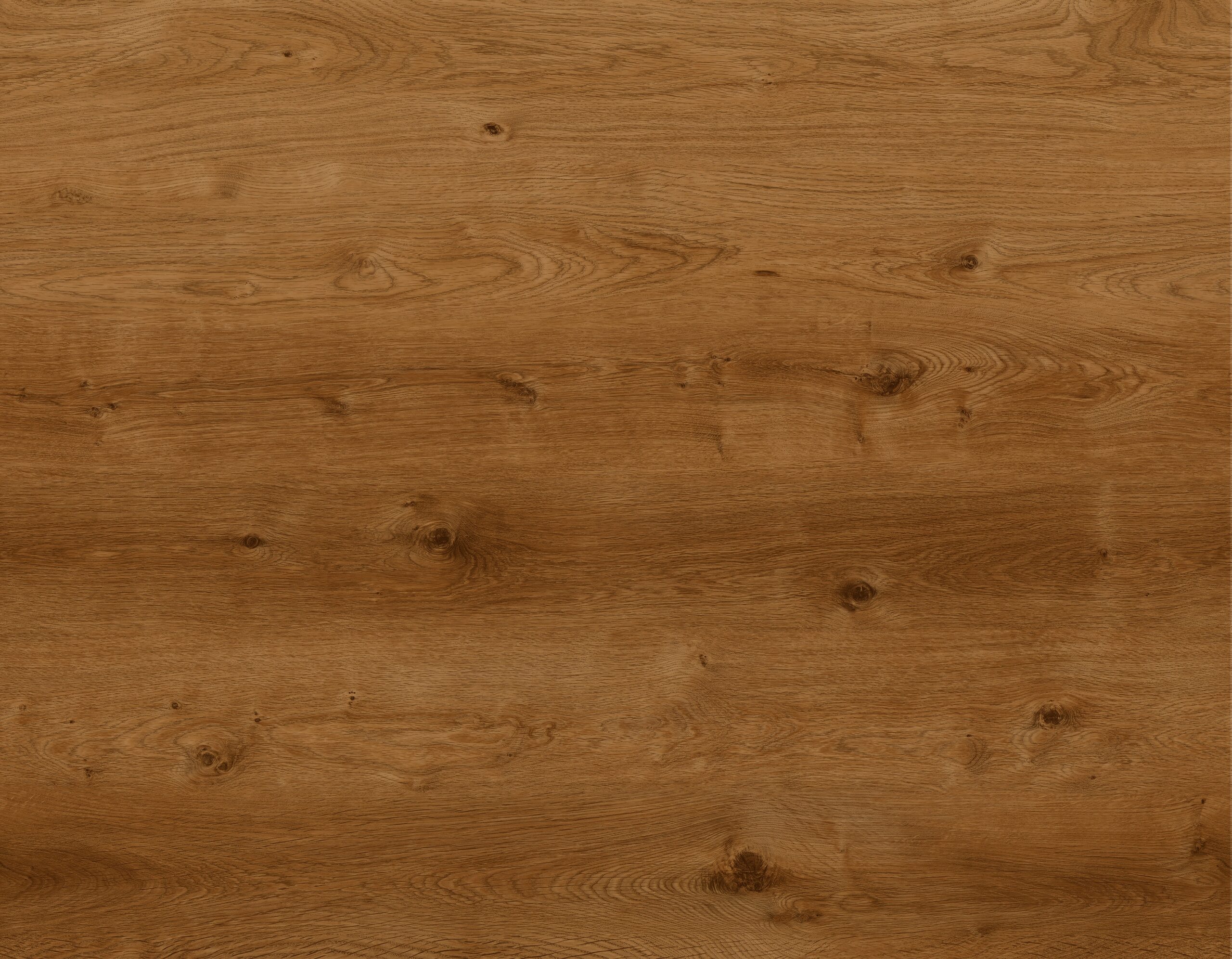

RP381_C02

RP381_C02Meadow Lane

Larger View Room Scene Room Scene RP250_C01 Eastern Maple and RT315_C02 Eagle Point
RP250_C01

RP250_C01Eastern Maple

Larger View Room Scene RP210_C04 Alton Wood Room Scene RP210_C04 Alton Wood
RP210_C04

RP210_C04Alton Wood

Larger View Room Scene
RP235_C08

RP235_C08Crocker Maple

Larger View Room Scene RP147_C26 Grant Ginger
RP147_C26

RP147_C26Grant Ginger

Larger View Room Scene RP235_C15 Columbus Red
RP235_C15

RP235_C15Columbus Red

Larger View Room Scene
RP188_C14

RP188_C14GlenviewCrossover to Compass Savannah CP188_C14

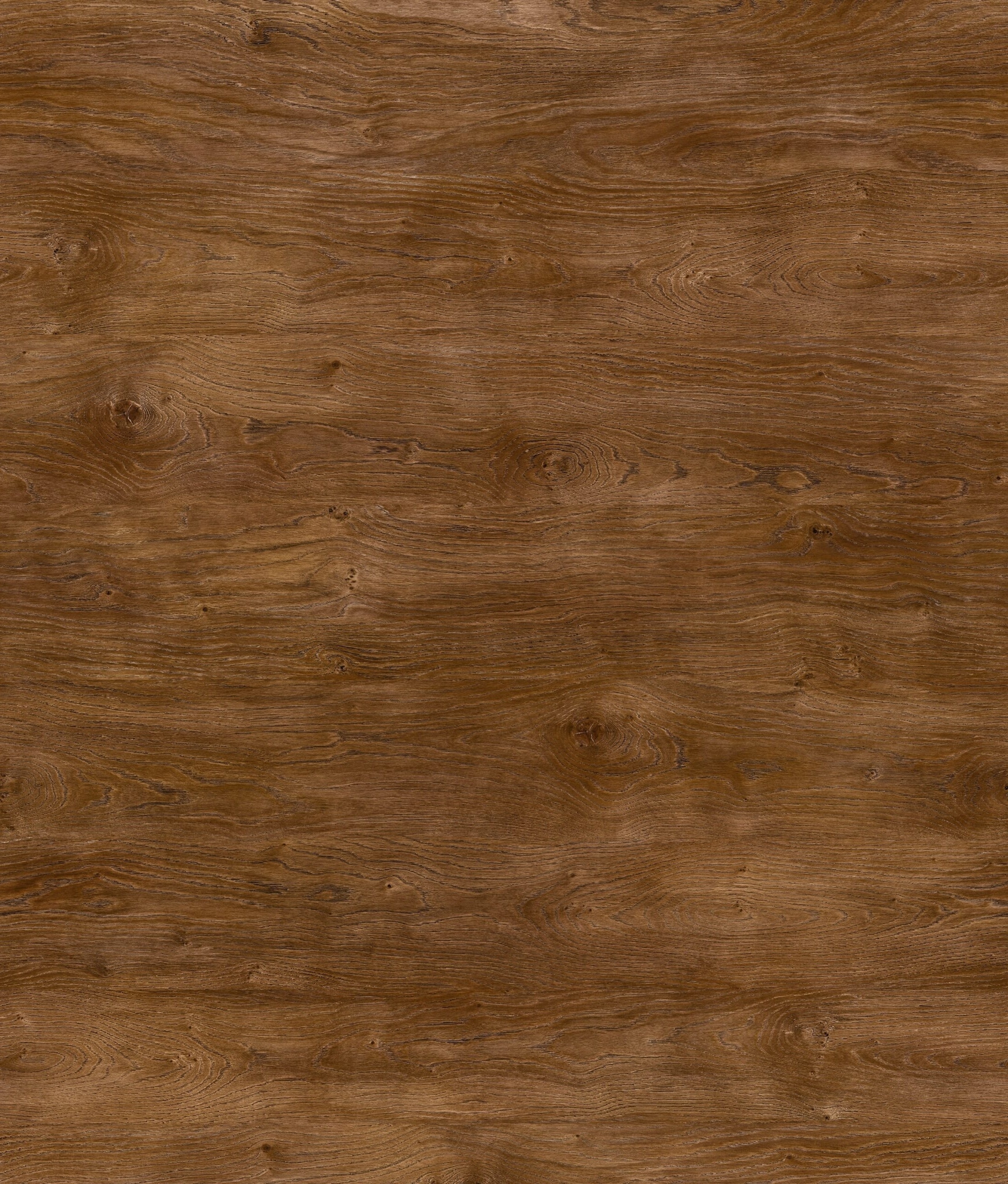

Larger View Room Scene RP220_C12 Alexander Oak Room Scene RP251_C09 Thomas Classic and
RP220_C12

RP220_C12Alexander OakCrossover to Compass Birmingham CP220_C12

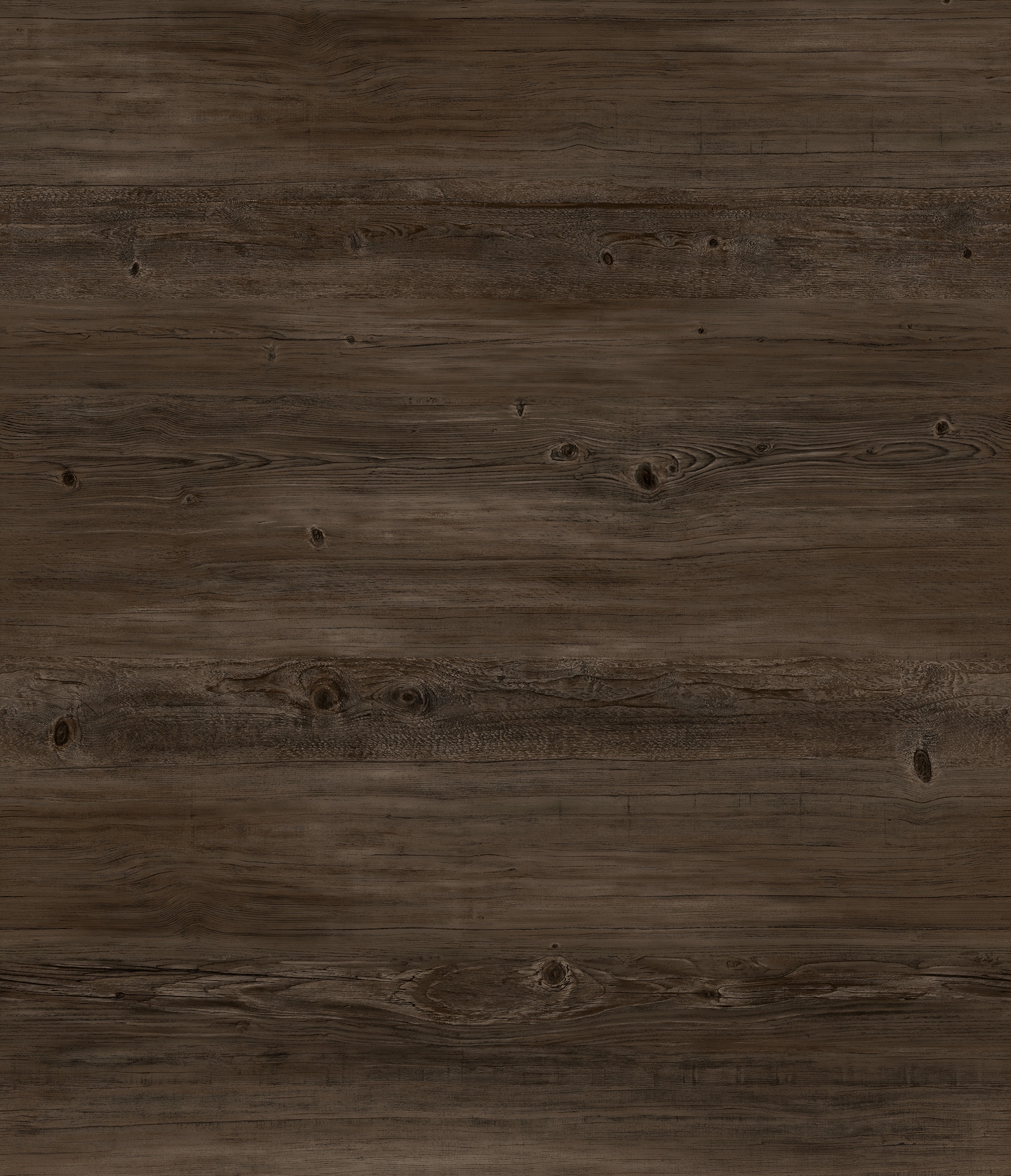

Larger View Room Scene RP131_C02 Briggs Rustic
RP131_C02

RP131_C02Briggs Rustic

Larger View Room Scene RP239_C10 Wedgewood Room Scene RP239_C10 Wedgewood
RP239_C10

RP239_C10Wedgewood

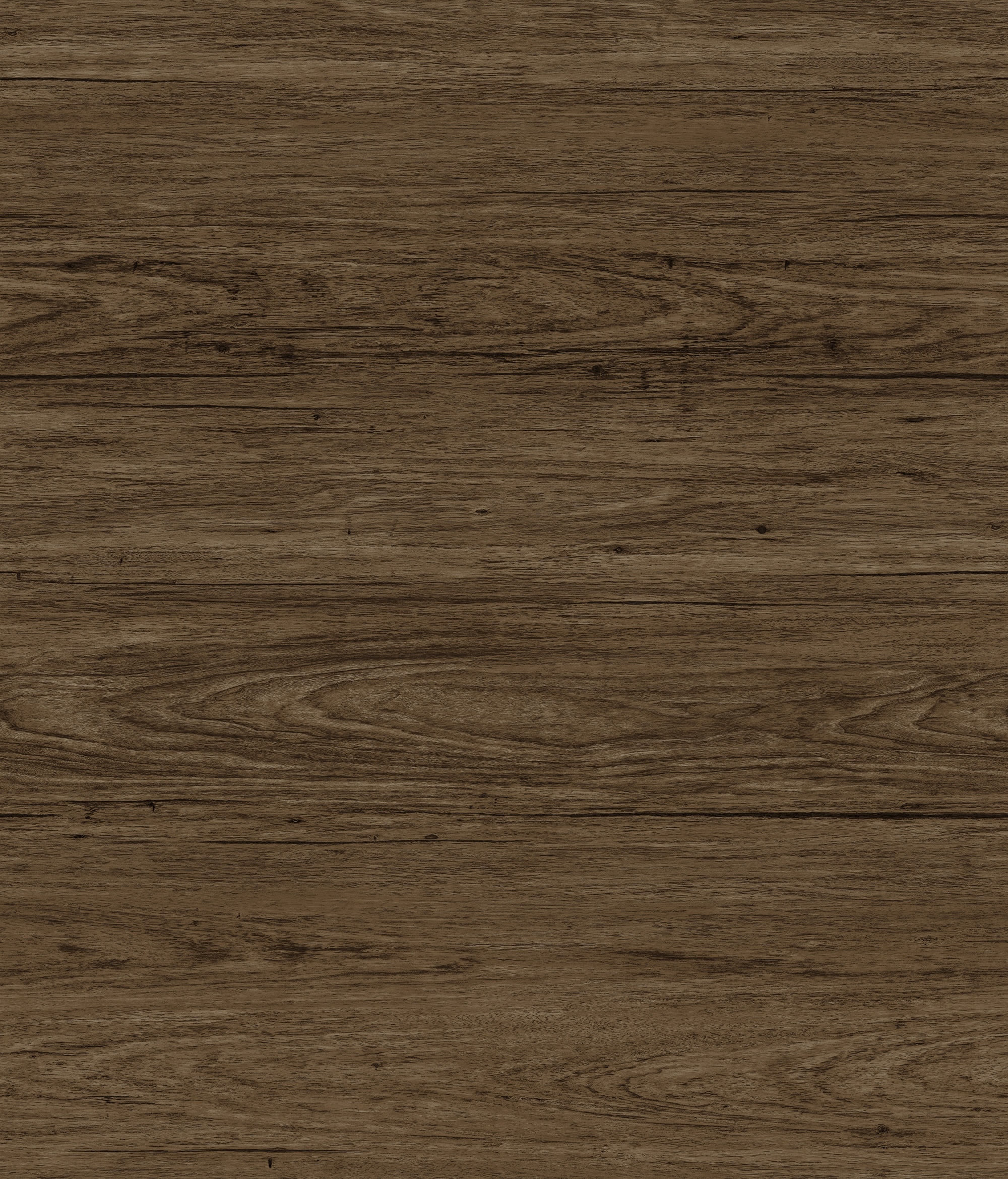

Larger View Room Scene RP174_C14 Cooper Brown
RP174_C14

RP174_C14Cooper Brown

Larger View Room Scene RP266_C08 Tiffin Hand Scraped
RP266_C08

RP266_C08Tiffin Hand Scraped

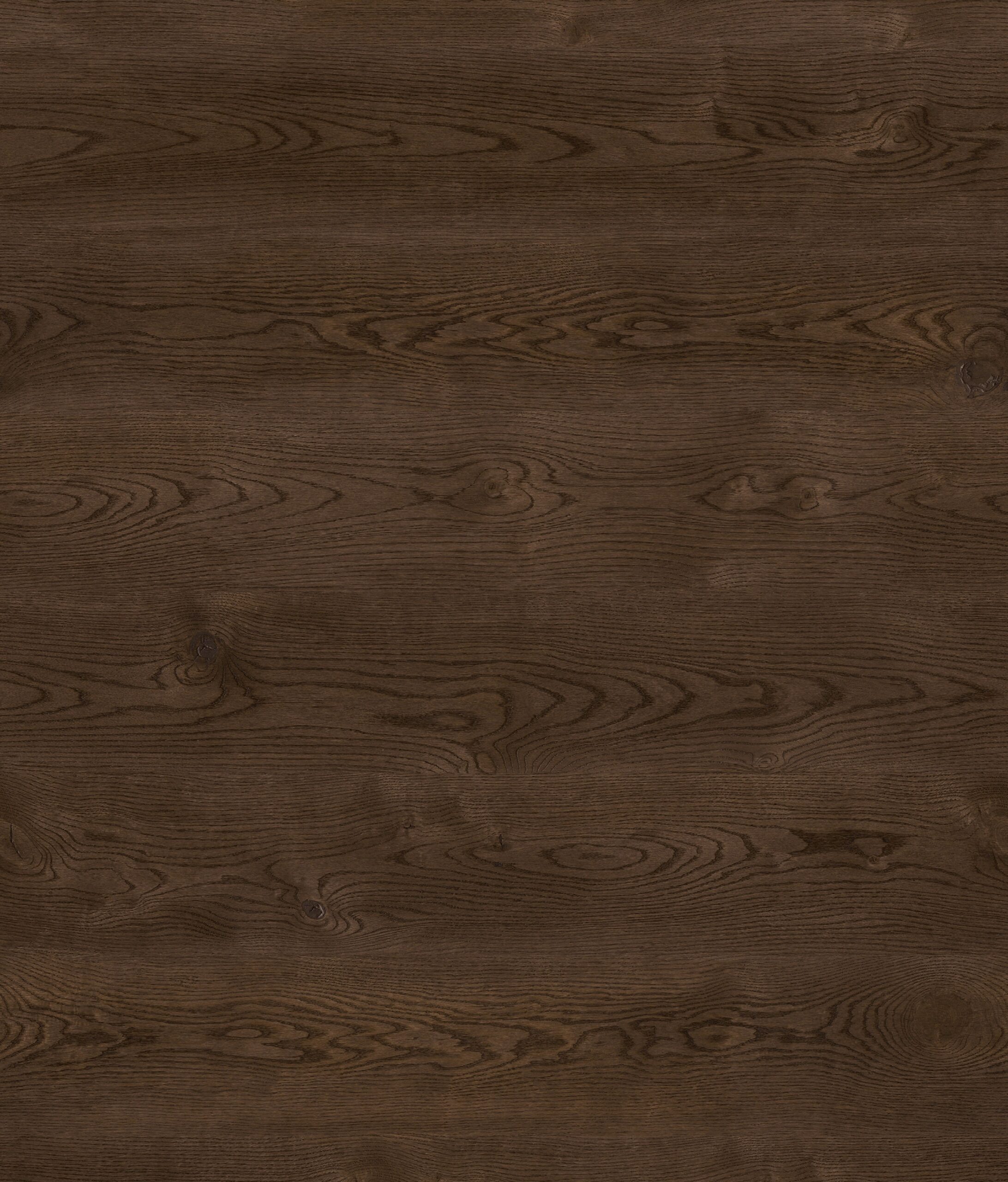

Larger View Room Scene RP330_C02 Woodland
RP330_C02

RP330_C02WoodlandCrossover to Compass Cleveland CP330_CO2
