The Six Degrees of

Compass™

Vinyl Flooring

Where will your design direction take you? Somewhere clean and modern? Perhaps bold and bright? How about soothing and comfortable? The choice is yours! Now with 56 designer-influenced colors, including 8 new colors in our Compass Colors Collection, you may have a hard time deciding where you want to go. Proudly made in the USA, the Compass™ Collection is heavily inventoried and ready to ship, so you can get where you want to go on time.

  • 48 designer-inspired colors and patterns, all at a single price point
  • A 28 mil wear layer enhanced with the addition of our UV Cured, Ceramic-Reinforced Urethane finish makes it the ideal choice for heavy commercial traffic areas such as hospitals and retail
  • A lower-maintenance flooring option which does not require a finish
  • An eco-friendly product made from locally sourced raw materials
  • Simple glue down installation allows for greater pattern/design flexibility
  • Readily available…made and inventoried in the USA!

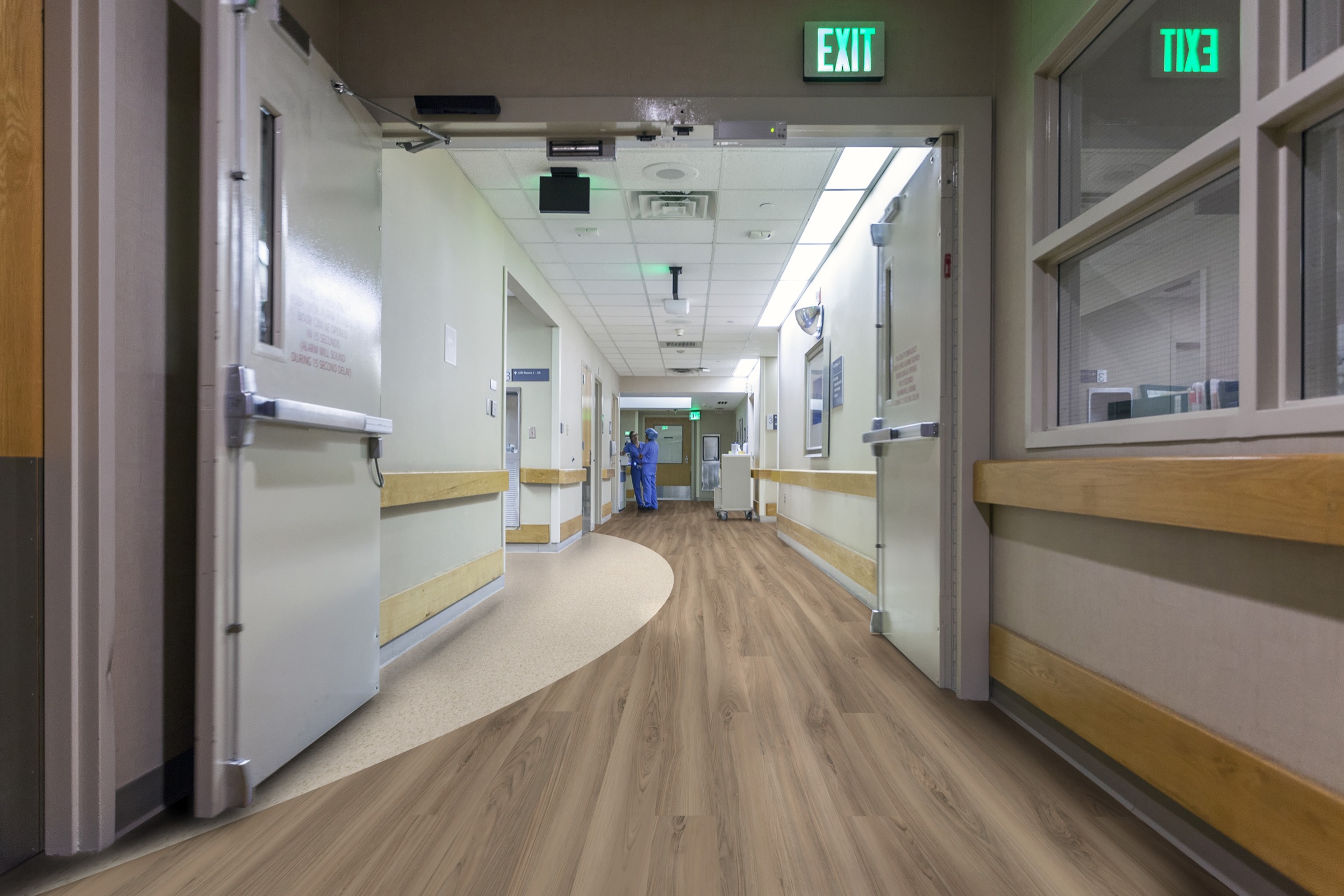

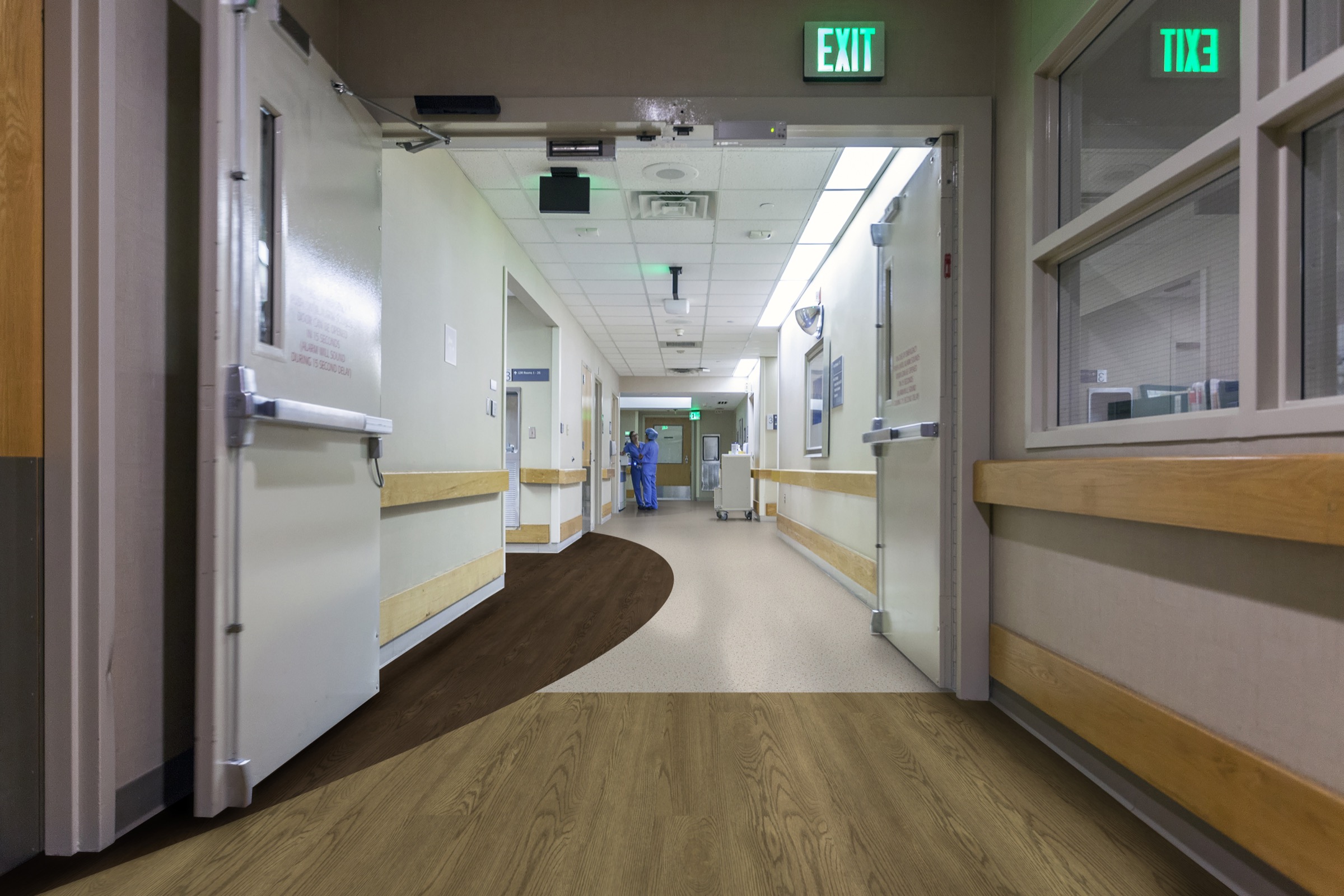

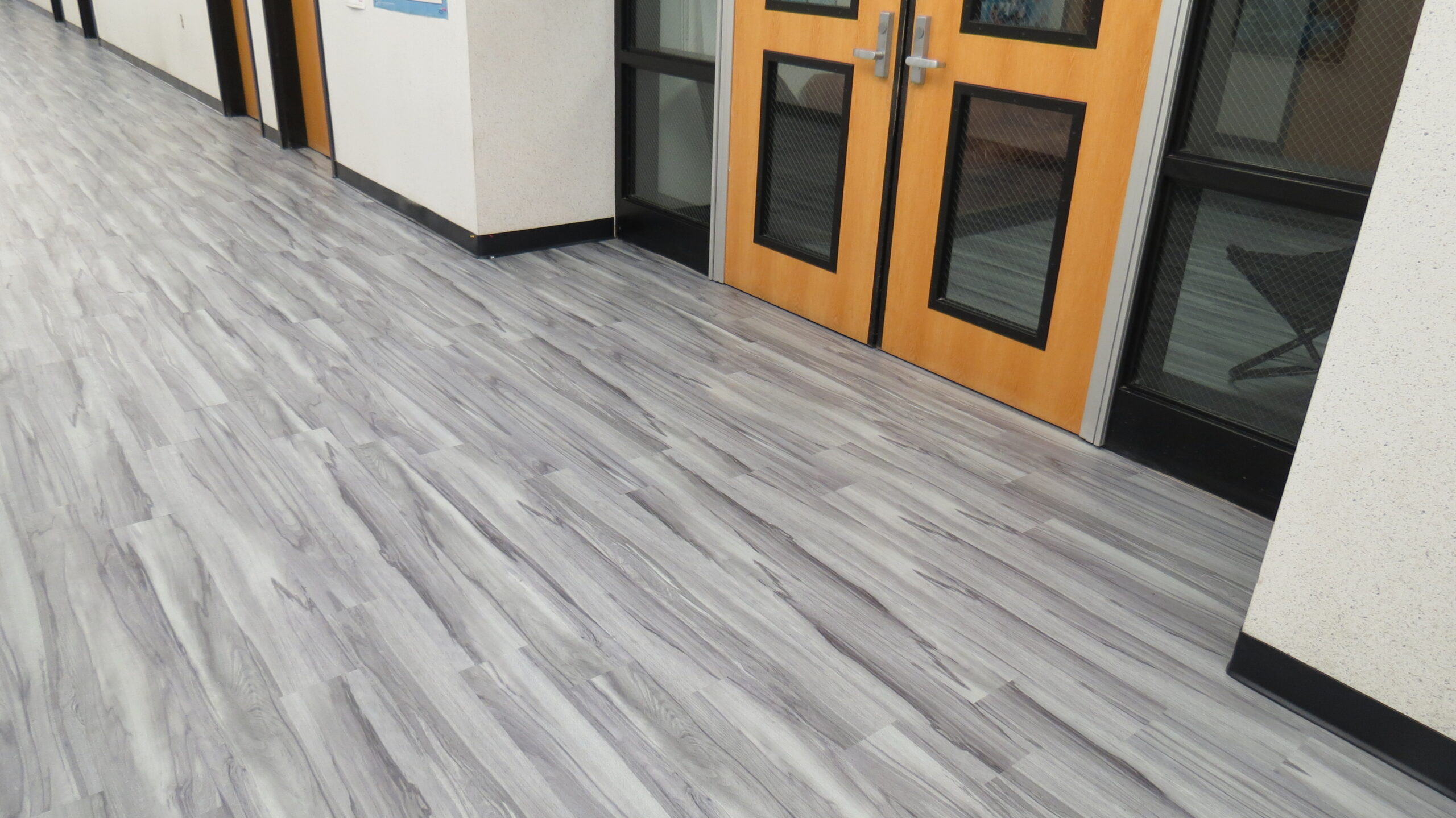

radius hallway shot

degreeMarkTechnical

Features

  • 100% Recyclable
  • Easy To Maintain
  • GREENGUARD Gold Certification
  • Ceramic-Reinforced, UV-Cured Urethane Finish
  • Enhanced with EnviroSD Antibacterial Agent
  • Extremely Durable
  • Excellent Indentation Resistance
  • Excellent Chemical Resistance
  • Excellent Slip Resistance
  • Qualifies for LEED® Credits
  • Participates in mindful MATERIALS library

Warranty

  • 20-year Commercial Warranty
Download Warranty

COMPASS™ PLANK SPECIFICATIONS

  • Nominal Dimensions: 6″ x 48″ x 3 mm plank
  • Finish: Embossed 28 mil CRU
  • Quantity Per Carton: 18 Planks (6″ x 48″)
  • Sq. Ft. Per Carton: 36 sq. ft./carton

COMPASS™ 18" x 18" TILE SPECIFICATIONS

  • Nominal Dimensions: 18″ x18″ x 3 mm tile
  • Finish: Embossed 28 mil CRU
  • Quantity Per Carton: 16 Tiles (18″ x 18″)
  • Sq. Ft. Per Carton: 36 sq. ft./carton

COMPASS™ 12" x 24" TILE SPECIFICATIONS

  • Nominal Dimensions: 12″ x 24″ x 3 mm tile
  • Finish: Embossed 28 mil CRU
  • Quantity Per Carton: 18 Tiles (12″ x 24″)
  • Sq. Ft. Per Carton: 36 sq. ft./carton
Download Technical Data Sheet Download Installation Instruction Sheet Download Maintenance Sheet Download CSI Formatted Specifications Download GreenGuard Gold Certification

TEST INFORMATION

  • LEED v2009 MR Credit 6 RRM Content: 12%
  • LEED v2009 IEQ Credit 4.1: Qualifies
  • LEED v2009 IEQ Credit 4.3: Qualifies
  • ASTM F1700 – Solid Vinyl Tile: Class III, Type A & B
  • ASTM E648 – Critical Radiant Flux: Class I,>.45 W/cm2
  • ASTM E662 – Smoke Density: Passes, <450
  • CAN/ULC-s102.2 – Surface Burning: 30 FSR, 250 SDC
  • ASTM D2047 – Slip Resistance: >0.50
  • ASTM F970 – Static Load Limit: Passes, >250 PSI
  • ASTM F970 (Modified) – Max Weight: 2000 PSI
  • ASTM F925 – Chemical Resistance: Excellent (chart available)
  • ASTM F1515 – Light Stability: Passes
  • ASTM F1914 Residual Indentation: Passes
  • ASTM F2199 Dimensional Stability: Passes
  • Acclimation Time: 48 Hours
  • Storage & Acclimation Temperature: 65˚ – 85˚ F
GreenGuard Gold Icon EnviroSD Icon

degreeMarkInstallation & Maintenance Products

Click to View Products
Six Degrees Icon

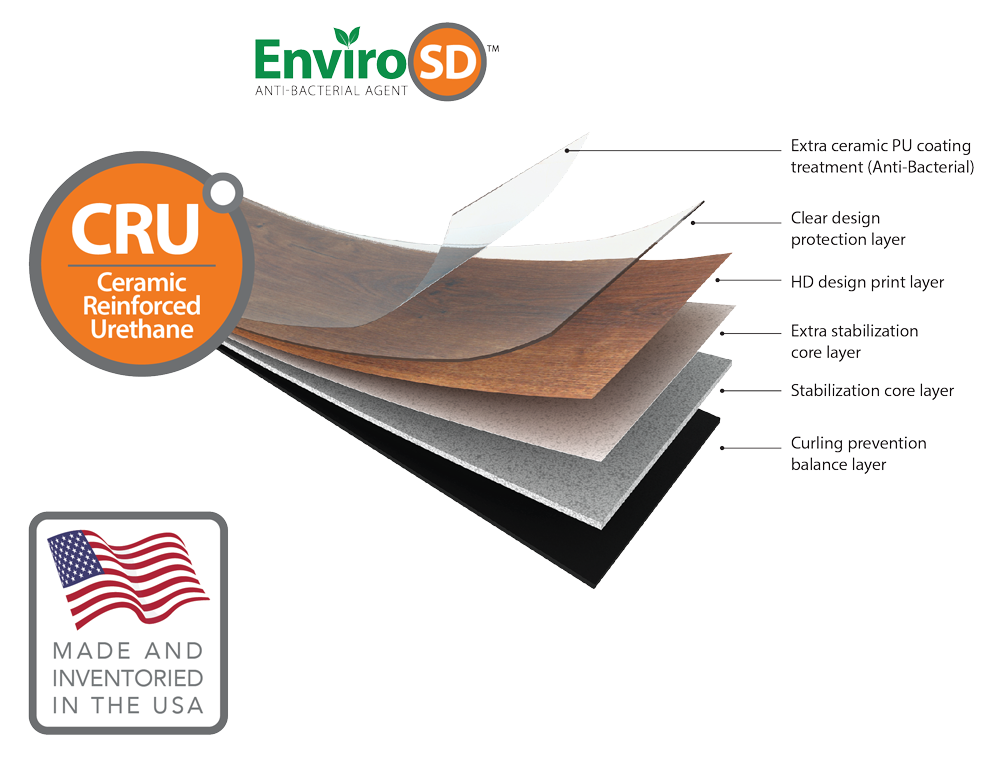

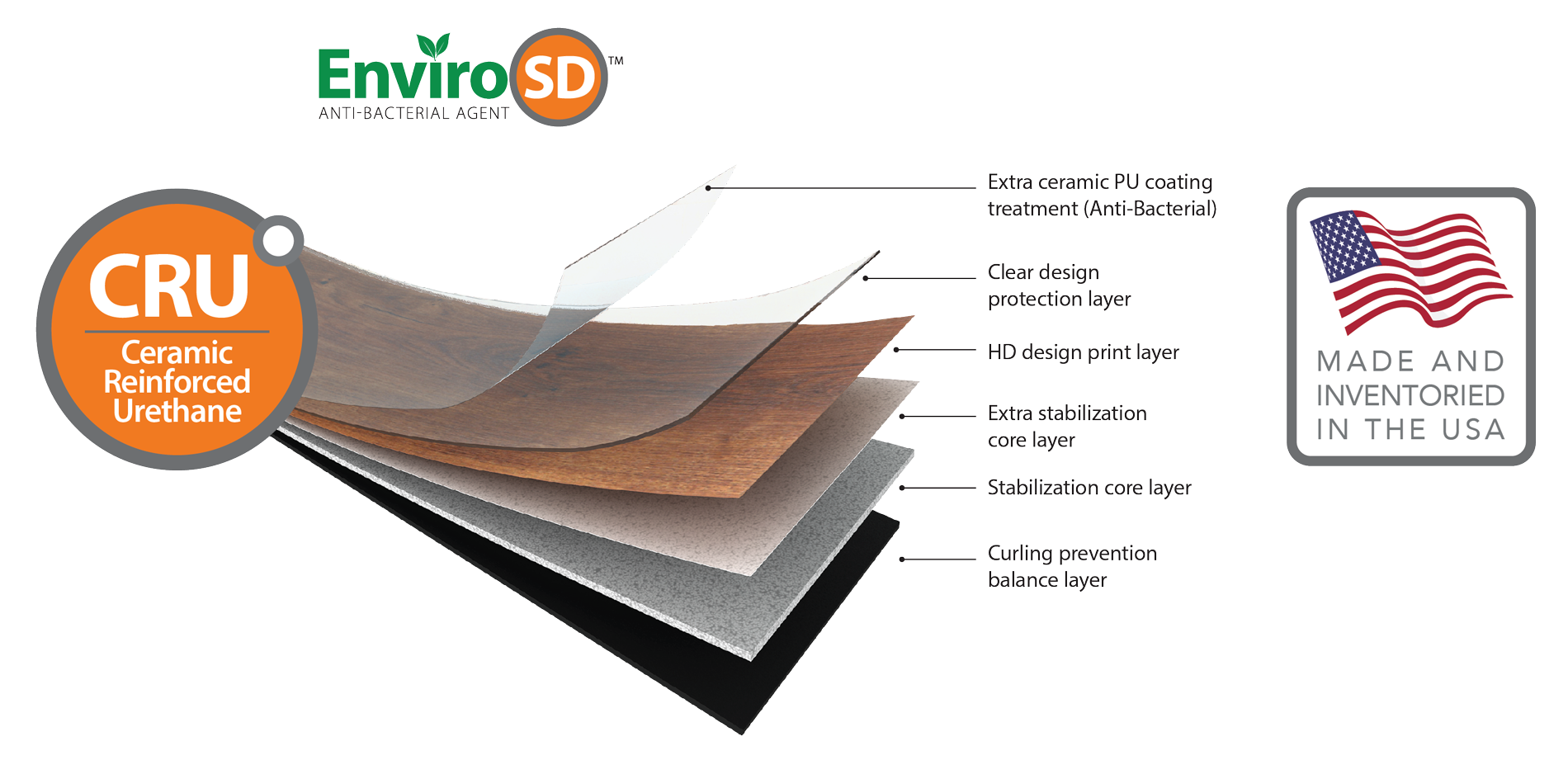

Plank Internal Structure Diagram Plank Internal Structure Diagram
Radius Floor
Radius Floor
Radius Floor
Download Full Product Brochure

High Contrast

Visuals

Many of the Compass visuals are high contrast visuals, and therefore not all colors and/or textures represented in the full design will be visible in the single swatch alone. Items marked with the symbol are considered high contrast. We suggest viewing the full size and room scene visuals of these designs.

Back To Top

degreeMarkCompass™Planks

6″ × 48″

Larger View Room Scene Room Scene Room Scene
CP233_C91

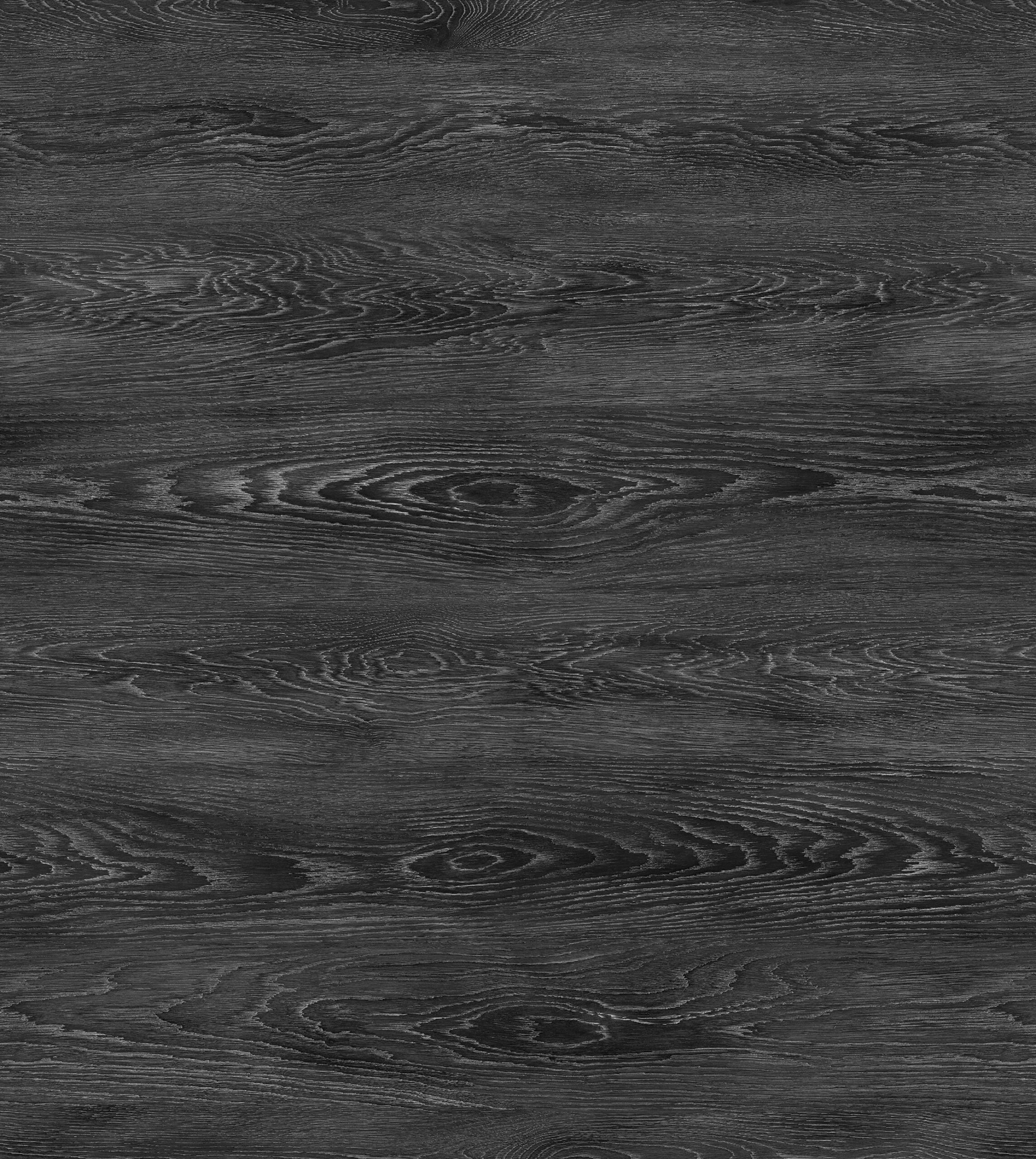

CP233_C91Brooklyn

Larger View Room Scene Room Scene Room Scene
CP316_C04

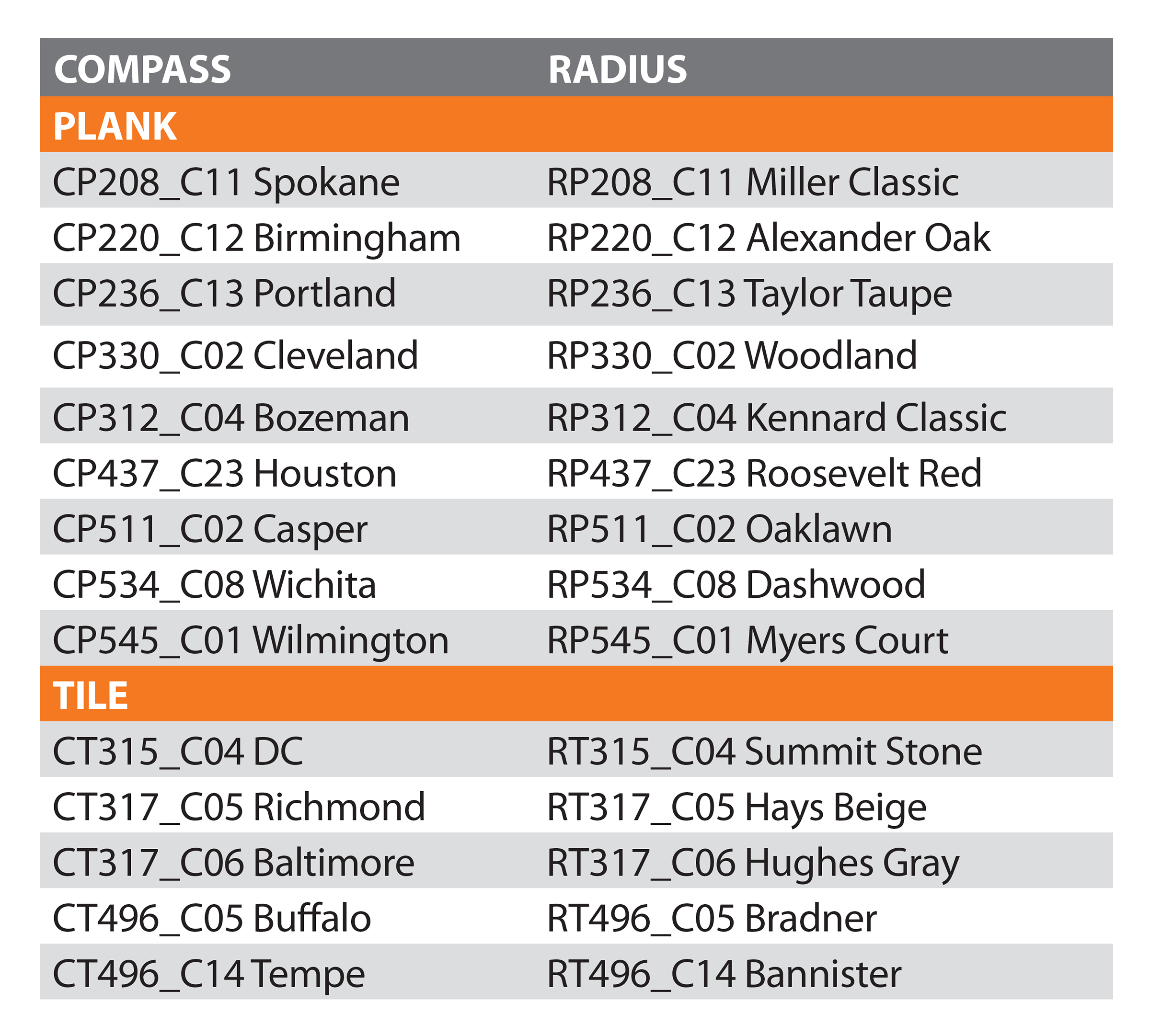

CP316_C04StoweCrossover to Radius Nye Sawn Cut RP316_C04

Larger View Room Scene Room Scene
CP421_03

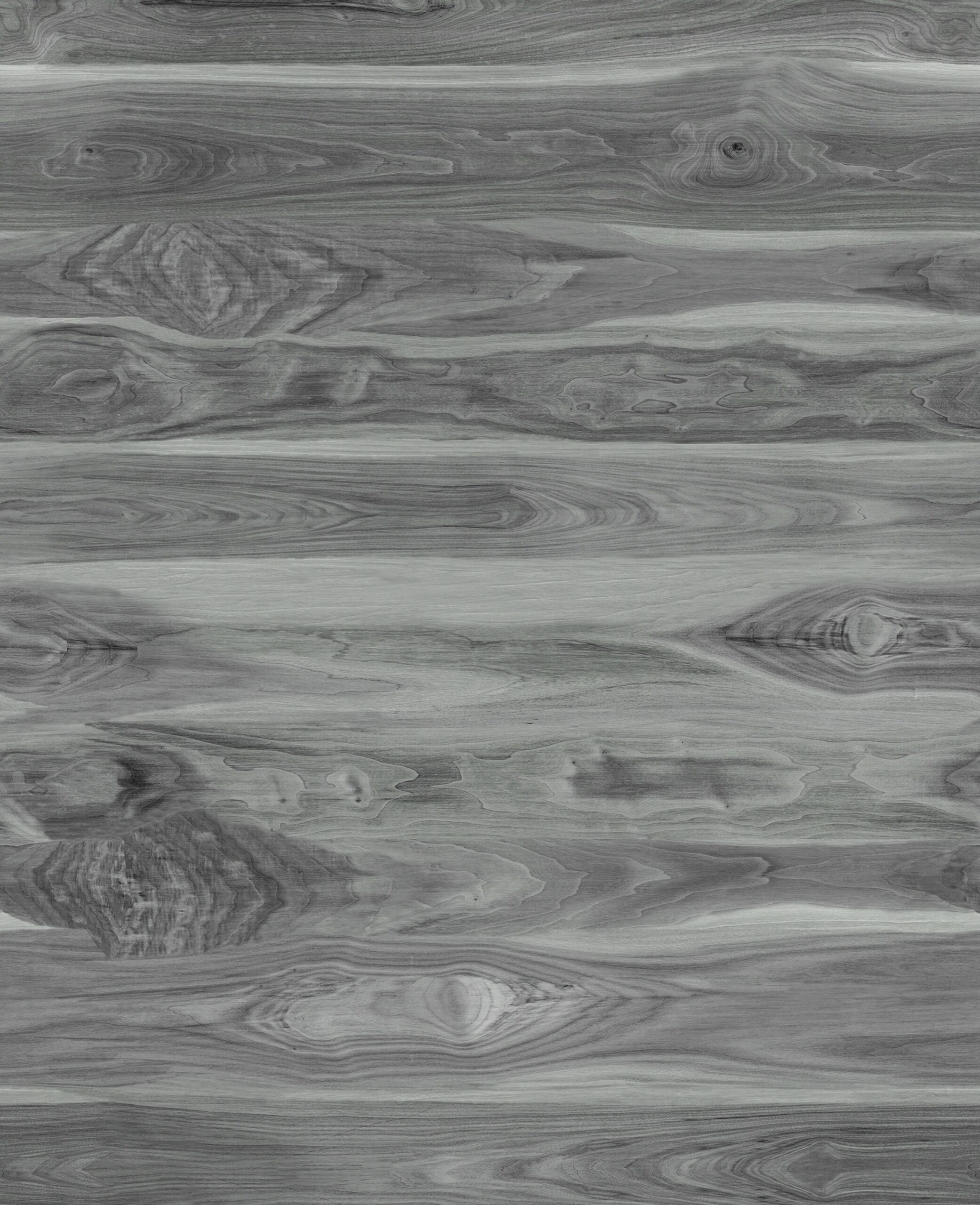

CP421_03Chicago

Larger View Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene
CP221_C36

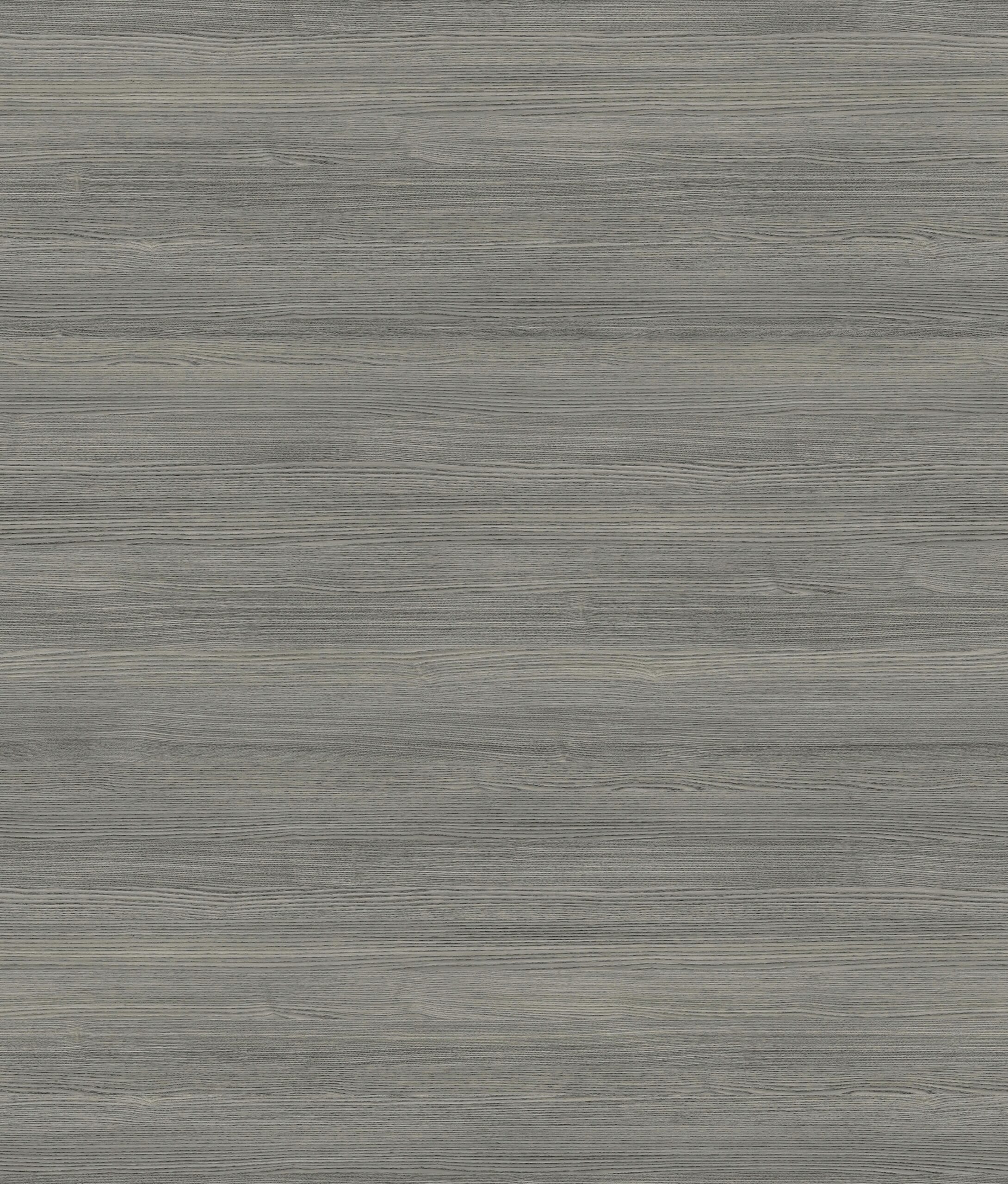

CP221_C36San Francisco

Larger View Room Scene Room Scene Room Scene Room Scene
CP211_C11

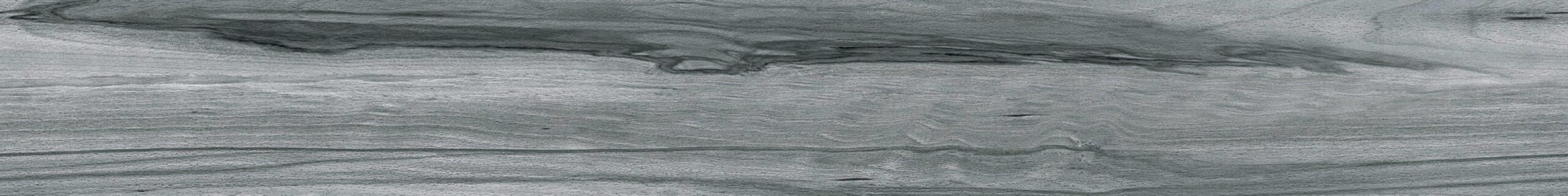

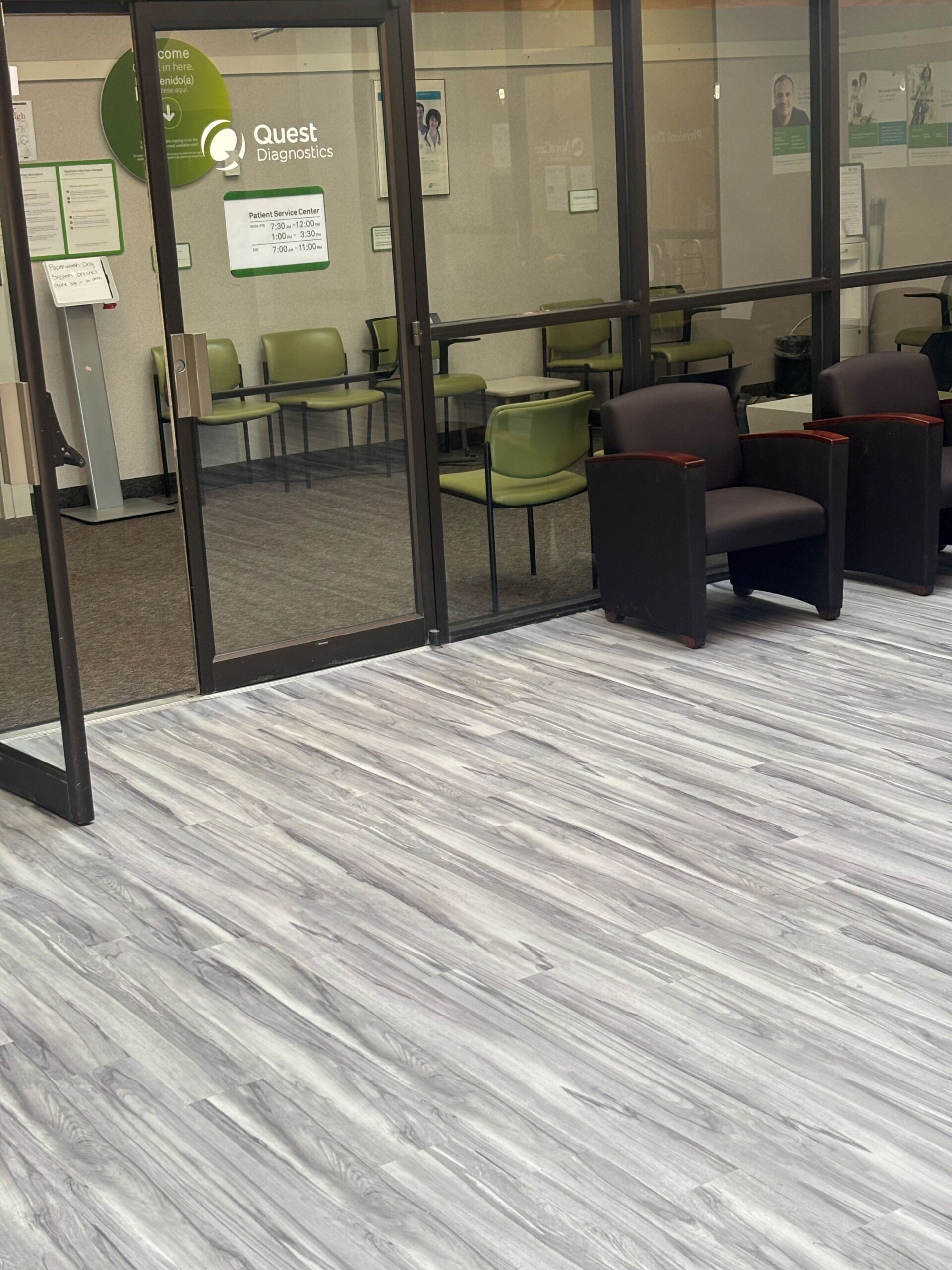

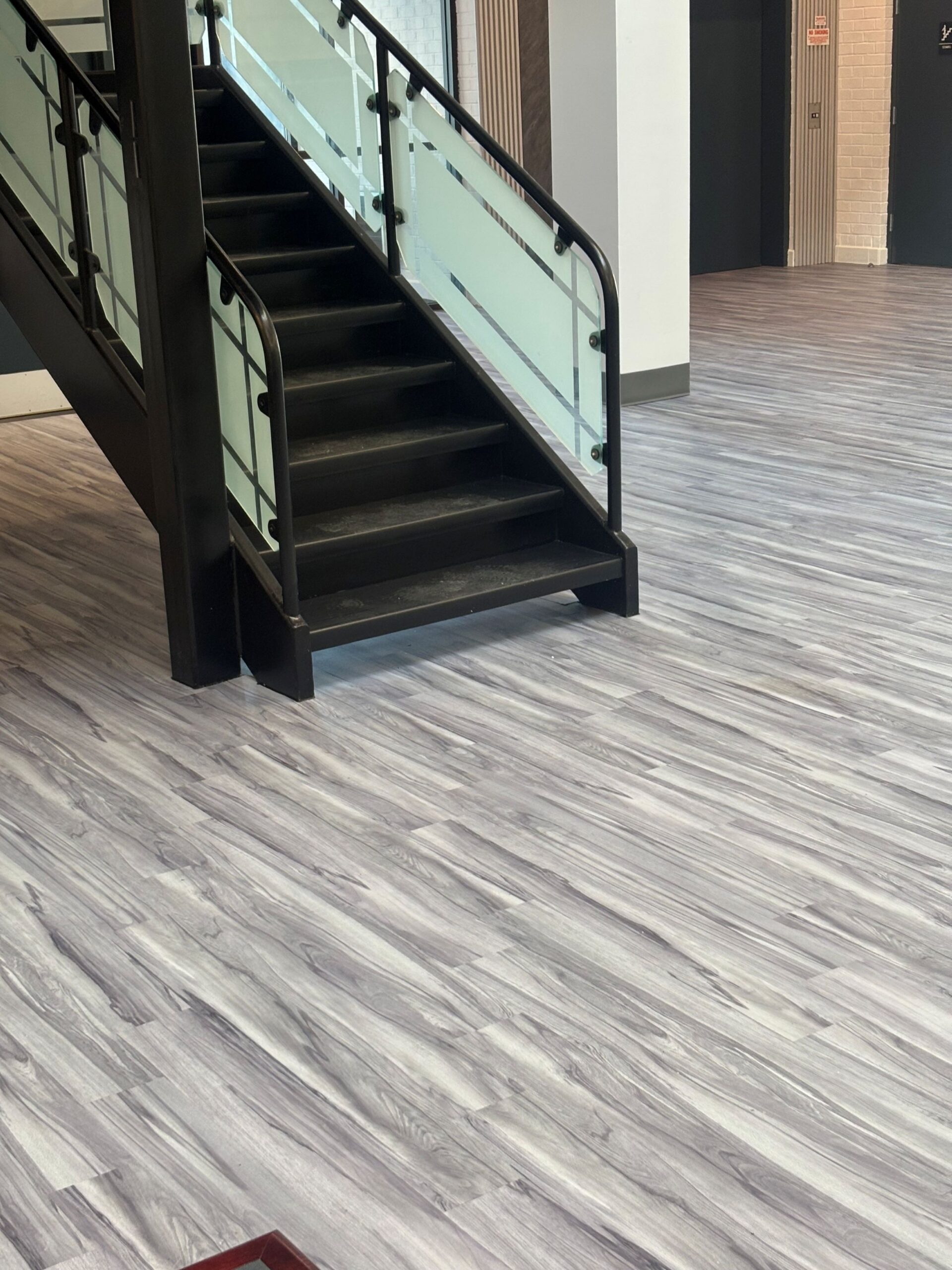

CP211_C11Seattle

Larger View Room Scene Room Scene
CP406_C010

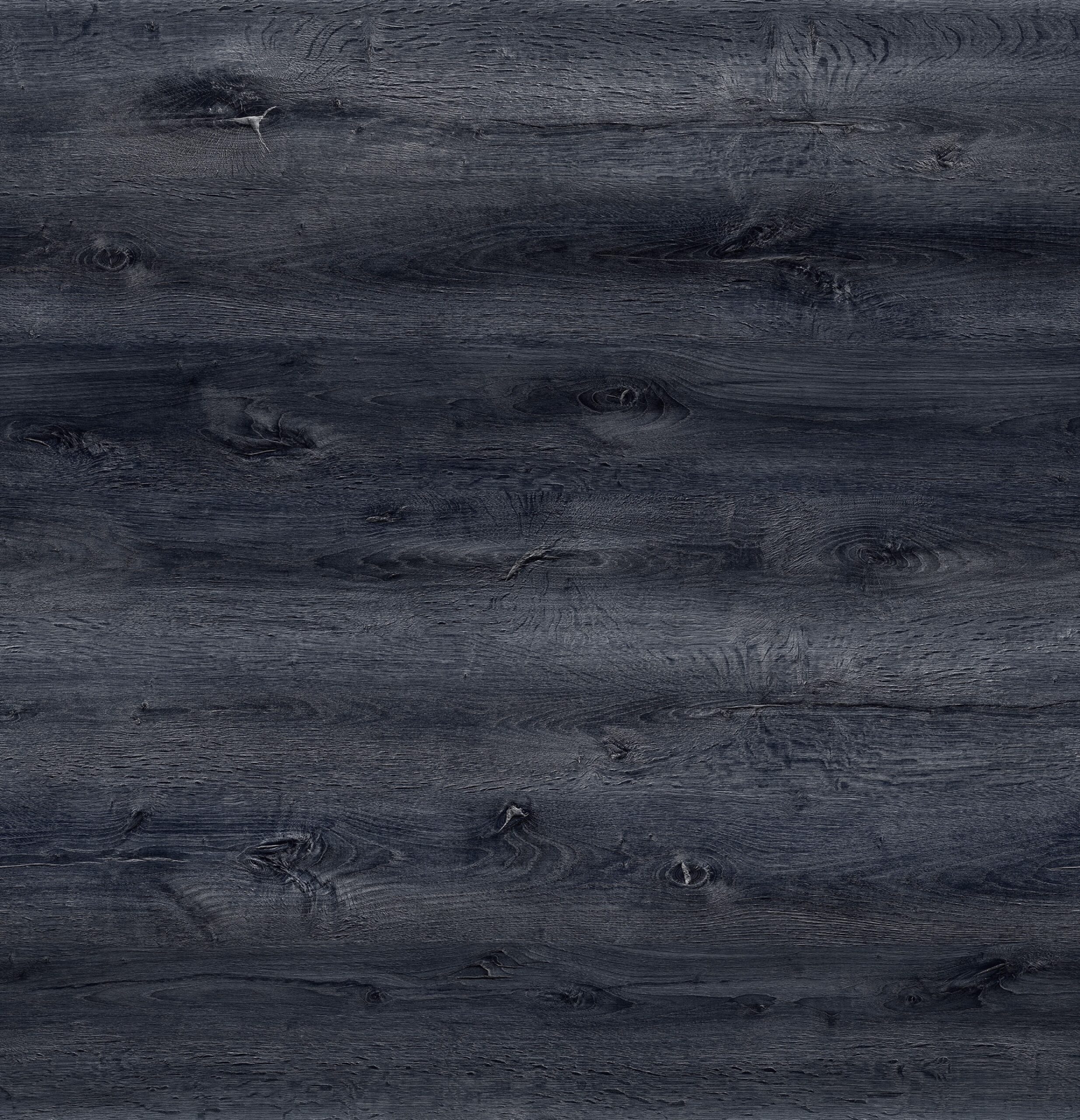

CP406_C10St. Louis

Larger View Room Scene
CP427_C02

CP427_C02Charleston

Larger View Room Scene Room Scene Room Scene Room Scene

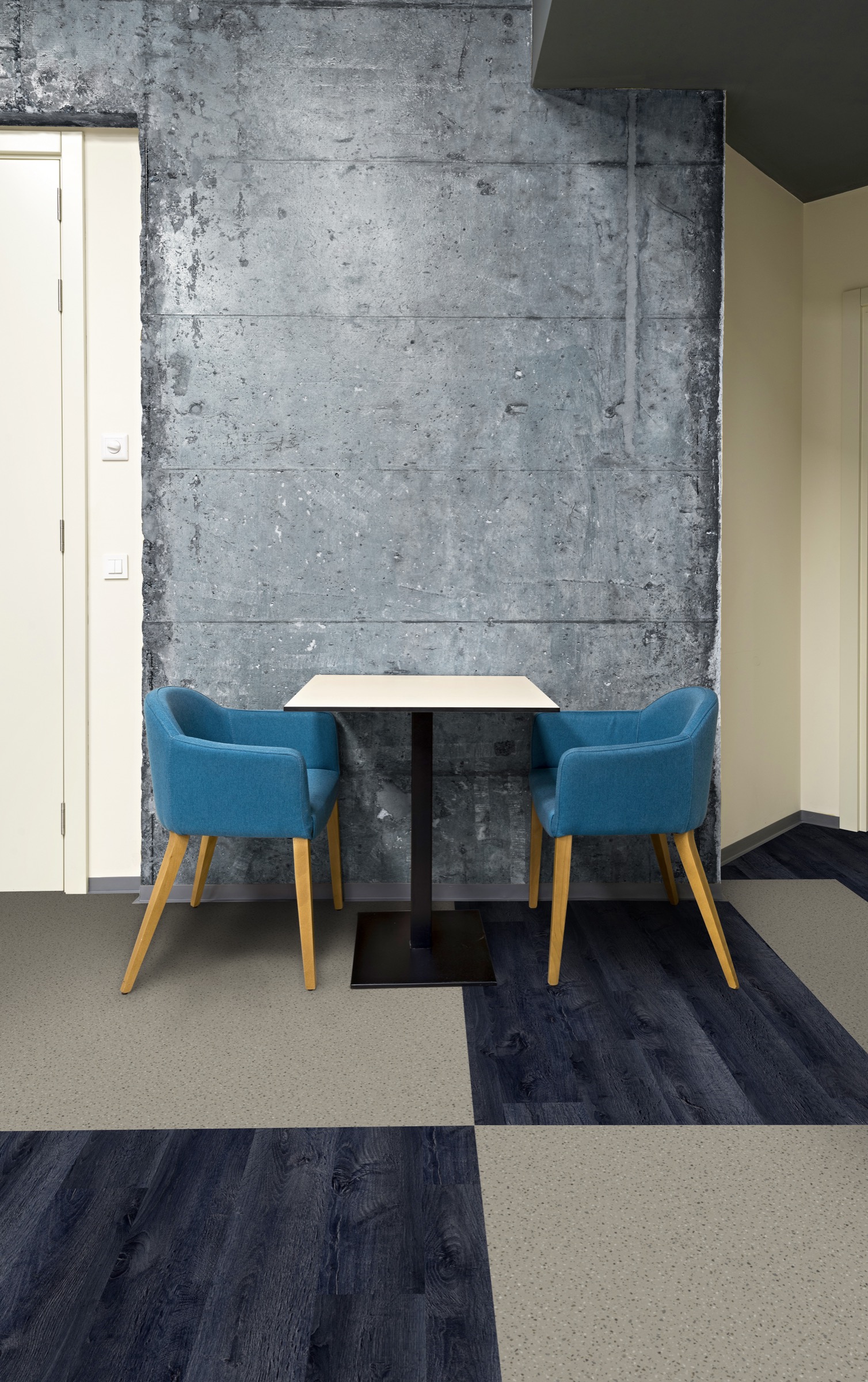

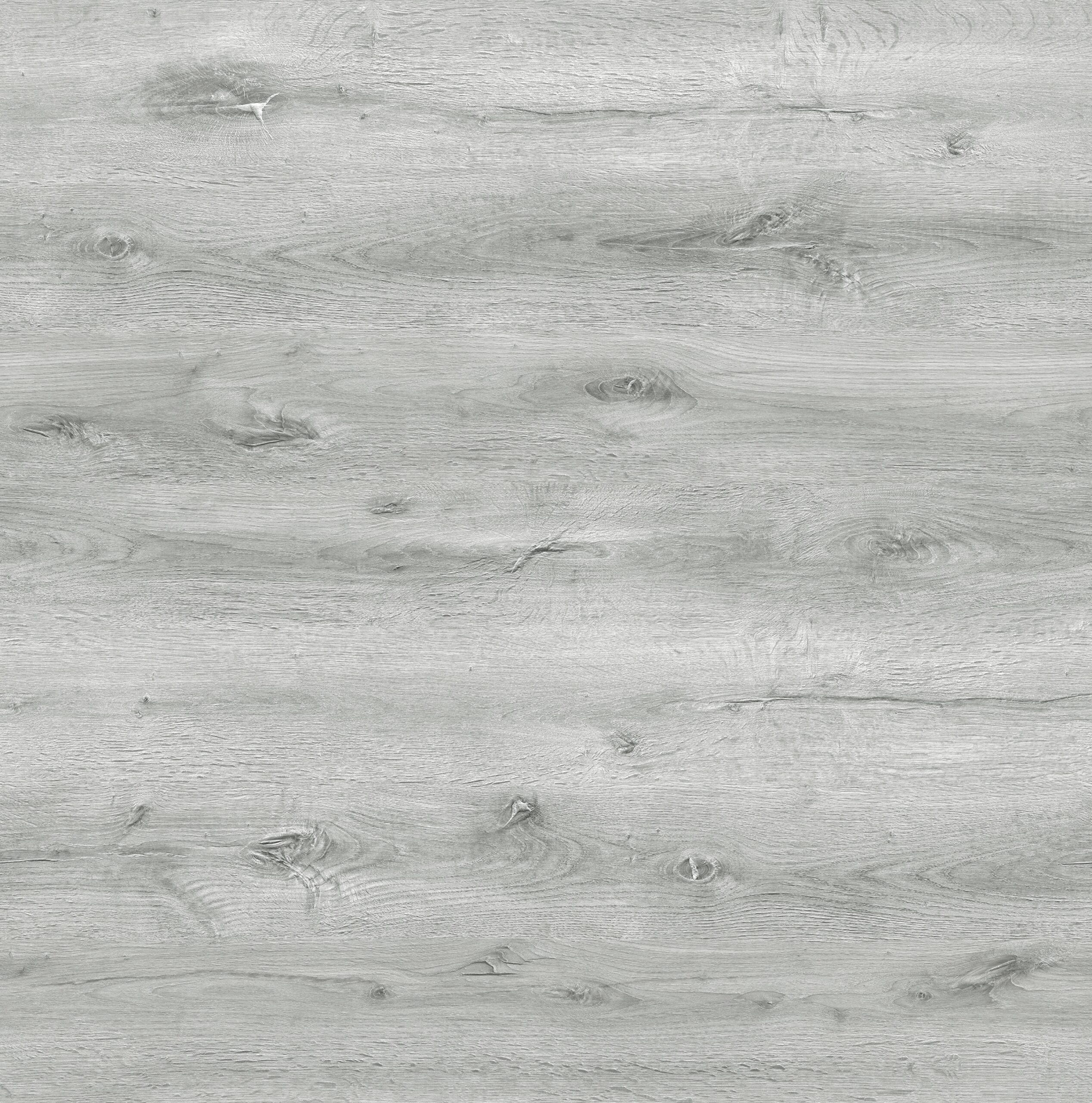

CP406_C09Park City

Larger View Room Scene Room Scene Room Scene Room Scene
CP240_C10

CP240_C10Toronto

Larger View Room Scene Room Scene CP330-C21 Monterrey and CP421-03 Chicago Room Scene Room Scene

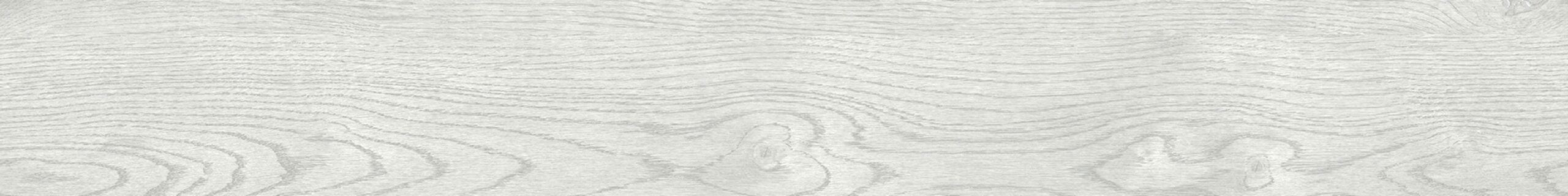

CP330_C21

CP330_C21Monterey

Larger View Room Scene Room Scene
CP427_C01

CP427_C01New Orleans

Larger View Room Scene
CP420_C03

CP420_C03Los Angeles

Larger View Room Scene Room Scene

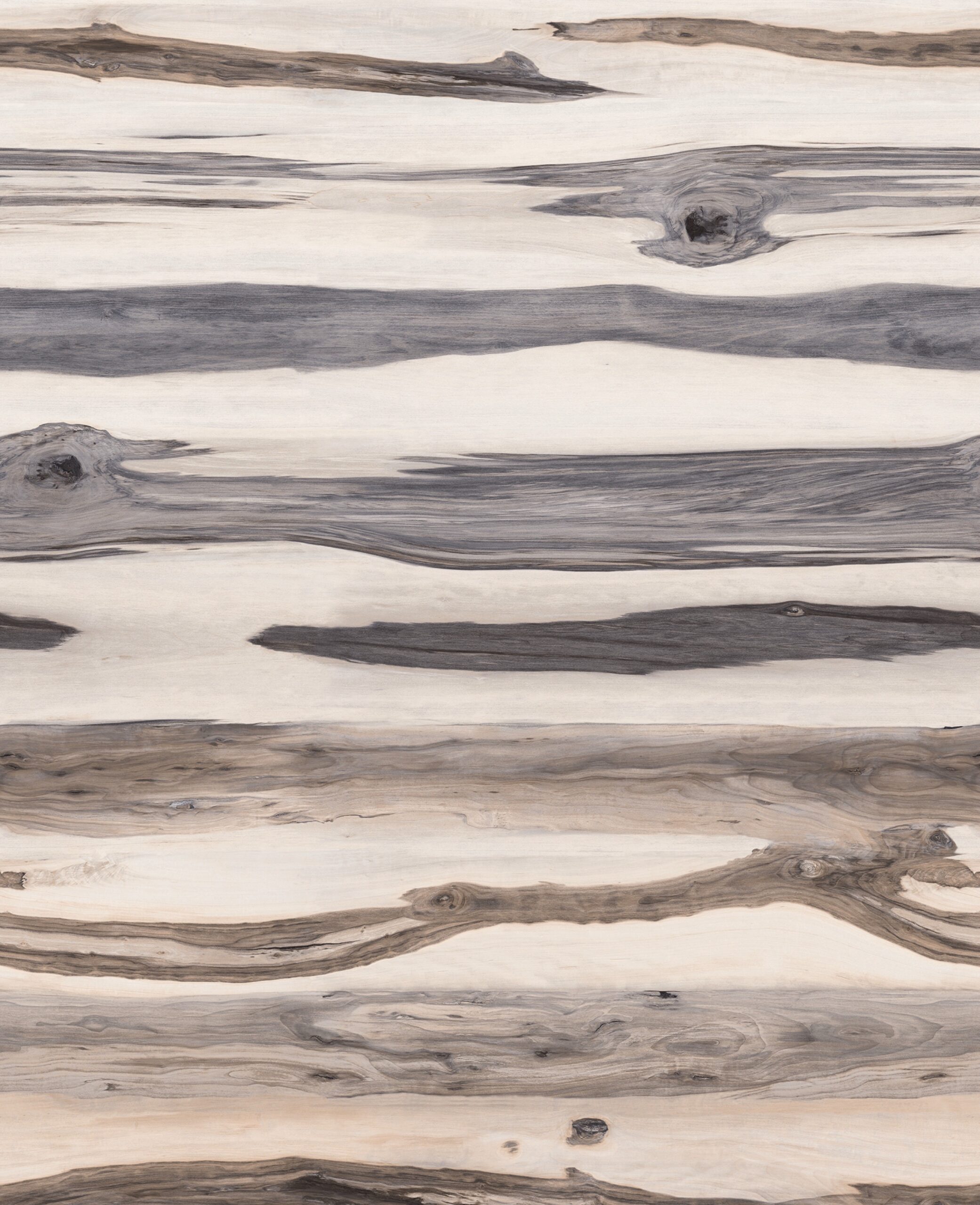

CP420_C01

CP420_C01Nashville

Larger View Room Scene
CP420_C02

CP420_C02Montreal

Larger View Room Scene Room Scene Room Scene
CP422_C01

CP422_C01Hilo

Larger View Room Scene CP263-13 Aspen and CP330-02 Cleveland Room Scene Room Scene Room Scene Room Scene
CP263_C13

CP263_C13Aspen

Larger View Room Scene Room Scene Room Scene Room Scene Room Scene

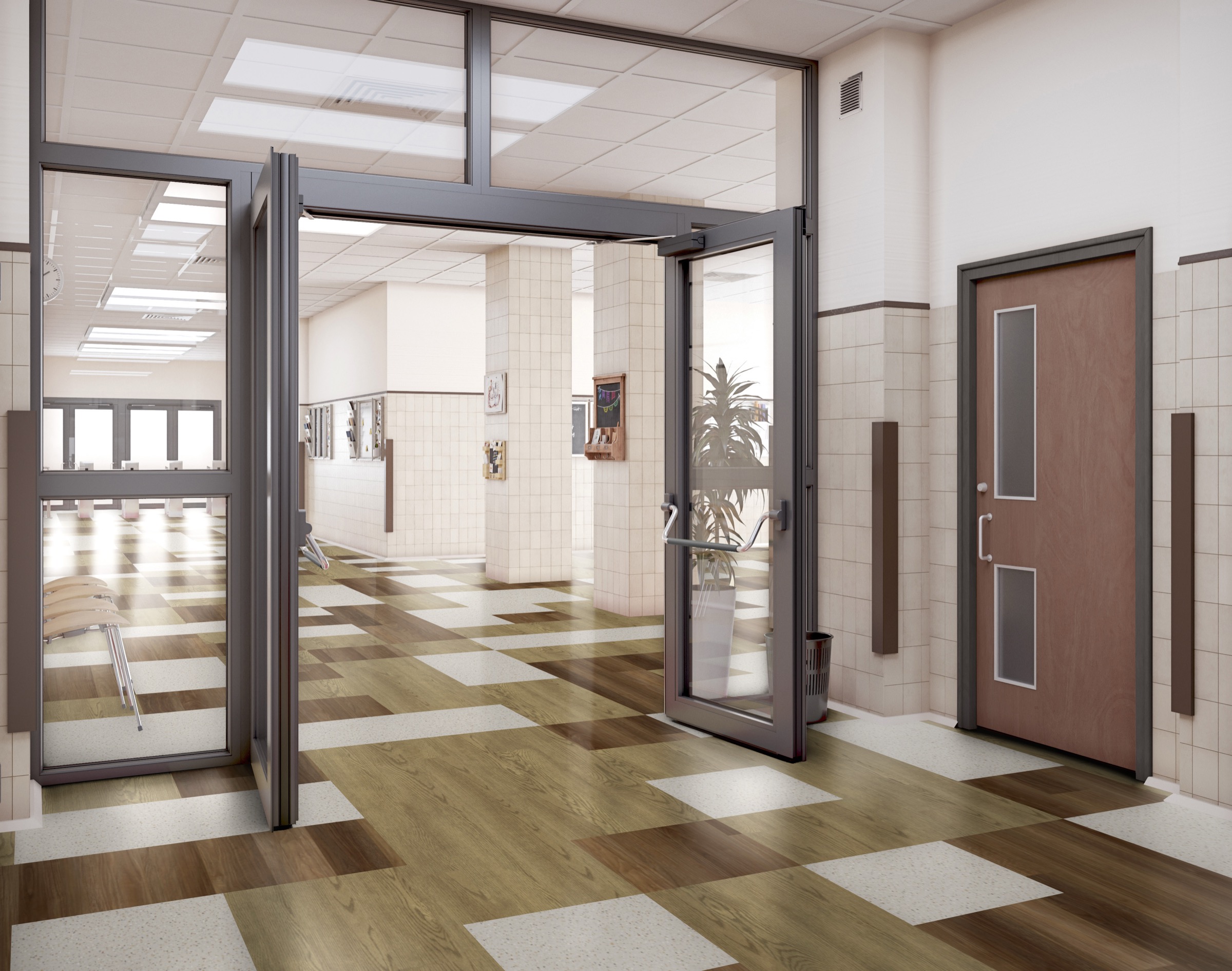

CP330_C22

CP330_C22Omaha

Larger View Room Scene Room Scene Room Scene Room Scene
CP421_C01

CP421_C01Austin

Larger View Room Scene CP330-02 Cleveland and C236-13 Portland Room Scene
C236_C13

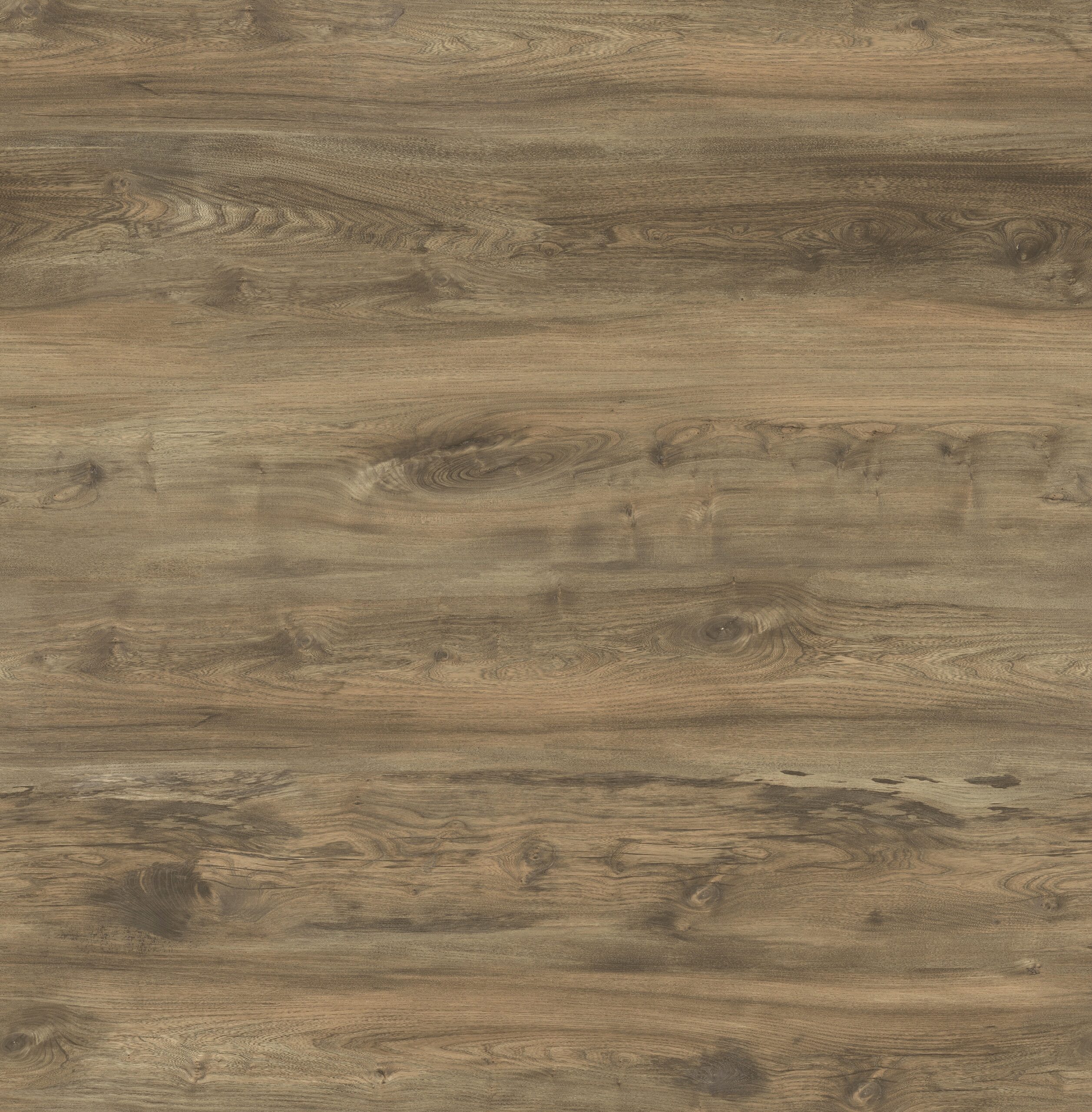

C236_C13PortlandCrossover to Radius Taylor Taupe RP236_C13

Larger View Room Scene Room Scene Room Scene Room Scene Room Scene
CP421_C02

CP421_C02Vancouver

Larger View Room Scene CP422-02 Asheville Room Scene
CP422_C02

CP422_C02Asheville

Larger View Room Scene Room Scene Room Scene

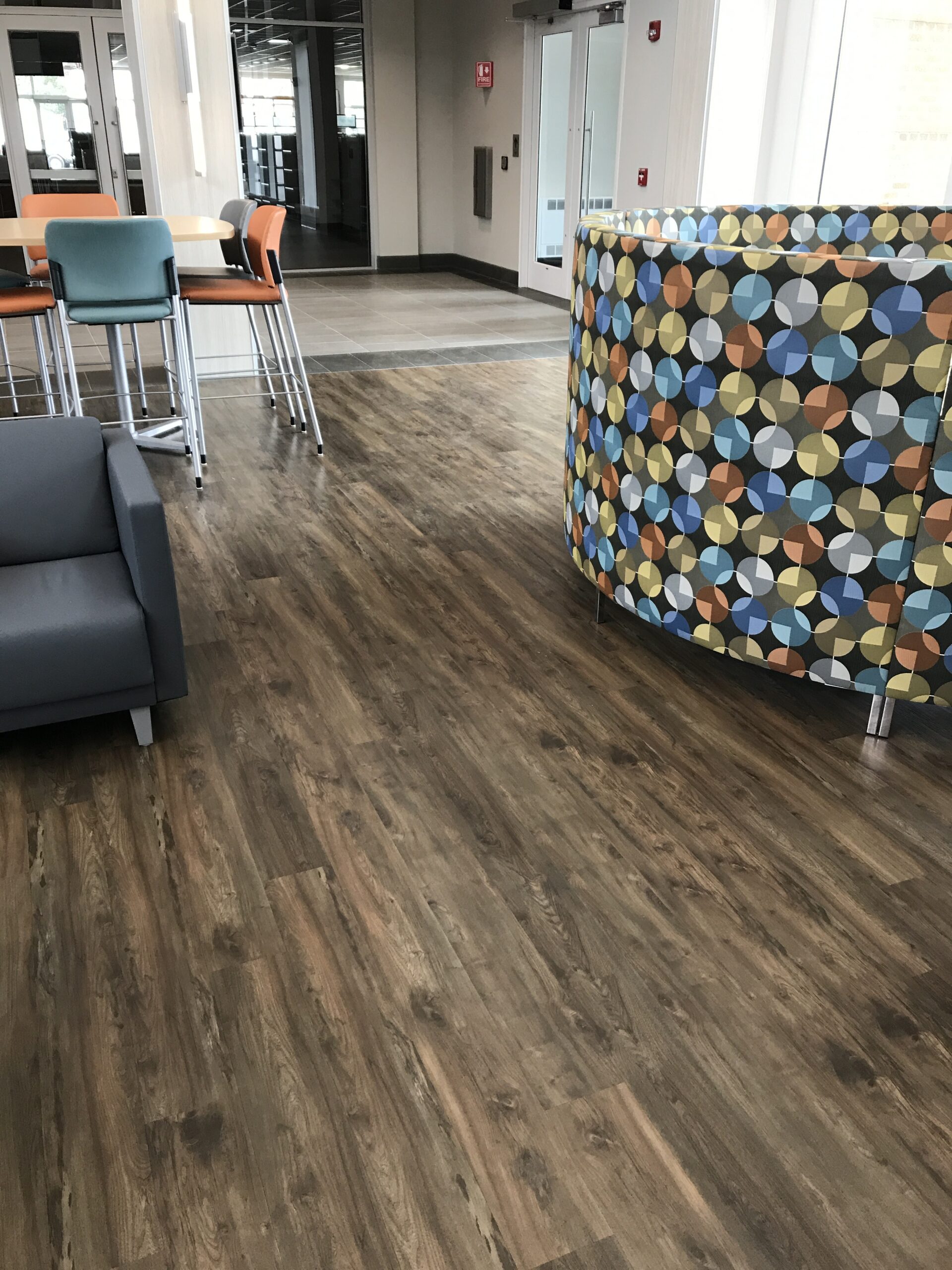

CP236_C15

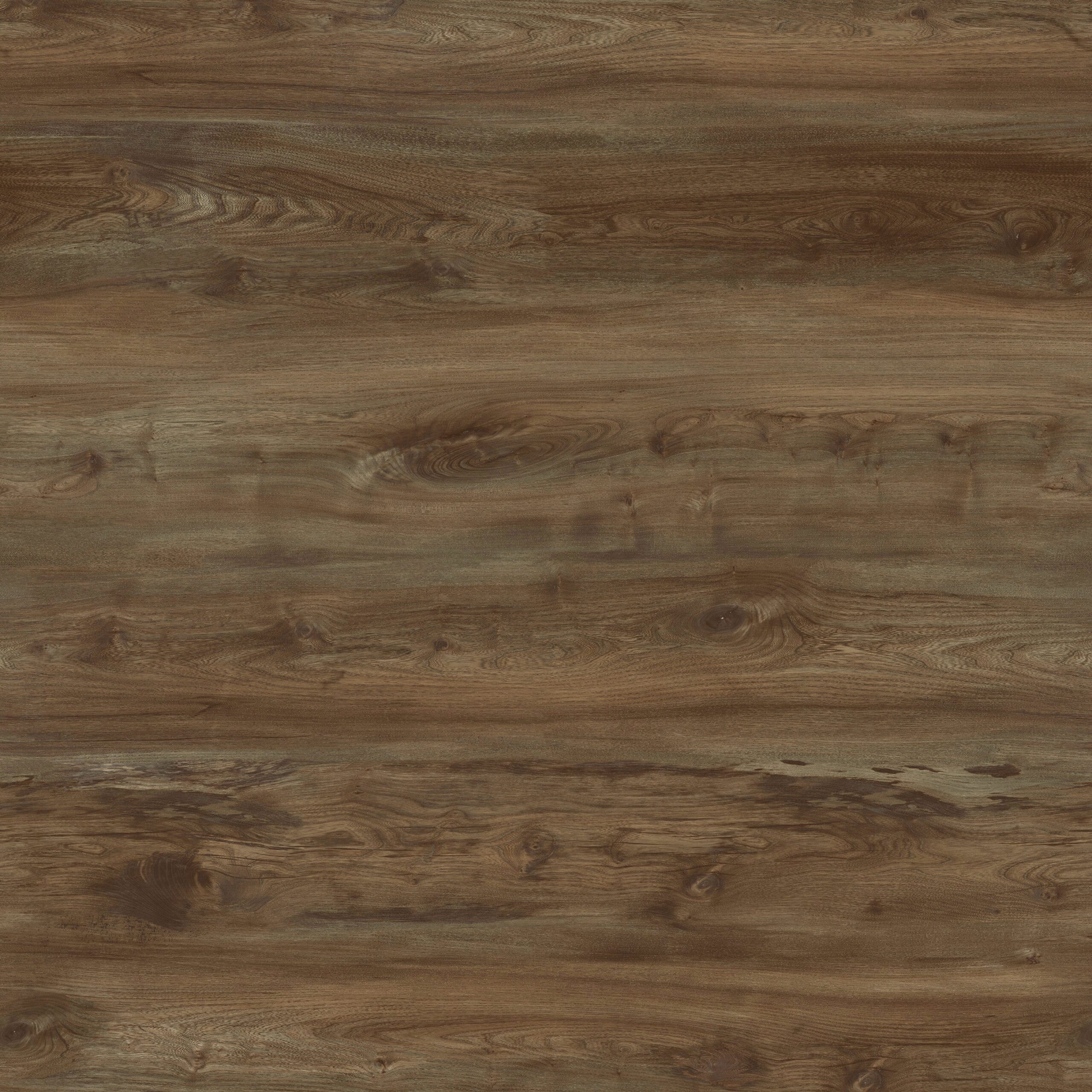

CP236_C15Denver

Larger View Room Scene Room Scene Room Scene Room Scene Room Scene
CP312_C04

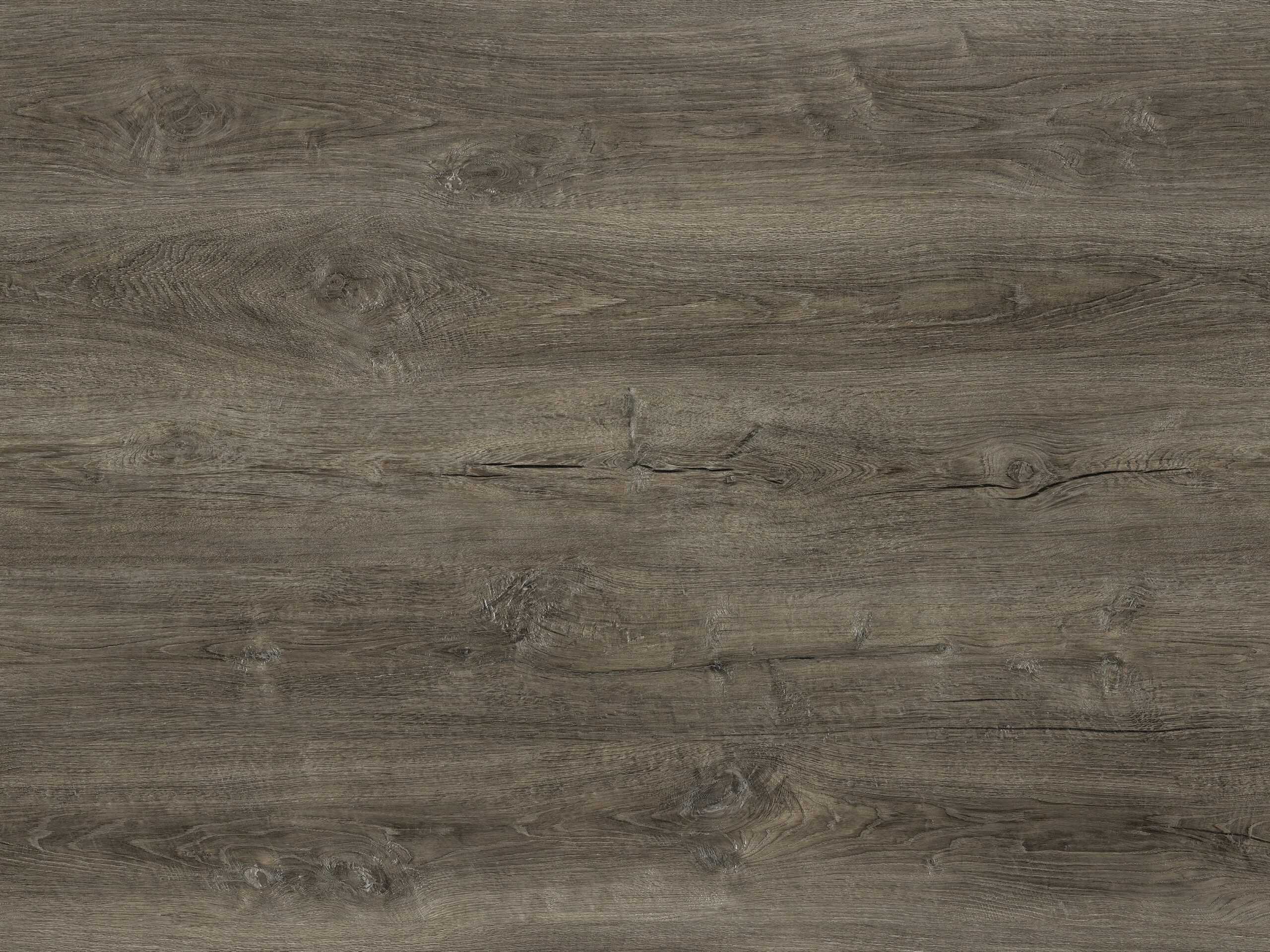

CP312_C04Bozeman

Larger View Room Scene CT317-C05 Richmond, CP220-C12 Birmingham and CP188-C14 Savannah
CP188_C14

CP188_C14SavannahCrossover to Radius Glenview RP188_C14

Larger View Room Scene CP330-02 Cleveland and C236-13 Portland Room Scene CP263-13 Aspen and CP330-02 Cleveland Room Scene Room Scene

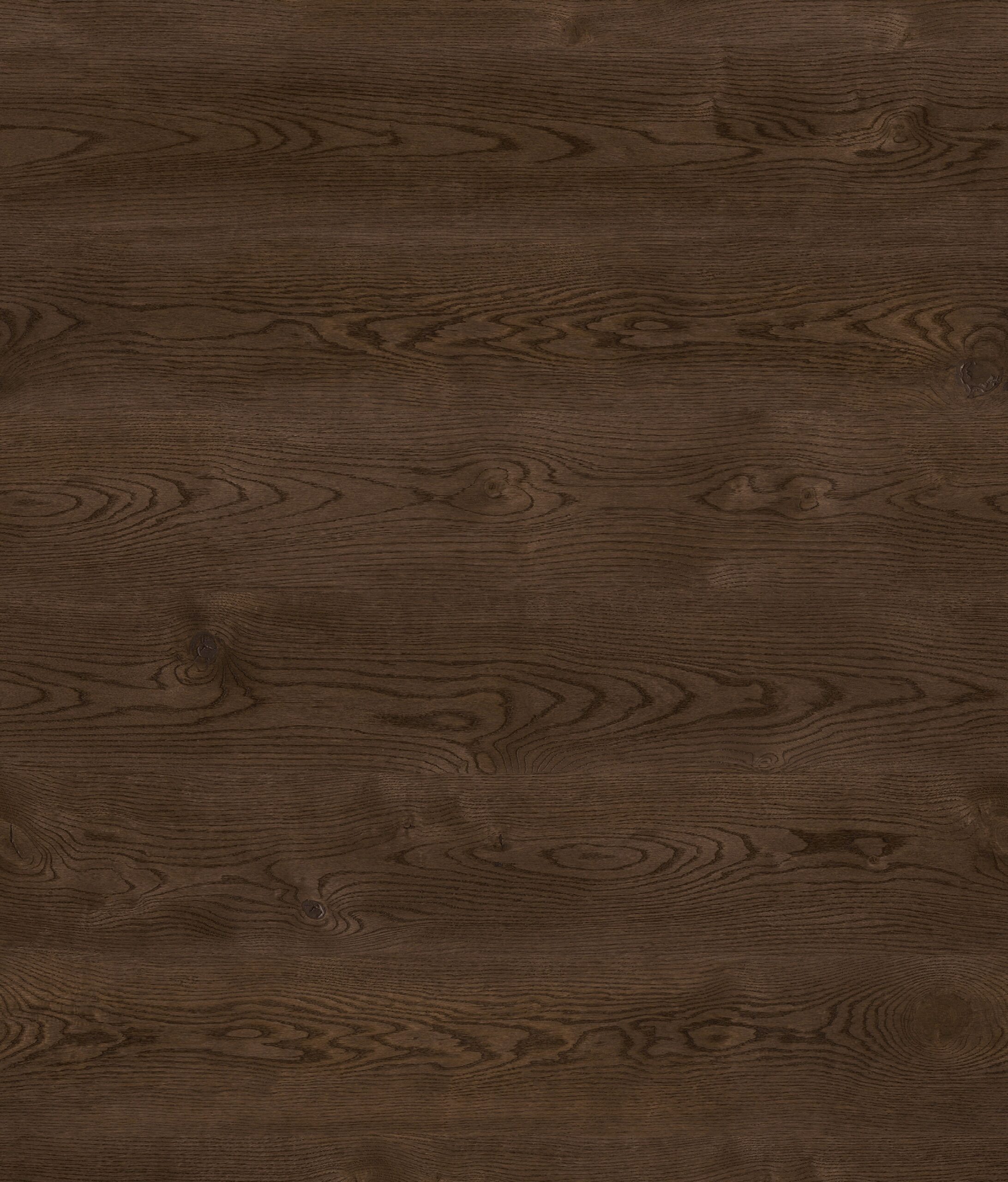

CP330_C02

CP330_C02ClevelandCrossover to Radius Woodland RP330_C02

Larger View Room Scene
CP406_C08

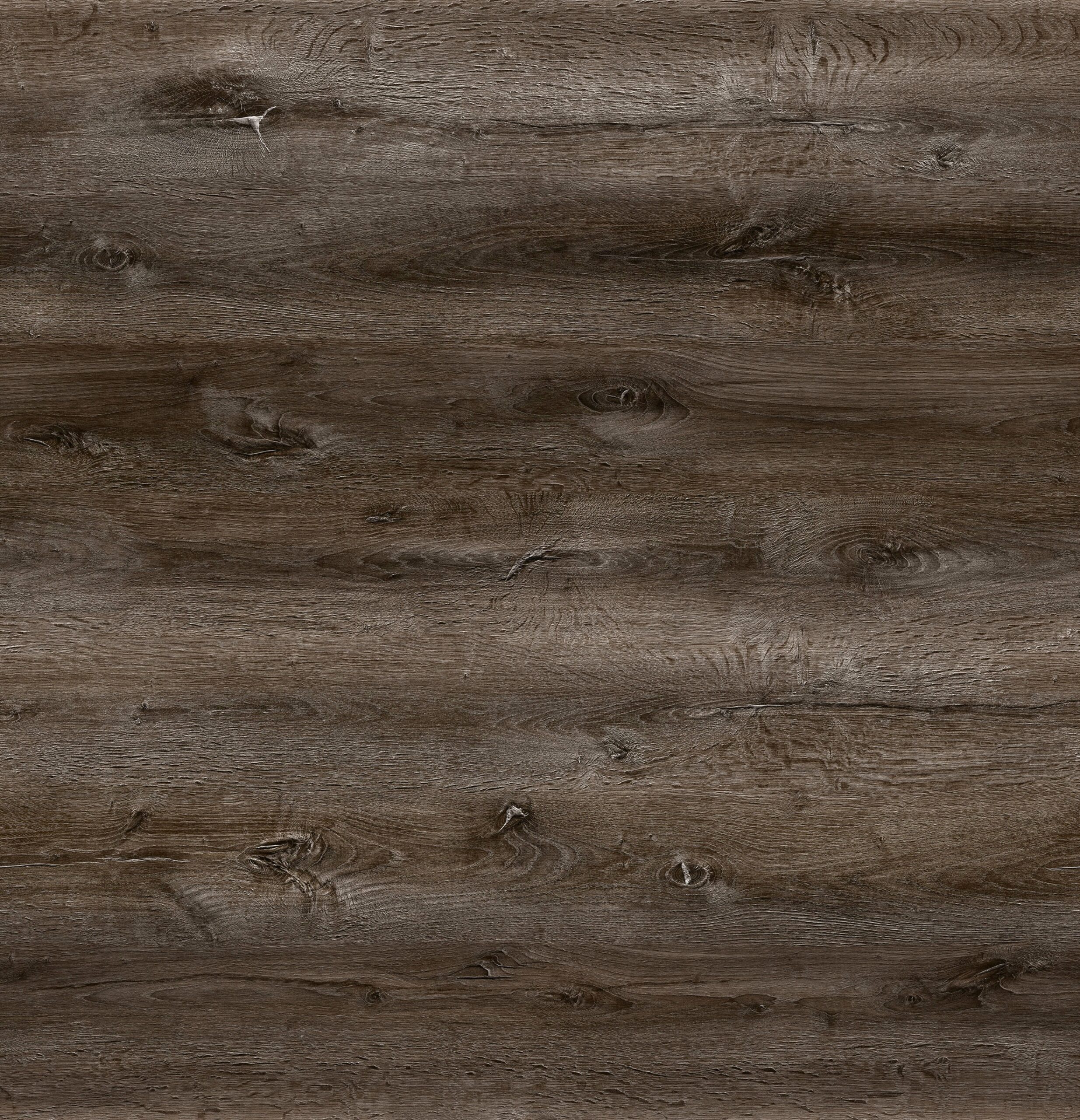

CP406_C08Dallas

Larger View Room Scene Room Scene Room Scene CT317-C05 Richmond, CP220-C12 Birmingham and CP188-C14 Savannah Room Scene

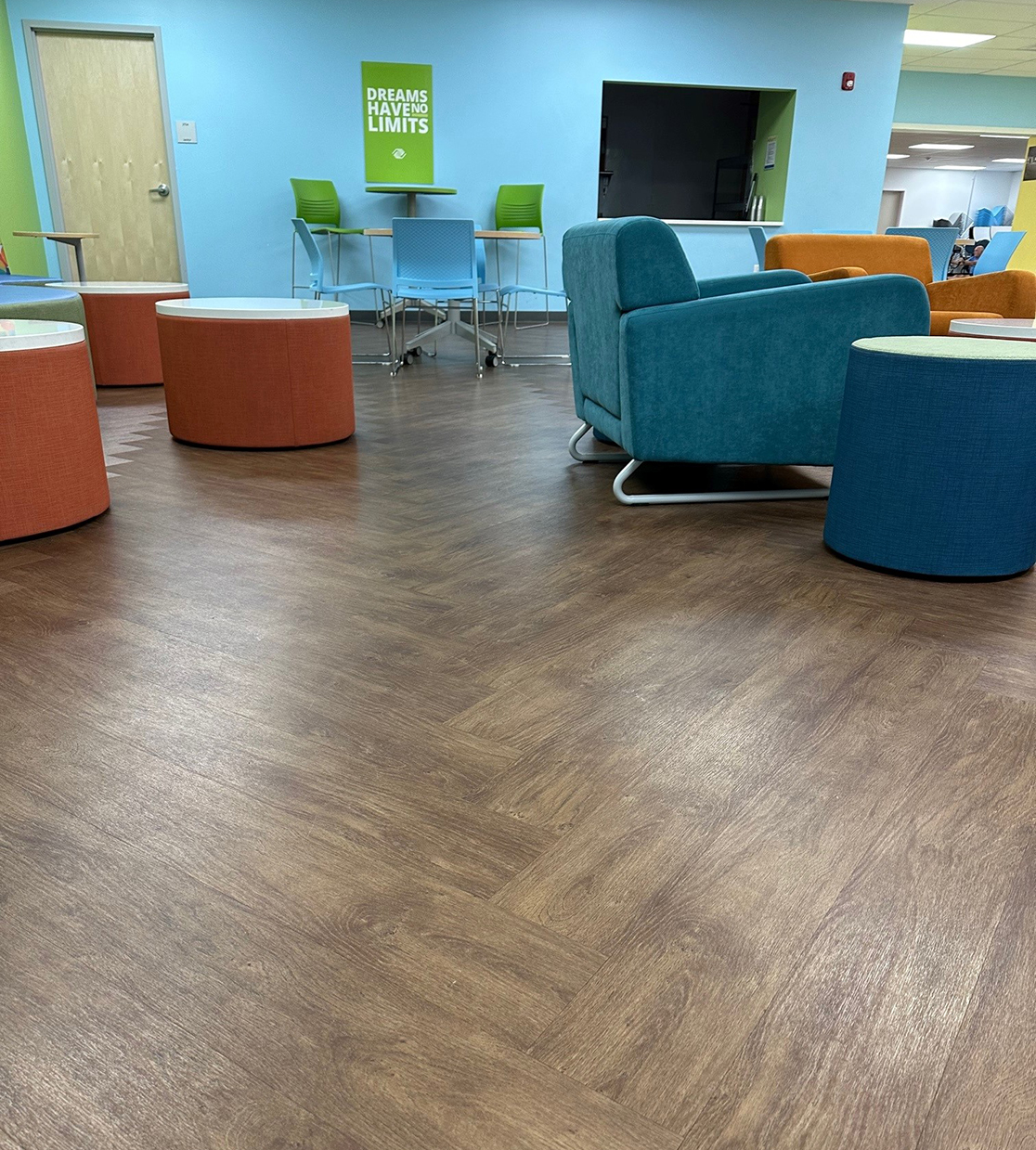

CP220_C12

CP220_C12BirminghamCrossover to Radius Alexander Oak RP220_C12

High Contrast

Visuals

Many of the Compass visuals are high contrast visuals, and therefore not all colors and/or textures represented in the full design will be visible in the single swatch alone. Items marked with the symbol are considered high contrast. We suggest viewing the full size and room scene visuals of these designs.

degreeMarkCompass™Tiles

18″ × 18″

Larger View Room Scene

CT419_C01Miami

Larger View Room Scene Room Scene

CT419_C02Calgary

Larger View Room Scene Room Scene Room Scene
CT423_C01

CT423_C01Phoenix

Larger View Room Scene CT405-09 Anchorage Room Scene Room Scene
CT405_C09

CT405_C09Anchorage

Larger View Room Scene Room Scene
CT405_C08

CT405_C08Boston

Larger View Room Scene
CT423_C02

CT423_C02New York

degreeMarkCompass™Tiles

12″ × 24″

Larger View Room Scene CT317-C05 Richmond, CP220-C12 Birmingham and CP188-C14 Savannah Room Scene Room Scene Room Scene Room Scene
CT317_C05

CT317_C05RichmondCrossover to Radius Hays Beige RT317_C05

Larger View Room Scene Room Scene
CT424_C03

CT424_C03Philly

Larger View Room Scene
CT315_C02

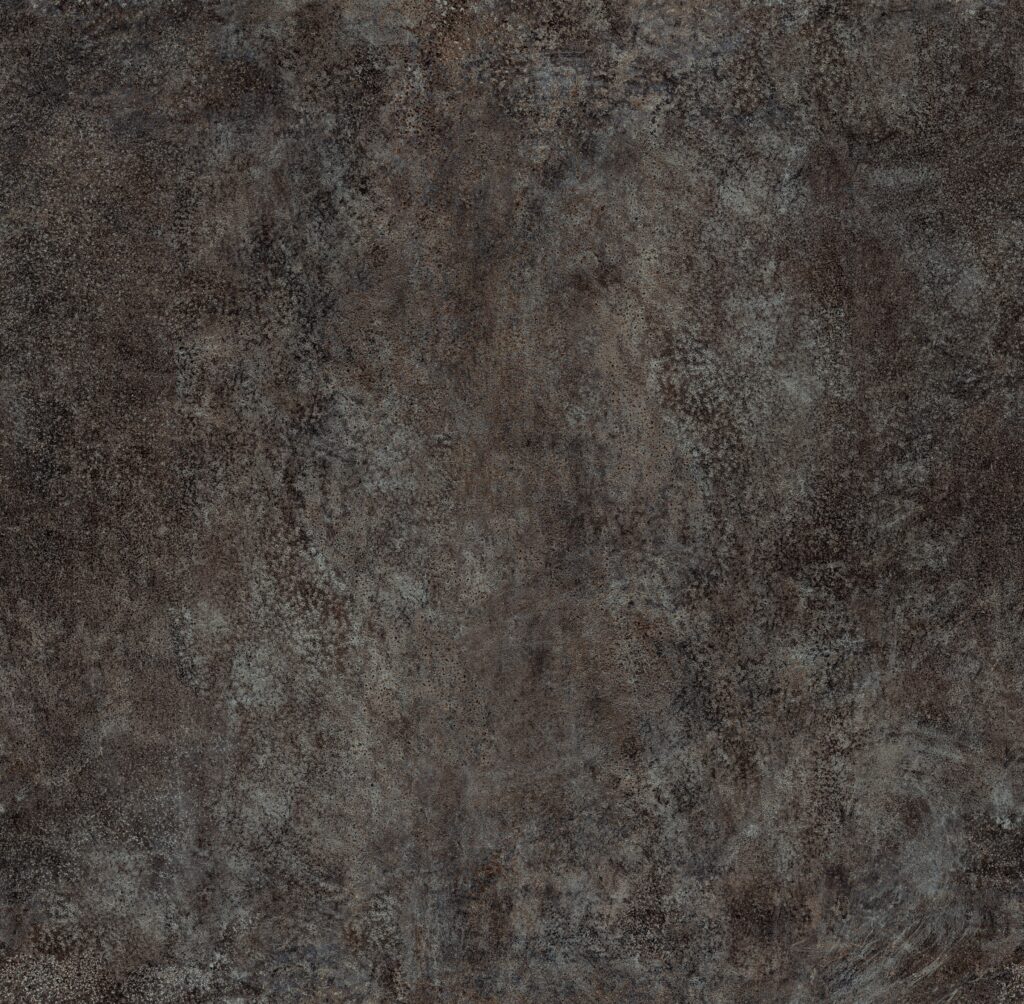

CT315_C02DetroitCrossover to Radius Eagle Point RT315_C02

Larger View Room Scene Room Scene
CT317_C07

CT317_C07Providence

Larger View Room Scene Room Scene Room Scene
CT424_C01

CT424_C01Louisville

Larger View Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene

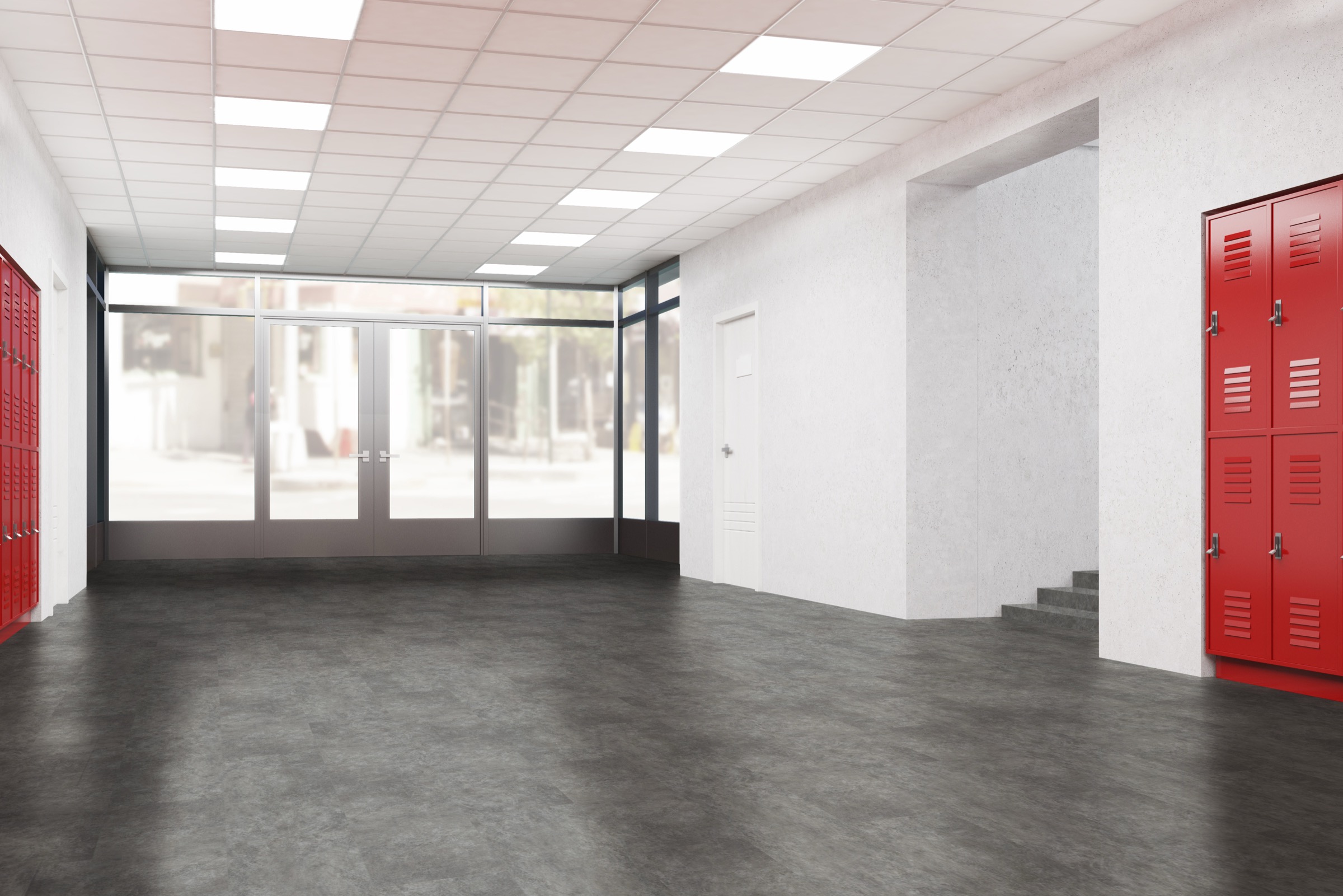

CT315_C04

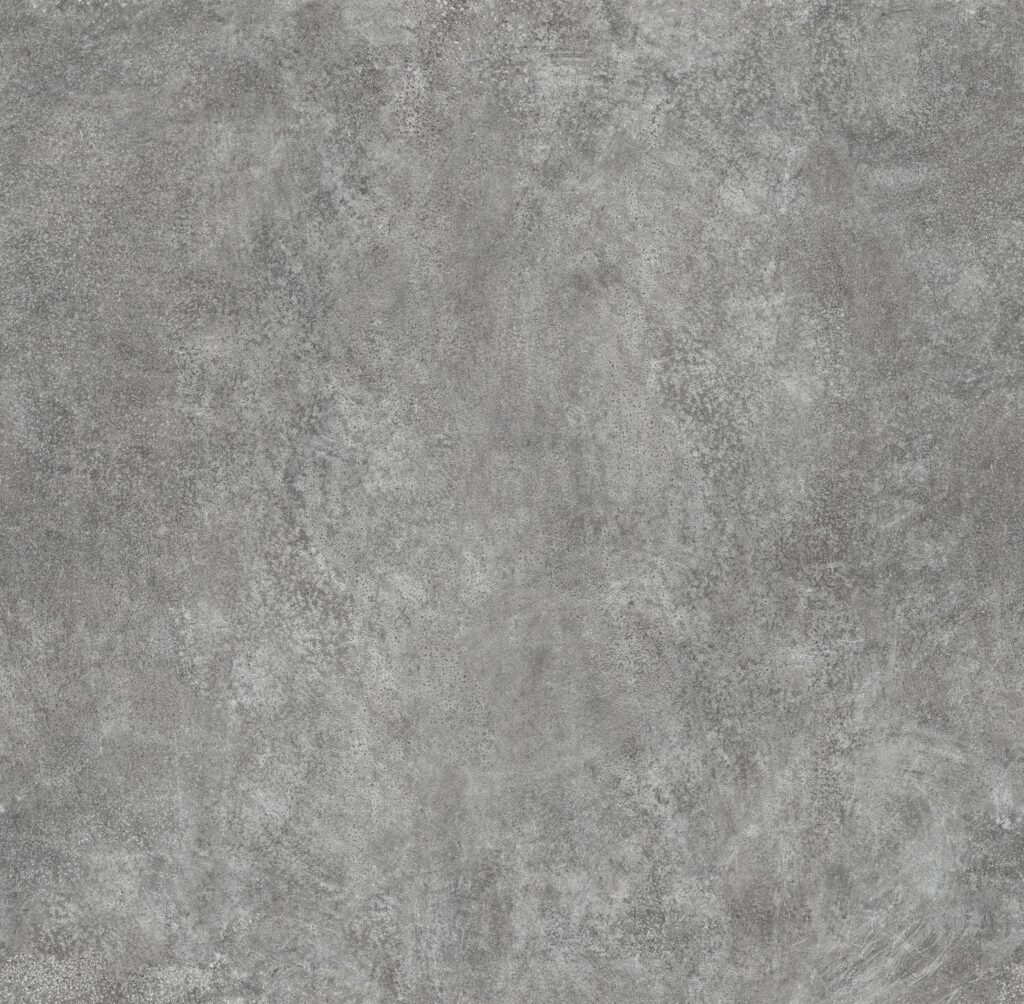

CT315_C04DCCrossover to Radius Summit Stone RT315_C04

Larger View Room Scene Room Scene Room Scene
CT317_C06

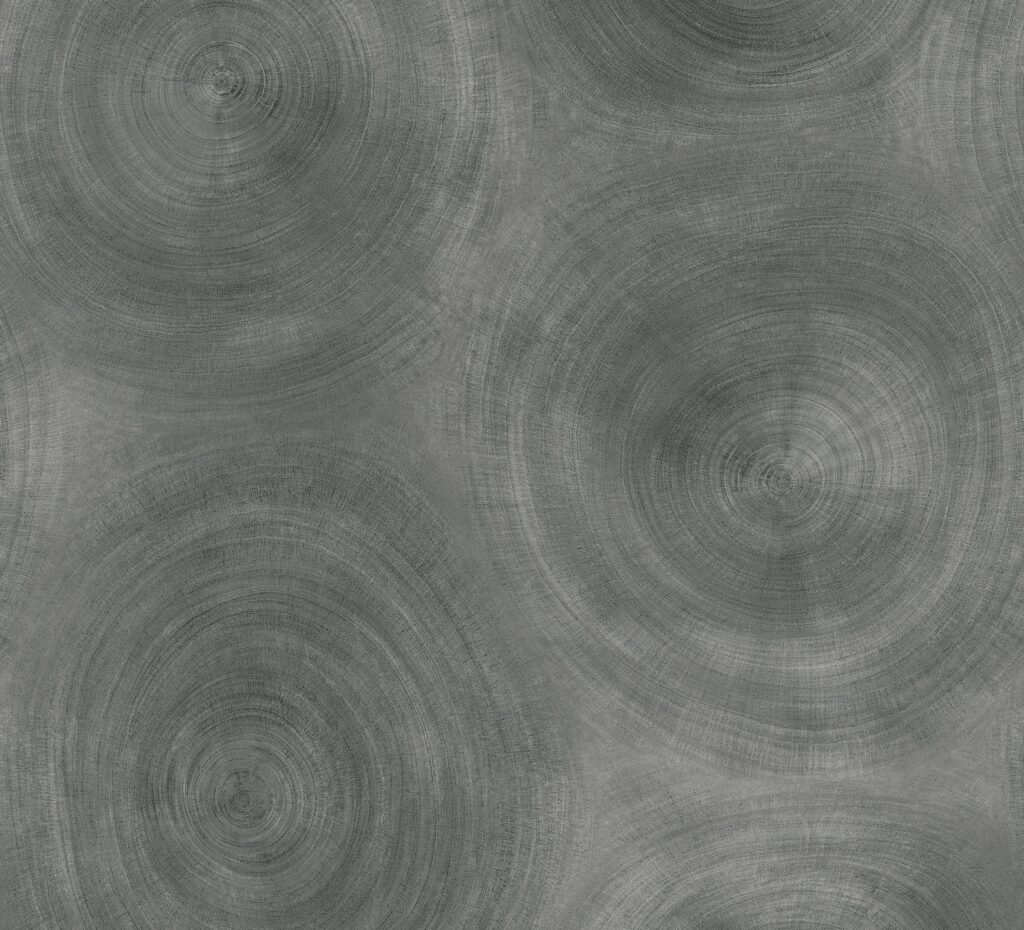

CT317_C06BaltimoreCrossover to Radius Hughes Gray RT317_C06

Larger View Room Scene Room Scene
CT424_C02

CT424_02Minneapolis



degreeMarkCompass Colors

12″ × 24″

Download Compass Colors Brochure
Larger View Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene

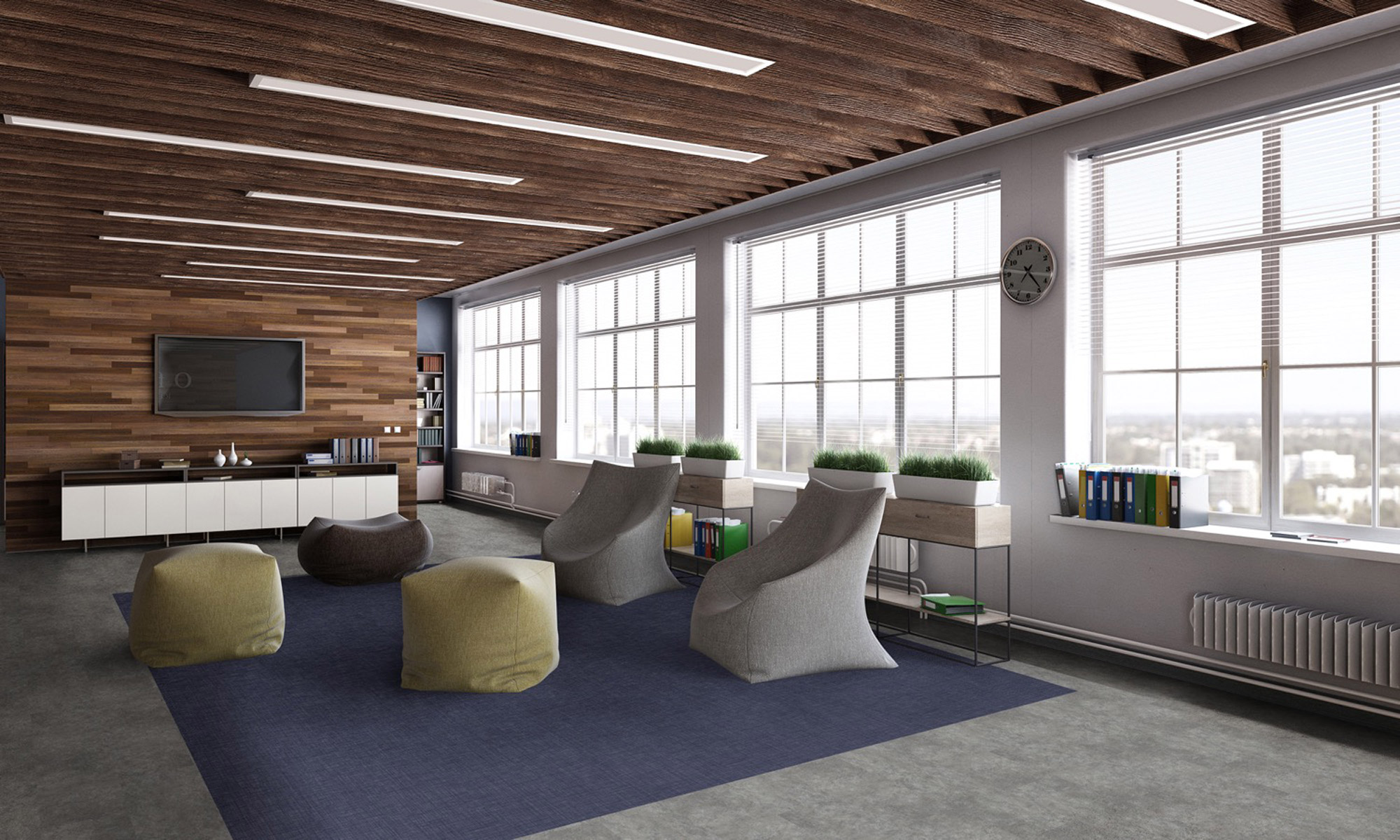

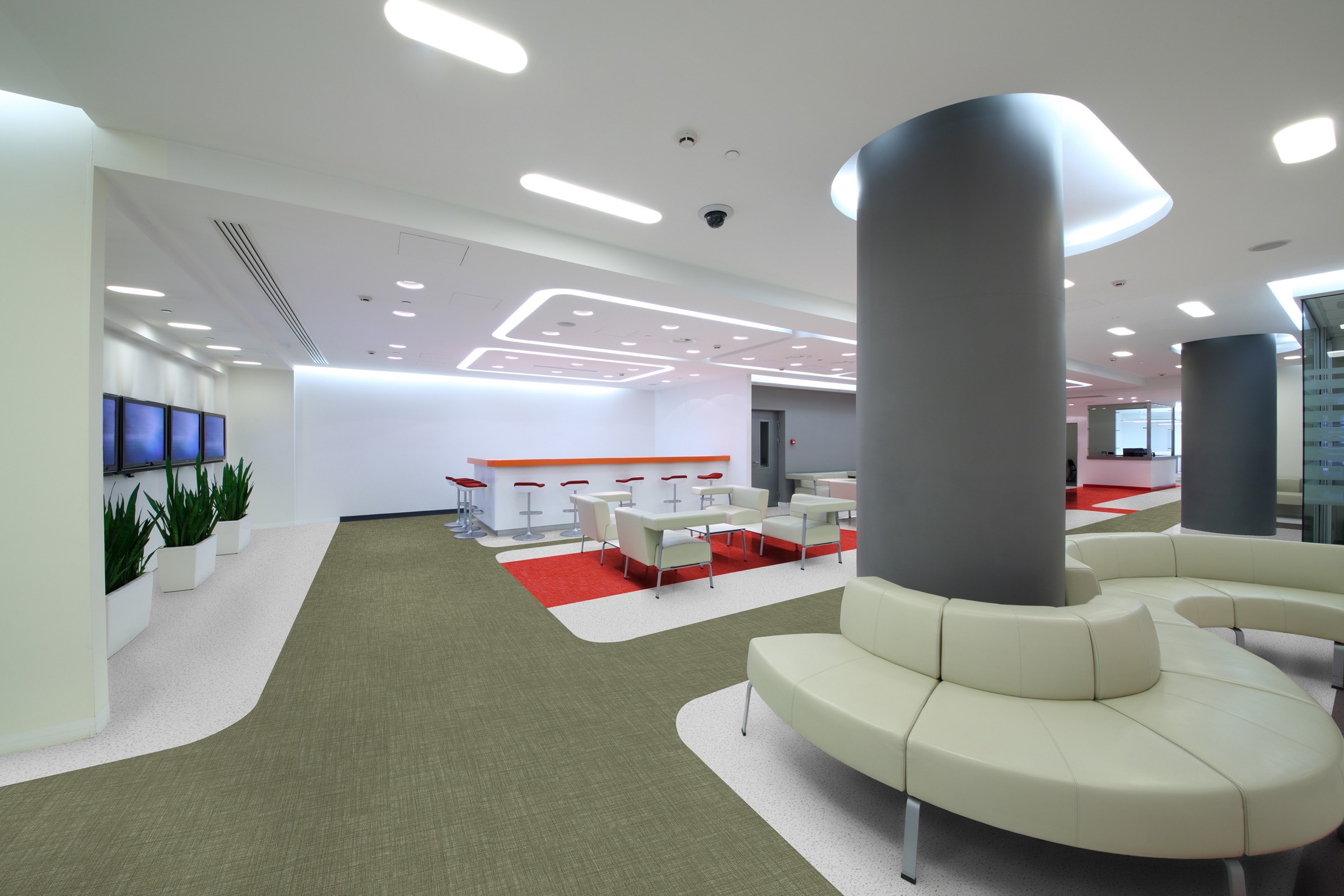

CT205_C08

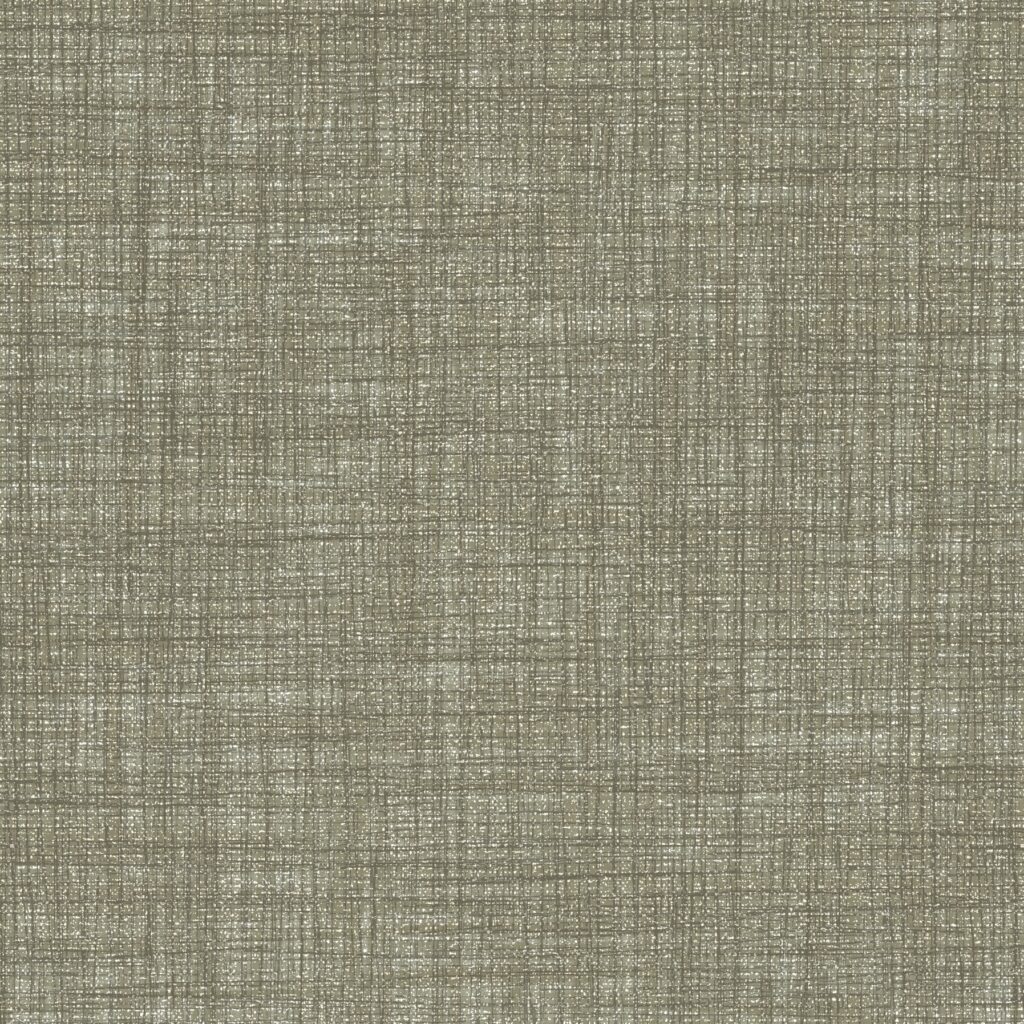

CT205_C08Pittsburgh

Larger View Room Scene Room Scene Room Scene

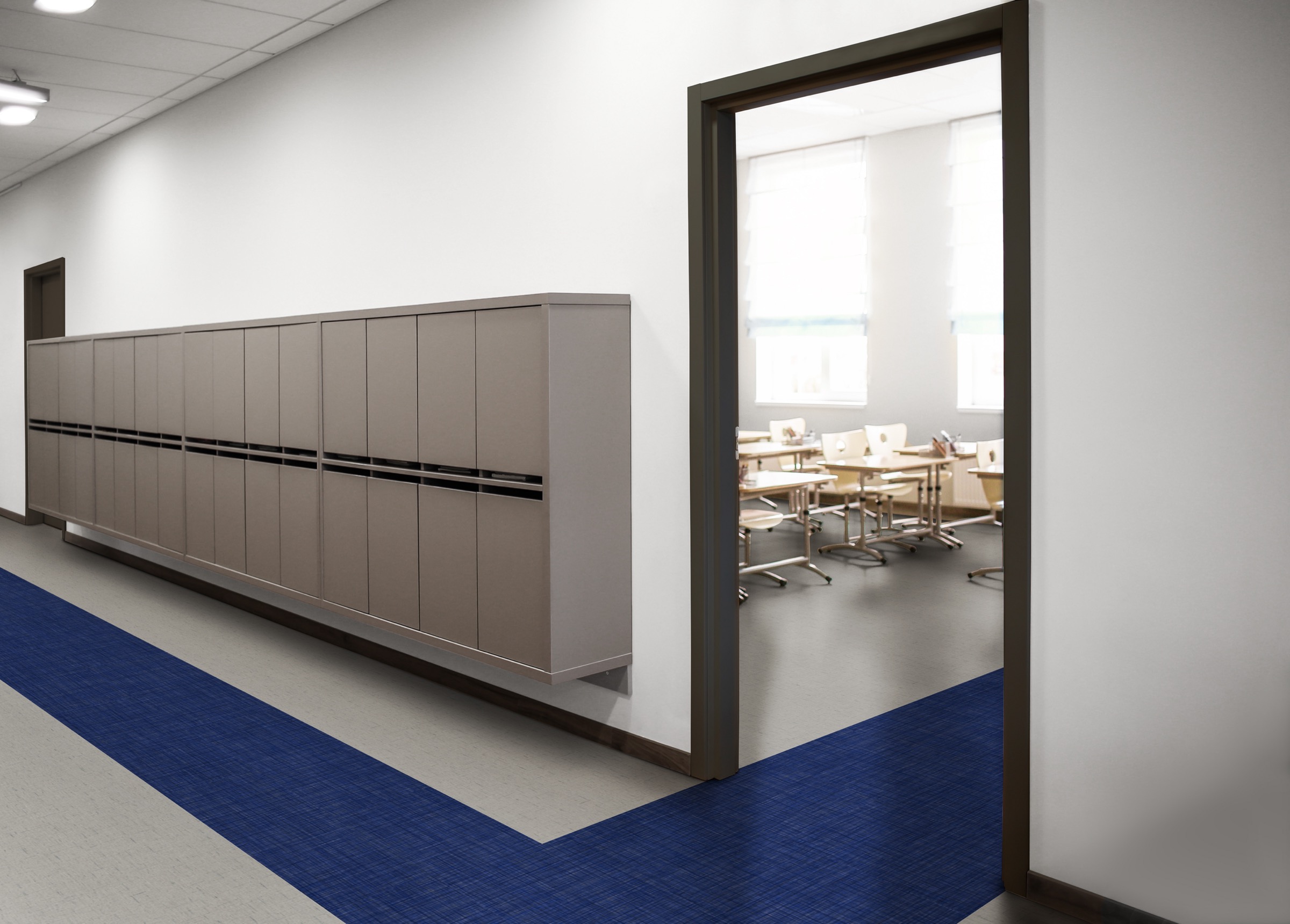

CT205_C28

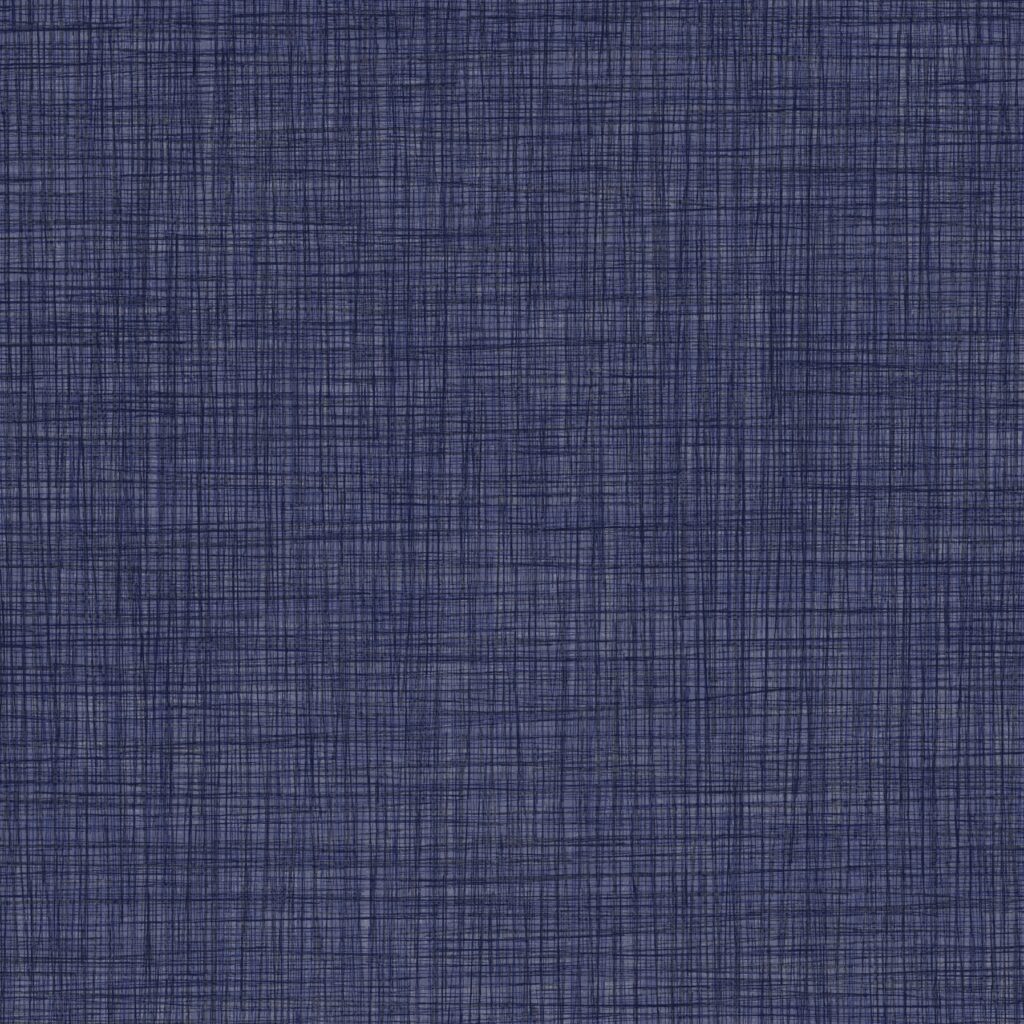

CT205_C28Atlanta

Larger View Room Scene Room Scene Room Scene Room Scene
CT205_C25

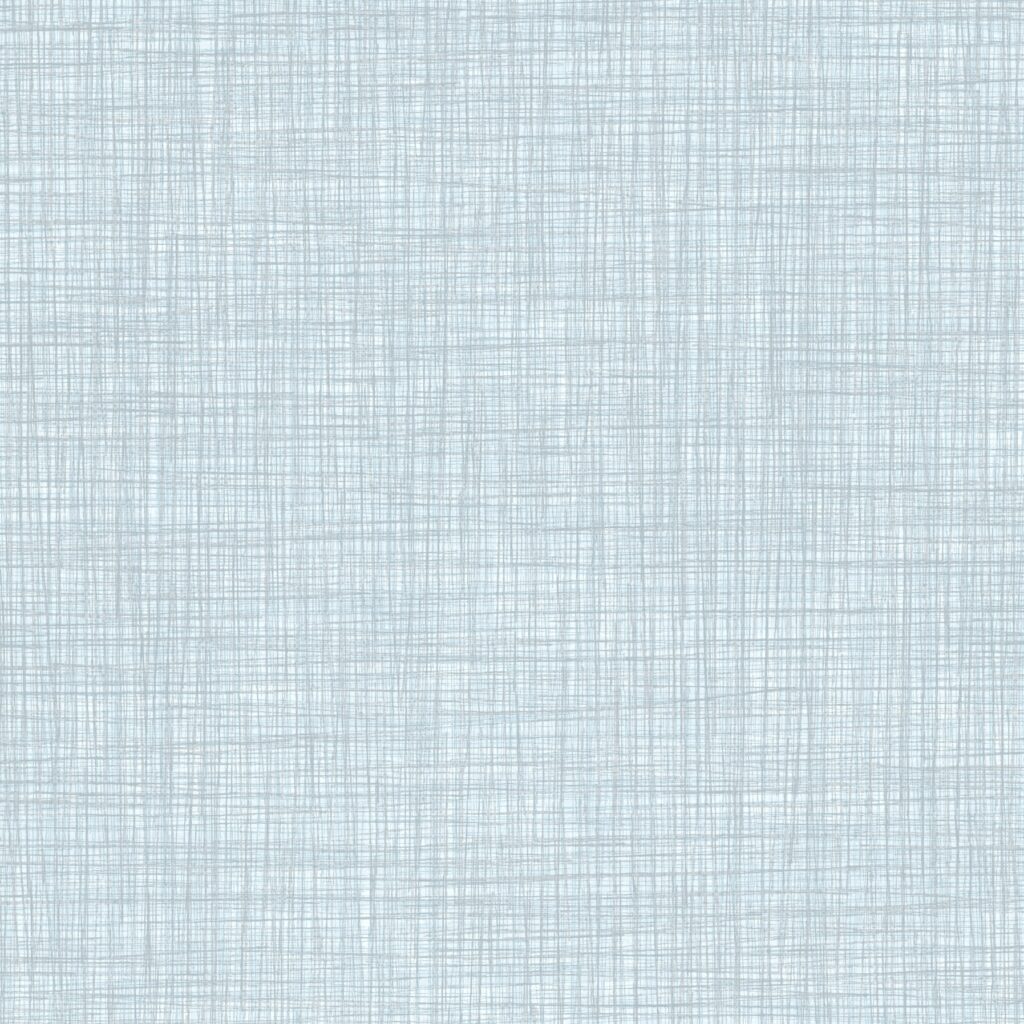

CT205_C25Charlotte

Larger View Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene
CT205_C23

CT205_C23Vegas

Larger View Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene
CT205_C27

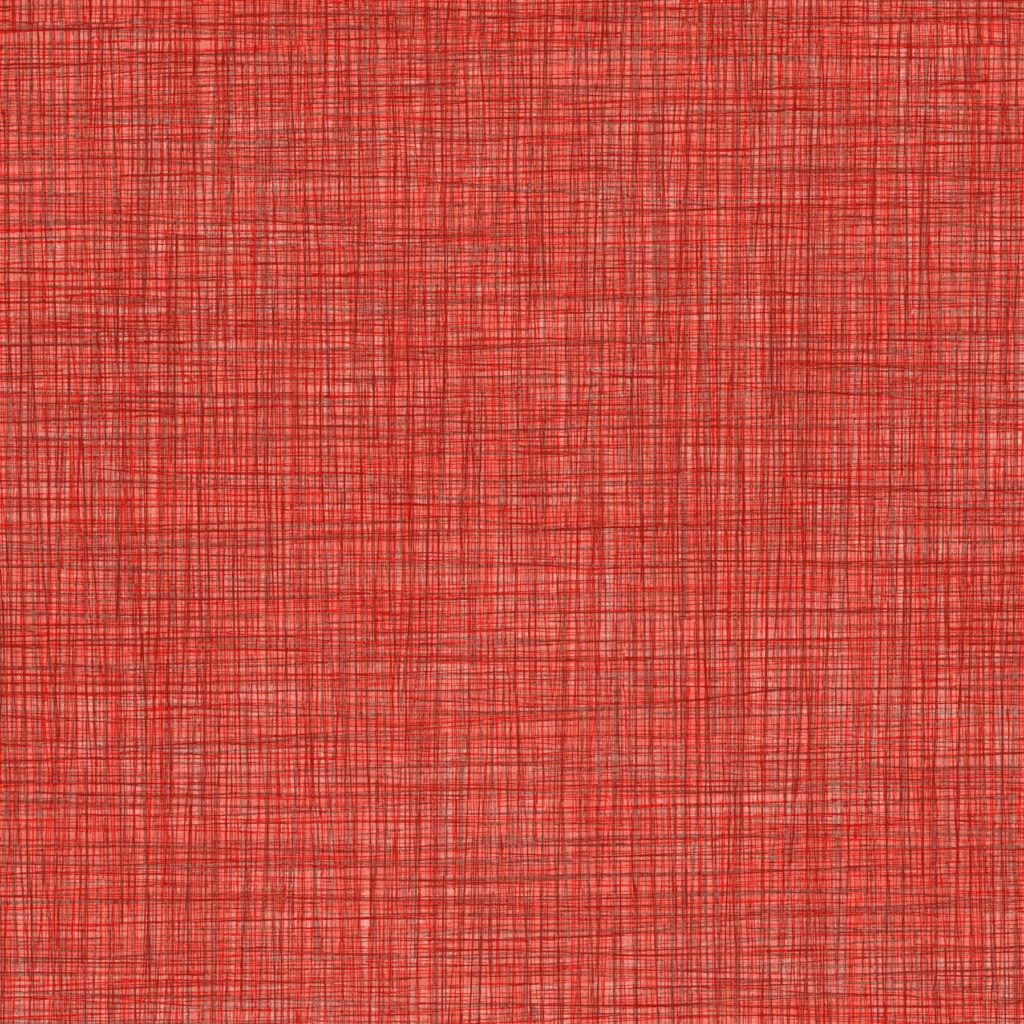

CT205_C27Cincinnati

Larger View Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene
CT205_24

CT205_C24Knoxville

Larger View Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene
CT205_C26

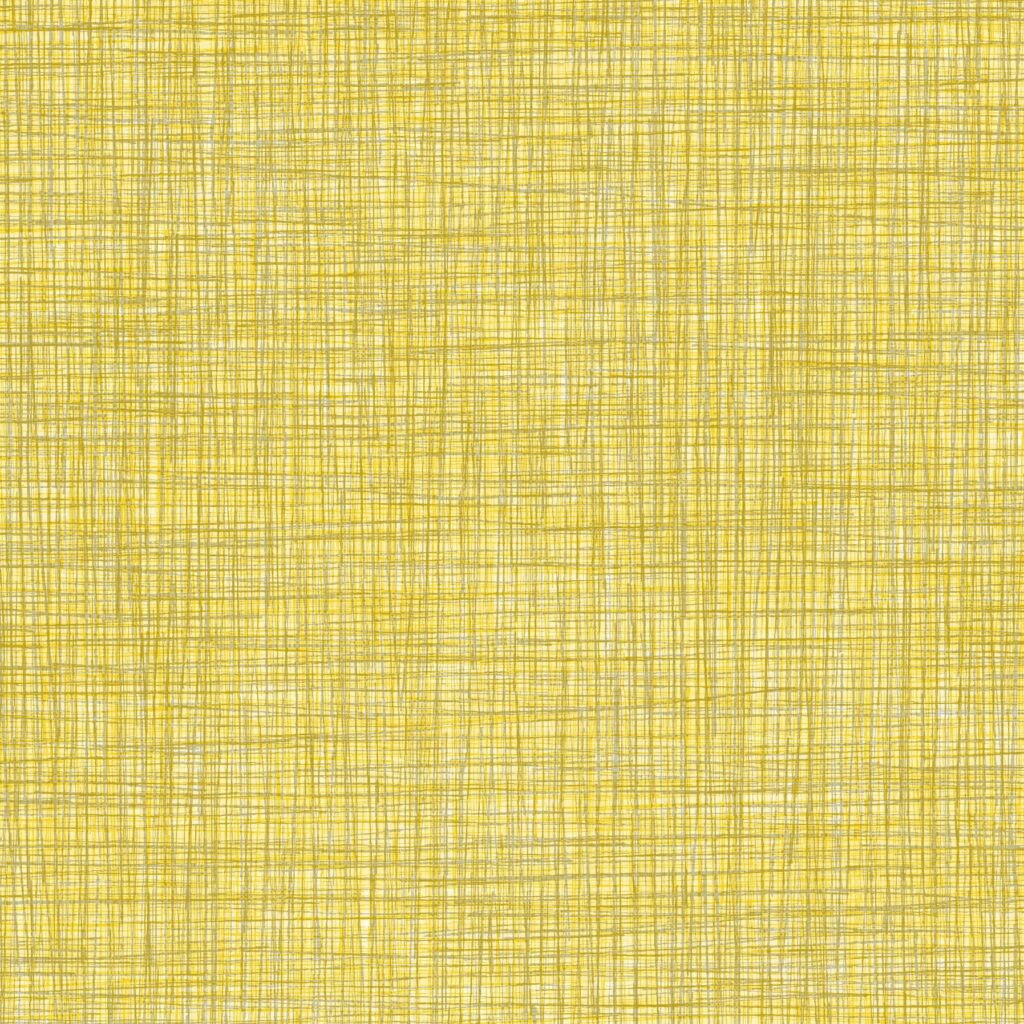

CT205_C26Orlando

Larger View Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene

CT205_C31Des Moines NEW 2020!

Larger View Room Scene Room Scene Room Scene Room Scene

CT205_C32San DiegoNEW 2020!

Larger View Room Scene Room Scene

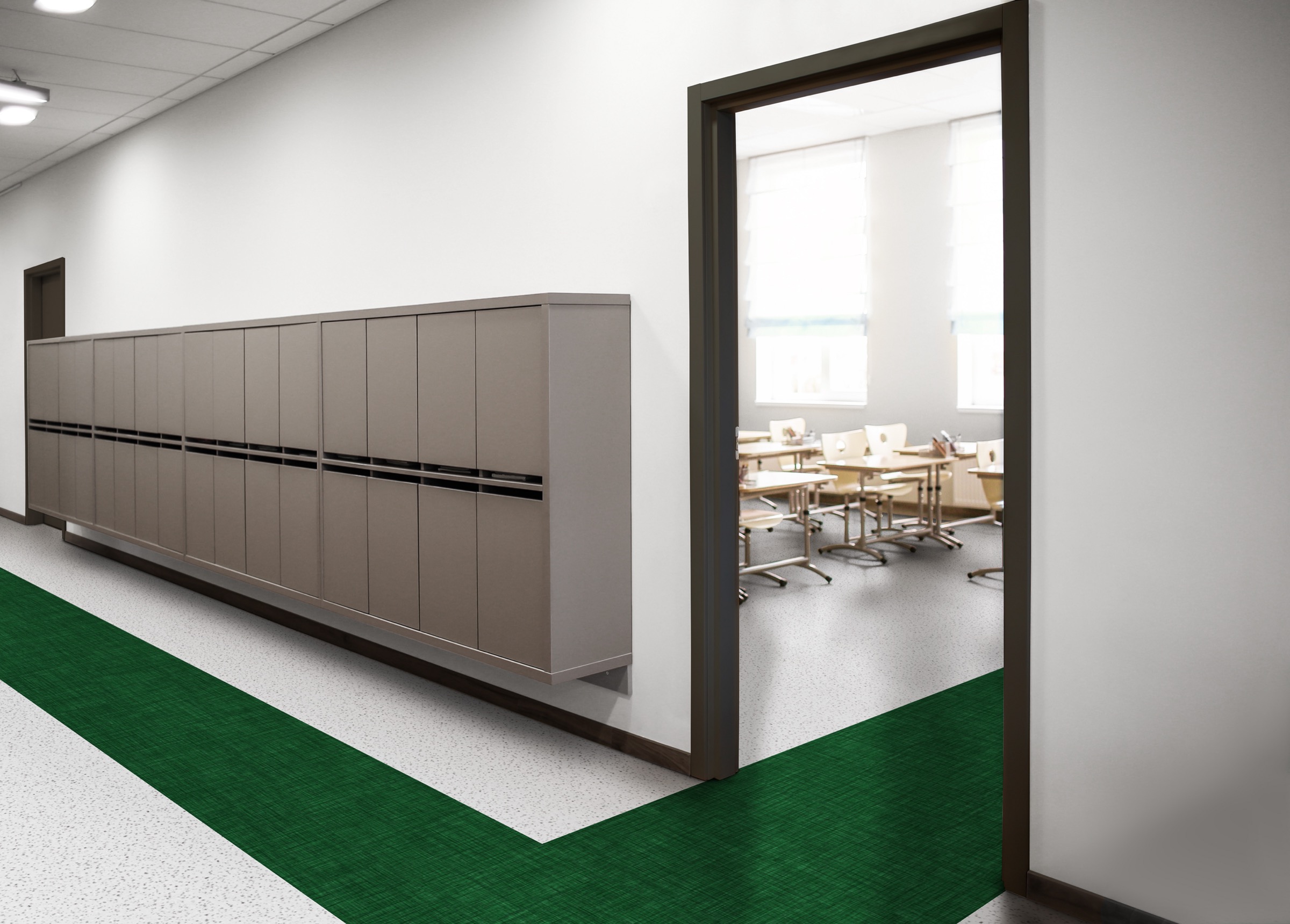

CT205_C33Green BayNEW 2020!

Larger View Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene

CT205_C34BoiseNEW 2020!

Larger View Room Scene Room Scene Room Scene

CT205_C35TulsaNEW 2020!

Larger View Room Scene Room Scene Room Scene Room Scene

CT205_C36Baton RougeNEW 2020!

Larger View Room Scene Room Scene Room Scene

CT205_C37MemphisNEW 2020!

Larger View Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene Room Scene

CT205_C38San AntonioNEW 2020!

Floor Score Icon EnviroSD Icon
