The Six Degrees of
Compass Plus 5mm™ New
Vinyl Flooring
Introducing our new Compass Plus 5 mm luxury vinyl tile and plank. Featuring eight beautiful, versatile colors, Compass Plus has all the features of your standard Compass product, but with added thickness to make it easier for transitioning to carpet tiles and other thicker gauge flooring products. Now you have even more choices to meet your flooring needs.
At Six Degrees, we are here to help, Compass™ Plus, a new direction for Compass Flooring.
- 8 designer-inspired colors that match our standard Compass and Impression product lines
- 5mm thickness allows for smooth transition to carpet tile and other hard surface flooring options
- An eco-friendly product made from locally sourced raw materials
- Readily available…made and inventoried in the USA!
Technical
Features
- 100% Recyclable
- Easy To Maintain
- Qualifies for LEED® Credits
- Ceramic-Reinforced UV-Cured Finish
- GREENGUARD Gold® Certification
- Extremely Durable
- Excellent Indentation Resistance
- Excellent Chemical Resistance
- Excellent Slip Resistance
- Enhanced with EnviroSD™ Antibacterial Agent
- Participates in mindful MATERIALS library
COMPASS™ PLANK SPECIFICATIONS
- Nominal Dimensions: 6″ x 48″ x 5 mm plank
- Finish: Embossed 28 mil CRU
- Quantity Per Carton: 10 Planks (6″ x 48″)
- Sq. Ft. Per Carton: 20 sq. ft./carton
COMPASS™ 18" x 18" TILE SPECIFICATIONS
- Nominal Dimensions: 18″ x18″ x 5 mm tile
- Finish: Embossed 28 mil CRU
- Quantity Per Carton: 16 Tiles (18″ x 18″)
- Sq. Ft. Per Carton: 22.50 sq. ft./carton
COMPASS™ 12" x 24" TILE SPECIFICATIONS
- Nominal Dimensions: 12″ x 24″ x 5 mm tile
- Finish: Embossed 28 mil CRU
- Quantity Per Carton: 10 Tiles (12″ x 24″)
- Sq. Ft. Per Carton: 20 sq. ft./carton
TEST INFORMATION
- LEED v2009 MR Credit 6 RRM Content: 12%
- LEED v2009 IEQ Credit 4.1: Qualifies
- LEED v2009 IEQ Credit 4.3: Qualifies
- ASTM F1700 – Solid Vinyl Tile: Class III, Type A & B
- ASTM E648 – Critical Radiant Flux: Class I,>.45 W/cm2
- ASTM E662 – Smoke Density: Passes, <450
- CAN/ULC-s102.2 – Surface Burning: 30 FSR, 250 SDC
- ASTM D2047 – Slip Resistance: >0.50
- ASTM F970 – Static Load Limit: Passes, >250 PSI
- ASTM F970 (Modified) – Max Weight: 2000 PSI
- ASTM F925 – Chemical Resistance: Excellent (chart available)
- ASTM F1515 – Light Stability: Passes
- ASTM F1914 Residual Indentation: Passes
- ASTM F2199 Dimensional Stability: Passes
- Acclimation Time: 48 Hours
- Storage & Acclimation Temperature: 65˚ – 85˚ F
Installation & Maintenance Products
High
Contrast Visuals
Many of the Compass visuals are high contrast visuals, and therefore not all colors and/or textures represented in the full design will be visible in the single swatch alone. Items marked with the symbol are considered high contrast. We suggest viewing the full size and room scene visuals of these designs.
Available in ImpressionTM LVT Tread/Riser
Available in RadiusTM Crossover Color

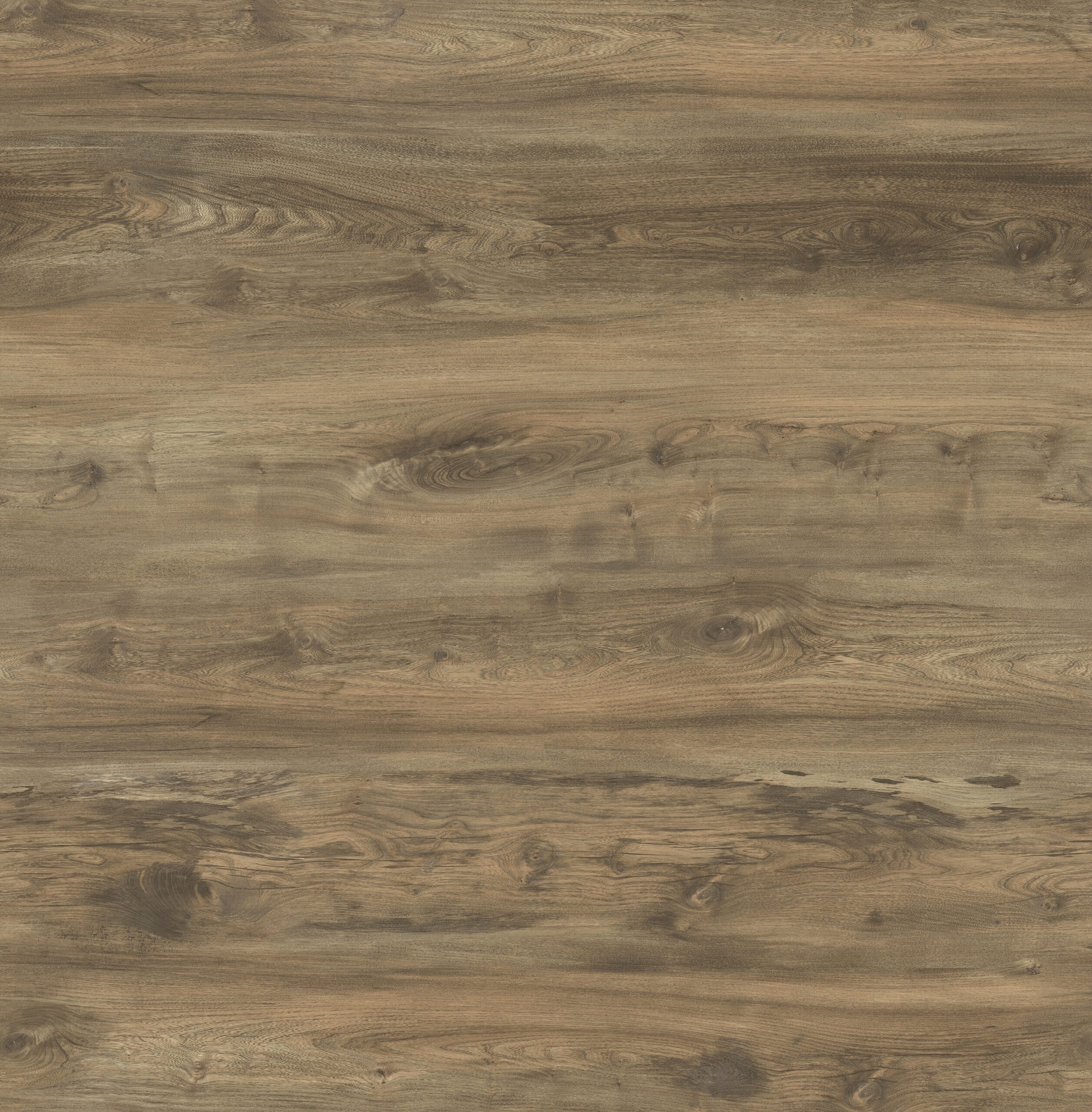

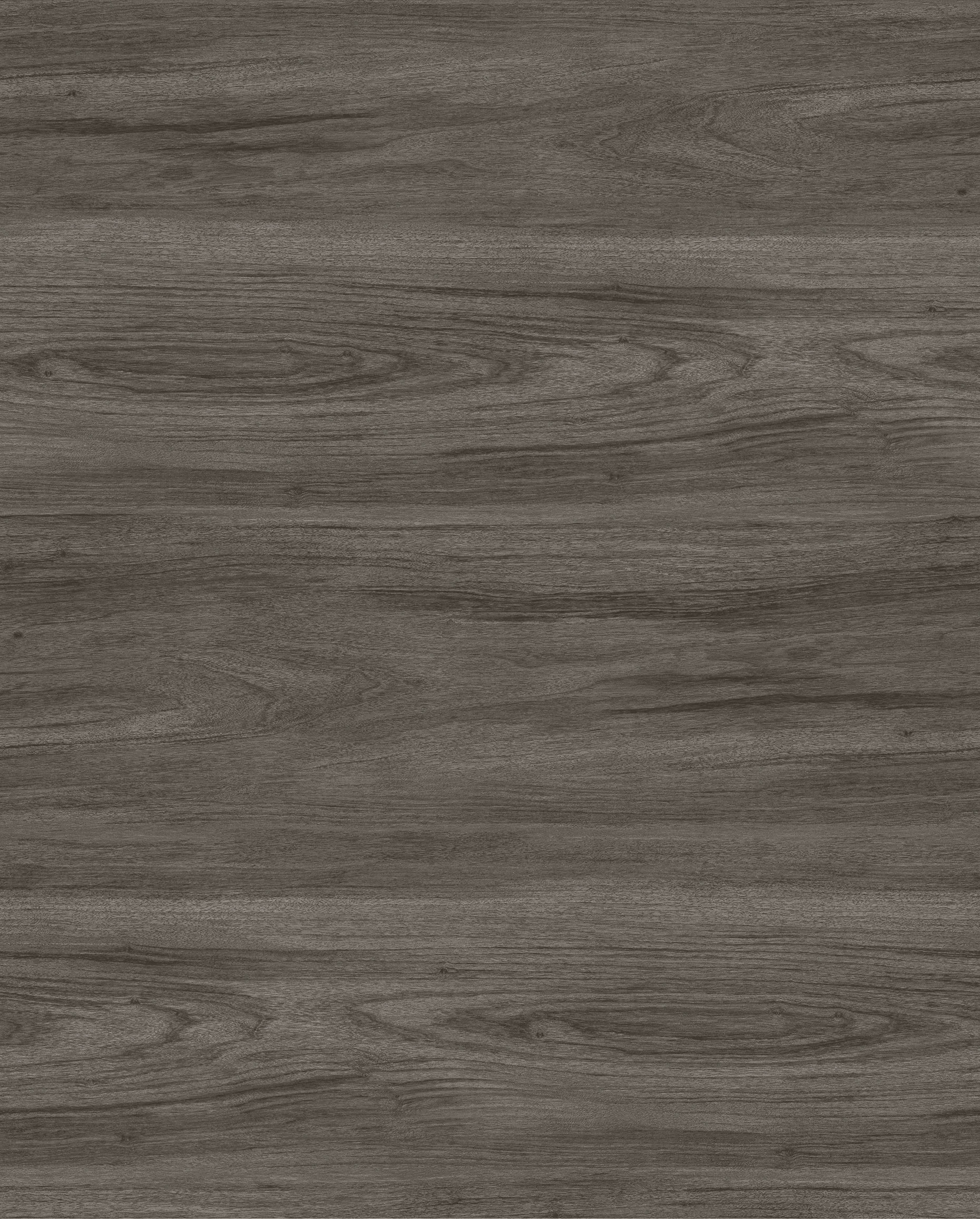

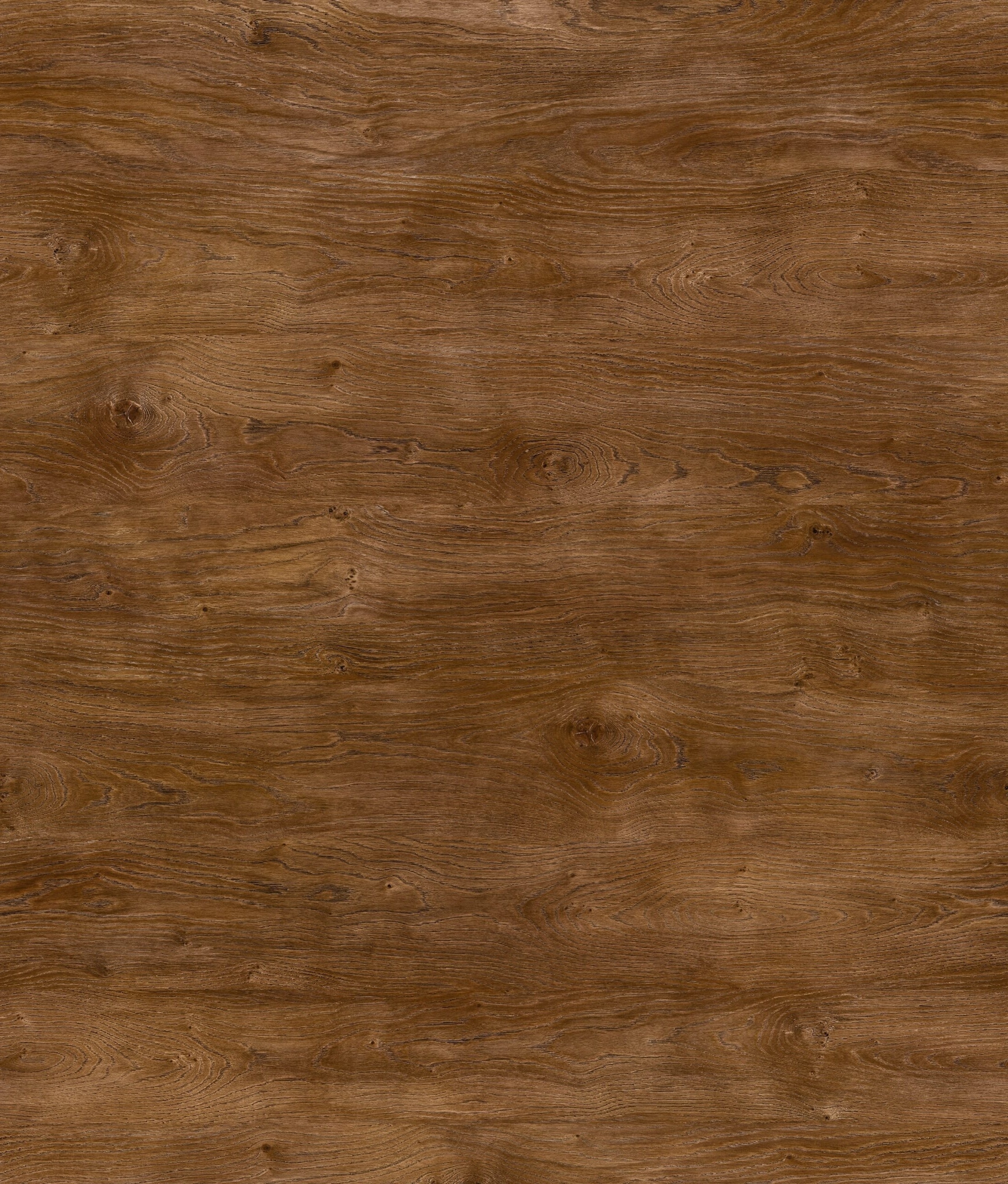

Compass™Planks
6″ × 48″
High Contrast
Visuals
Many of the Compass visuals are high contrast visuals, and therefore not all colors and/or textures represented in the full design will be visible in the single swatch alone. Items marked with the symbol are considered high contrast. We suggest viewing the full size and room scene visuals of these designs.
